Workflow Scheduling Problem

Introduction

We consider the following optimization problem (based on the formulation in [1]) : we have \(W(t)\) available workers or resources and \(N\) jobs that each job \(j\) requires \(T(j)\) time, and takes \(r(j)\) resources to be completed. Given a set of dependencies for each job, where we know which job depends on the completion of others before starting, we need to determine the order of job completion that minimizes the total execution time.

Assumptions

  • a job may occupy only a single time slot at most: \(\forall j \,\,\, T(j) = 1\)
  • given sufficient resources, jobs can be started in the same time slot
  • all resources are identical and the amount of available resources at a current time step is given by the number \(W(t)\)
  • jobs can only be started if all parent jobs are completed.

Possible extensions

  • Separate resources into multiple categories with jobs requiring different types
  • Jobs that take more than one operation

Mathematical Modeling

The input of the model is

We define a binary variable for the optimization problem: an \(t_{max}\times N\) matrix \(x\) such that \(\begin{aligned} x_{tj} = \begin{cases} 1 & \text{job } j \text{ is done on the } t_\text{th} \text{ time slot} \\ 0 & \text{else} \end{cases}\\ \end{aligned}\)

We have 3 constraints:

(1) All jobs must be completed exactly once: \(\forall j\in[1,N] \,\,\, \sum_t x_{tj}=1\)

(2) All jobs may use no more than the available resources: \(\forall t\in[0,t_{max}] \,\,\, \sum_j x_{tj} r_j \leq W_t\)

(3) All dependent jobs must have parent jobs completed before starting \(x_{t_1j_1} x_{t_2j_2} = 0 \,\,\, \forall j_1, t_1\leq t_2, j_2 \text{ depends on } j_1\)

The objective function to minimize is the total cost function: $$ \min_{x} \sum_{t} x_{tN}\cdot t $$ which favors schedules that are done early.

Defining the optimization model

from typing import List, Tuple, cast  # noqa

import matplotlib.pyplot as plt
import networkx as nx
import numpy as np  # noqa
import pandas as pd
import pyomo.environ as pyo
from IPython.display import Markdown, display
def define_workflow_problem(
    G, num_timeslots, available_capacities, work_loads
) -> pyo.ConcreteModel:
    model = pyo.ConcreteModel("task_scheduling")

    timeslots = range(num_timeslots)
    assert len(timeslots) == len(available_capacities)
    works = range(len(G.nodes))
    assert len(works) == len(work_loads)

    last_works = [node for node in G.nodes if G.out_degree(node) == 0]
    assert len(last_works) == 1
    last_work = last_works[0]
    # works with no dependancies
    root_works = [node for node in G.nodes if G.in_degree(node) == 0]

    model.x = pyo.Var(timeslots, works, domain=pyo.Binary)

    @model.Constraint(works)
    def all_works_are_done(model, i):  # constraint (1)
        return sum(model.x[t, i] for t in timeslots) == 1

    @model.Constraint(timeslots)
    def capacity_is_valid(model, t):  # constraint(2)
        return (
            sum(model.x[t, i] * work_loads[i] for i in works) <= available_capacities[t]
        )

    @model.Constraint(works, works, timeslots, timeslots)
    def works_done_by_their_order(model, i, j, t1, t2):  # constraint (3)
        if G.has_edge(i, j) and t1 >= t2:
            return model.x[t1, i] * model.x[t2, j] == 0
        return pyo.Constraint.Feasible

    # eliminate all timeslots that are not possible for the task in order to save qubits
    distances_from_ends = nx.floyd_warshall_numpy(G)
    distances_from_roots = nx.floyd_warshall_numpy(G.reverse())

    @model.Constraint(works, timeslots)
    def eliminating_rule(model, i, t):
        end_distance = int(np.min(distances_from_ends[i, last_works]))
        start_distance = int(np.min(distances_from_roots[i, root_works]))
        if (t < start_distance) or (t >= len(timeslots) - end_distance):
            return model.x[t, i] == 0
        return pyo.Constraint.Feasible

    # minimize the end time of the last work
    model.cost = pyo.Objective(
        expr=sum(model.x[t, last_work] * (t + 1) for t in timeslots), sense=pyo.minimize
    )

    return model

Visualization helper functions

import random


def plot_graph(solution=None, ax=None):
    if solution is not None:
        # determine how many tasks start in each timeslot
        num_tasks = [sum(solution[t]) for t in range(num_timeslots)]
        max_tasks = max(num_tasks)

        pos = {}

        # find all the tasks that start in particular start time
        for start in np.nonzero(solution.sum(axis=1))[0]:
            locations = solution[start].nonzero()[0]
            pos.update(
                {
                    n: (start, i + (max_tasks - num_tasks[start]) / 2)
                    for i, n in enumerate(locations)
                }
            )
    else:
        pos = {
            node: (order, random.random())
            for order, node in enumerate((nx.topological_sort(G)))
        }

    options = {
        "font_size": 12,
        "node_size": 1000,
        "node_color": "white",
        "edgecolors": "black",
        "linewidths": 3,
        "width": 3,
    }
    # G = nx.DiGraph(edges)
    nx.draw_networkx(G, pos, ax=ax, **options)

    # Set margins for the axes so that nodes aren't clipped
    if ax is None:
        ax = plt.subplot()
    ax.margins(0.20)
    if solution is not None:
        ax.set_title("Suggested sequence")
    ax.set_xlabel("Timeslot")


def plot_assignments(solution, ax=None):
    if ax is None:
        ax = plt.subplot()
    ax.pcolormesh(solution.T, edgecolors="w", linewidth=4, cmap="OrRd")
    ax.set_aspect(0.8)
    ax.set_xlabel("Timeslot")
    ax.set_ylabel("Task Number")
    ax.set_title("Task assignment")


def plot_resource_graph(solution=None, ax=None):
    if ax is None:
        fig, ax = plt.subplots()

    x_pos = np.arange(len(capacities))
    if solution is not None:
        ax.set_title("Utilization")
        num_resources = [np.dot(solution[t], workloads) for t in range(num_timeslots)]
        ax.bar(x_pos + 0.1, num_resources, label="used resources", color="r", width=0.5)
    ax.bar(x_pos, capacities, label="available_resources", color="g", width=0.5)
    ax.set_xticks(x_pos)
    ax.legend()
    ax.set_xlabel("Timeslot")
    ax.set_ylabel("Resources")


def plot_workloads(ax=None):
    if ax is None:
        fig, ax = plt.subplots()
    ax.set_title("Work Loads")
    x_pos = np.arange(len(workloads))
    ax.bar(x_pos, workloads, width=0.5)
    ax.set_xticks(x_pos)
    ax.set_xlabel("Jobs")
    ax.set_ylabel("Required Resources")


def is_printable_solution(solution):
    return np.array_equal(solution.sum(axis=0), np.ones(solution.shape[1]))


def plot_workflow(solution=None):
    if solution is None:
        fig, axes = plt.subplots(1, 3, figsize=(18, 5))
        plot_resource_graph(ax=axes[0])
        plot_graph(ax=axes[1])
        plot_workloads(ax=axes[2])

    else:
        if is_printable_solution(solution):
            fig, axes = plt.subplots(2, 2, figsize=(12, 10))
            plot_resource_graph(solution, axes[0, 0])
            plot_workloads(axes[0, 1])
            plot_assignments(solution, axes[1, 1])
            plot_graph(solution, axes[1, 0])
        else:
            # illegal solution
            fig, axes = plt.subplots(1, 3, figsize=(18, 5))
            plot_resource_graph(solution, axes[0])
            plot_workloads(axes[1])
            plot_assignments(solution, axes[2])

Initialize specific problem instance

We create a workflow dependecies graph. For the small instance, all timeslots capacities and work loads are equal to each other.

def small_example():
    G = nx.DiGraph()

    nodes = range(4)
    edges = [(0, 1), (1, 3), (2, 3)]
    G.add_nodes_from(nodes)
    G.add_edges_from(edges)
    num_timeslots = len(G.nodes) - 1
    capacities = 3 * np.ones(num_timeslots)
    workloads = np.ones(len(nodes))

    return (
        define_workflow_problem(
            G, num_timeslots, available_capacities=capacities, work_loads=workloads
        ),
        G,
        num_timeslots,
        capacities,
        workloads,
    )


def large_example():
    G = nx.DiGraph()

    nodes = range(6)
    edges = [(0, 1), (0, 3), (0, 2), (2, 4), (3, 4), (1, 5), (4, 5)]
    workloads = [1, 3, 2, 2, 1, 1]
    capacities = [1, 3, 4, 3, 1]
    G.add_nodes_from(nodes)
    G.add_edges_from(edges)

    num_timeslots = len(capacities)

    return (
        define_workflow_problem(
            G, num_timeslots, available_capacities=capacities, work_loads=workloads
        ),
        G,
        num_timeslots,
        capacities,
        workloads,
    )
tasks_model, G, num_timeslots, capacities, workloads = small_example()
plot_workflow()

png

The resulting Pyomo model

tasks_model.pprint()
13 Set Declarations
    all_works_are_done_index : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    4 : {0, 1, 2, 3}
    capacity_is_valid_index : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    3 : {0, 1, 2}
    eliminating_rule_index : Size=1, Index=None, Ordered=True
        Key  : Dimen : Domain                                            : Size : Members
        None :     2 : eliminating_rule_index_0*eliminating_rule_index_1 :   12 : {(0, 0), (0, 1), (0, 2), (1, 0), (1, 1), (1, 2), (2, 0), (2, 1), (2, 2), (3, 0), (3, 1), (3, 2)}
    eliminating_rule_index_0 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    4 : {0, 1, 2, 3}
    eliminating_rule_index_1 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    3 : {0, 1, 2}
    works_done_by_their_order_index : Size=1, Index=None, Ordered=True
        Key  : Dimen : Domain                                                                                                                                  : Size : Members
        None :     4 : works_done_by_their_order_index_0*works_done_by_their_order_index_1*works_done_by_their_order_index_2*works_done_by_their_order_index_3 :  144 : {(0, 0, 0, 0), (0, 0, 0, 1), (0, 0, 0, 2), (0, 0, 1, 0), (0, 0, 1, 1), (0, 0, 1, 2), (0, 0, 2, 0), (0, 0, 2, 1), (0, 0, 2, 2), (0, 1, 0, 0), (0, 1, 0, 1), (0, 1, 0, 2), (0, 1, 1, 0), (0, 1, 1, 1), (0, 1, 1, 2), (0, 1, 2, 0), (0, 1, 2, 1), (0, 1, 2, 2), (0, 2, 0, 0), (0, 2, 0, 1), (0, 2, 0, 2), (0, 2, 1, 0), (0, 2, 1, 1), (0, 2, 1, 2), (0, 2, 2, 0), (0, 2, 2, 1), (0, 2, 2, 2), (0, 3, 0, 0), (0, 3, 0, 1), (0, 3, 0, 2), (0, 3, 1, 0), (0, 3, 1, 1), (0, 3, 1, 2), (0, 3, 2, 0), (0, 3, 2, 1), (0, 3, 2, 2), (1, 0, 0, 0), (1, 0, 0, 1), (1, 0, 0, 2), (1, 0, 1, 0), (1, 0, 1, 1), (1, 0, 1, 2), (1, 0, 2, 0), (1, 0, 2, 1), (1, 0, 2, 2), (1, 1, 0, 0), (1, 1, 0, 1), (1, 1, 0, 2), (1, 1, 1, 0), (1, 1, 1, 1), (1, 1, 1, 2), (1, 1, 2, 0), (1, 1, 2, 1), (1, 1, 2, 2), (1, 2, 0, 0), (1, 2, 0, 1), (1, 2, 0, 2), (1, 2, 1, 0), (1, 2, 1, 1), (1, 2, 1, 2), (1, 2, 2, 0), (1, 2, 2, 1), (1, 2, 2, 2), (1, 3, 0, 0), (1, 3, 0, 1), (1, 3, 0, 2), (1, 3, 1, 0), (1, 3, 1, 1), (1, 3, 1, 2), (1, 3, 2, 0), (1, 3, 2, 1), (1, 3, 2, 2), (2, 0, 0, 0), (2, 0, 0, 1), (2, 0, 0, 2), (2, 0, 1, 0), (2, 0, 1, 1), (2, 0, 1, 2), (2, 0, 2, 0), (2, 0, 2, 1), (2, 0, 2, 2), (2, 1, 0, 0), (2, 1, 0, 1), (2, 1, 0, 2), (2, 1, 1, 0), (2, 1, 1, 1), (2, 1, 1, 2), (2, 1, 2, 0), (2, 1, 2, 1), (2, 1, 2, 2), (2, 2, 0, 0), (2, 2, 0, 1), (2, 2, 0, 2), (2, 2, 1, 0), (2, 2, 1, 1), (2, 2, 1, 2), (2, 2, 2, 0), (2, 2, 2, 1), (2, 2, 2, 2), (2, 3, 0, 0), (2, 3, 0, 1), (2, 3, 0, 2), (2, 3, 1, 0), (2, 3, 1, 1), (2, 3, 1, 2), (2, 3, 2, 0), (2, 3, 2, 1), (2, 3, 2, 2), (3, 0, 0, 0), (3, 0, 0, 1), (3, 0, 0, 2), (3, 0, 1, 0), (3, 0, 1, 1), (3, 0, 1, 2), (3, 0, 2, 0), (3, 0, 2, 1), (3, 0, 2, 2), (3, 1, 0, 0), (3, 1, 0, 1), (3, 1, 0, 2), (3, 1, 1, 0), (3, 1, 1, 1), (3, 1, 1, 2), (3, 1, 2, 0), (3, 1, 2, 1), (3, 1, 2, 2), (3, 2, 0, 0), (3, 2, 0, 1), (3, 2, 0, 2), (3, 2, 1, 0), (3, 2, 1, 1), (3, 2, 1, 2), (3, 2, 2, 0), (3, 2, 2, 1), (3, 2, 2, 2), (3, 3, 0, 0), (3, 3, 0, 1), (3, 3, 0, 2), (3, 3, 1, 0), (3, 3, 1, 1), (3, 3, 1, 2), (3, 3, 2, 0), (3, 3, 2, 1), (3, 3, 2, 2)}
    works_done_by_their_order_index_0 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    4 : {0, 1, 2, 3}
    works_done_by_their_order_index_1 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    4 : {0, 1, 2, 3}
    works_done_by_their_order_index_2 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    3 : {0, 1, 2}
    works_done_by_their_order_index_3 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    3 : {0, 1, 2}
    x_index : Size=1, Index=None, Ordered=True
        Key  : Dimen : Domain              : Size : Members
        None :     2 : x_index_0*x_index_1 :   12 : {(0, 0), (0, 1), (0, 2), (0, 3), (1, 0), (1, 1), (1, 2), (1, 3), (2, 0), (2, 1), (2, 2), (2, 3)}
    x_index_0 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    3 : {0, 1, 2}
    x_index_1 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    4 : {0, 1, 2, 3}

1 Var Declarations
    x : Size=12, Index=x_index
        Key    : Lower : Value : Upper : Fixed : Stale : Domain
        (0, 0) :     0 :  None :     1 : False :  True : Binary
        (0, 1) :     0 :  None :     1 : False :  True : Binary
        (0, 2) :     0 :  None :     1 : False :  True : Binary
        (0, 3) :     0 :  None :     1 : False :  True : Binary
        (1, 0) :     0 :  None :     1 : False :  True : Binary
        (1, 1) :     0 :  None :     1 : False :  True : Binary
        (1, 2) :     0 :  None :     1 : False :  True : Binary
        (1, 3) :     0 :  None :     1 : False :  True : Binary
        (2, 0) :     0 :  None :     1 : False :  True : Binary
        (2, 1) :     0 :  None :     1 : False :  True : Binary
        (2, 2) :     0 :  None :     1 : False :  True : Binary
        (2, 3) :     0 :  None :     1 : False :  True : Binary

1 Objective Declarations
    cost : Size=1, Index=None, Active=True
        Key  : Active : Sense    : Expression
        None :   True : minimize : x[0,3] + 2*x[1,3] + 3*x[2,3]

4 Constraint Declarations
    all_works_are_done : Size=4, Index=all_works_are_done_index, Active=True
        Key : Lower : Body                     : Upper : Active
          0 :   1.0 : x[0,0] + x[1,0] + x[2,0] :   1.0 :   True
          1 :   1.0 : x[0,1] + x[1,1] + x[2,1] :   1.0 :   True
          2 :   1.0 : x[0,2] + x[1,2] + x[2,2] :   1.0 :   True
          3 :   1.0 : x[0,3] + x[1,3] + x[2,3] :   1.0 :   True
    capacity_is_valid : Size=3, Index=capacity_is_valid_index, Active=True
        Key : Lower : Body                              : Upper : Active
          0 :  -Inf : x[0,0] + x[0,1] + x[0,2] + x[0,3] :   3.0 :   True
          1 :  -Inf : x[1,0] + x[1,1] + x[1,2] + x[1,3] :   3.0 :   True
          2 :  -Inf : x[2,0] + x[2,1] + x[2,2] + x[2,3] :   3.0 :   True
    eliminating_rule : Size=6, Index=eliminating_rule_index, Active=True
        Key    : Lower : Body   : Upper : Active
        (0, 1) :   0.0 : x[1,0] :   0.0 :   True
        (0, 2) :   0.0 : x[2,0] :   0.0 :   True
        (1, 0) :   0.0 : x[0,1] :   0.0 :   True
        (1, 2) :   0.0 : x[2,1] :   0.0 :   True
        (2, 2) :   0.0 : x[2,2] :   0.0 :   True
        (3, 0) :   0.0 : x[0,3] :   0.0 :   True
    works_done_by_their_order : Size=18, Index=works_done_by_their_order_index, Active=True
        Key          : Lower : Body          : Upper : Active
        (0, 1, 0, 0) :   0.0 : x[0,0]*x[0,1] :   0.0 :   True
        (0, 1, 1, 0) :   0.0 : x[1,0]*x[0,1] :   0.0 :   True
        (0, 1, 1, 1) :   0.0 : x[1,0]*x[1,1] :   0.0 :   True
        (0, 1, 2, 0) :   0.0 : x[2,0]*x[0,1] :   0.0 :   True
        (0, 1, 2, 1) :   0.0 : x[2,0]*x[1,1] :   0.0 :   True
        (0, 1, 2, 2) :   0.0 : x[2,0]*x[2,1] :   0.0 :   True
        (1, 3, 0, 0) :   0.0 : x[0,1]*x[0,3] :   0.0 :   True
        (1, 3, 1, 0) :   0.0 : x[1,1]*x[0,3] :   0.0 :   True
        (1, 3, 1, 1) :   0.0 : x[1,1]*x[1,3] :   0.0 :   True
        (1, 3, 2, 0) :   0.0 : x[2,1]*x[0,3] :   0.0 :   True
        (1, 3, 2, 1) :   0.0 : x[2,1]*x[1,3] :   0.0 :   True
        (1, 3, 2, 2) :   0.0 : x[2,1]*x[2,3] :   0.0 :   True
        (2, 3, 0, 0) :   0.0 : x[0,2]*x[0,3] :   0.0 :   True
        (2, 3, 1, 0) :   0.0 : x[1,2]*x[0,3] :   0.0 :   True
        (2, 3, 1, 1) :   0.0 : x[1,2]*x[1,3] :   0.0 :   True
        (2, 3, 2, 0) :   0.0 : x[2,2]*x[0,3] :   0.0 :   True
        (2, 3, 2, 1) :   0.0 : x[2,2]*x[1,3] :   0.0 :   True
        (2, 3, 2, 2) :   0.0 : x[2,2]*x[2,3] :   0.0 :   True

19 Declarations: x_index_0 x_index_1 x_index x all_works_are_done_index all_works_are_done capacity_is_valid_index capacity_is_valid works_done_by_their_order_index_0 works_done_by_their_order_index_1 works_done_by_their_order_index_2 works_done_by_their_order_index_3 works_done_by_their_order_index works_done_by_their_order eliminating_rule_index_0 eliminating_rule_index_1 eliminating_rule_index eliminating_rule cost

Solve the optimization model with hybrid classical/quantum QAOA (Quantum Approximate Optimization Algorithm)

Setting Up the Classiq Problem Instance

In order to solve the Pyomo model defined above, we use the Classiq combinatorial optimization engine. For the quantum part of the QAOA algorithm (QAOAConfig) - define the number of repetitions (num_layers):

from classiq import construct_combinatorial_optimization_model
from classiq.applications.combinatorial_optimization import OptimizerConfig, QAOAConfig

qaoa_config = QAOAConfig(num_layers=8, penalty_energy=20)

For the classical optimization part of the QAOA algorithm we define the maximum number of classical iterations (max_iteration) and the \(\alpha\)-parameter (alpha_cvar) for running CVaR-QAOA, an improved variation of the QAOA algorithm [3]:

optimizer_config = OptimizerConfig(max_iteration=20.0, alpha_cvar=0.3)

Lastly, we load the model, based on the problem and algorithm parameters, which we can use to solve the problem:

qmod = construct_combinatorial_optimization_model(
    pyo_model=tasks_model,
    qaoa_config=qaoa_config,
    optimizer_config=optimizer_config,
)

We also set the quantum backend we want to execute on:

from classiq import set_execution_preferences
from classiq.execution import ClassiqBackendPreferences, ExecutionPreferences

backend_preferences = ExecutionPreferences(
    backend_preferences=ClassiqBackendPreferences(backend_name="aer_simulator")
)

qmod = set_execution_preferences(qmod, backend_preferences)
from classiq import write_qmod

write_qmod(qmod, "task_scheduling_problem")

Synthesizing the QAOA Circuit and Solving the Problem

We can now synthesize and view the QAOA circuit (ansatz) used to solve the optimization problem:

from classiq import show, synthesize

qprog = synthesize(qmod)
show(qprog)
Opening: https://platform.classiq.io/circuit/f5e85b37-3f5f-45a4-851e-c3690030a4cd?version=0.41.0.dev39%2B79c8fd0855

We now solve the problem by calling the execute function on the quantum program we have generated:

from classiq import execute

res = execute(qprog).result()

Analyzing the results

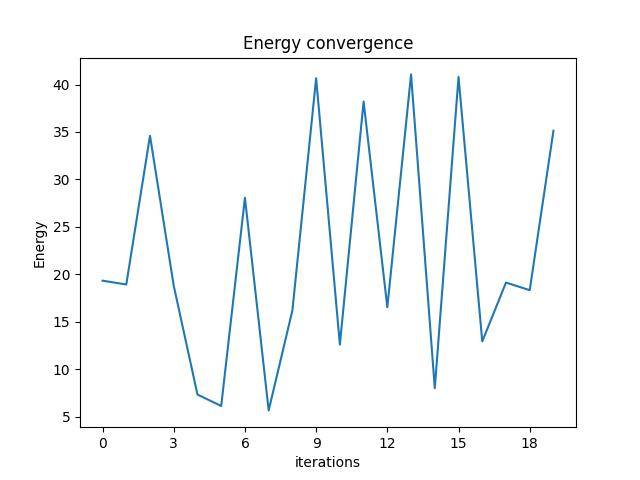

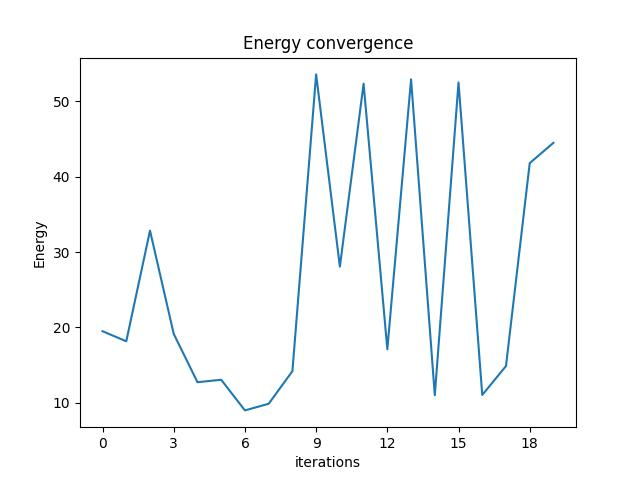

We can check the convergence of the run:

from classiq.execution import VQESolverResult

vqe_result = res[0].value
vqe_result.convergence_graph

png

And print the optimization results:

import pandas as pd

from classiq.applications.combinatorial_optimization import (
    get_optimization_solution_from_pyo,
)

solution = get_optimization_solution_from_pyo(
    tasks_model, vqe_result=vqe_result, penalty_energy=qaoa_config.penalty_energy
)
optimization_result = pd.DataFrame.from_records(solution)
optimization_result.sort_values(by="cost", ascending=True).head(5)
probability cost solution count
0 0.069 3.0 [0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0] 69
1 0.068 3.0 [1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0] 68
3 0.064 3.0 [0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0] 64
4 0.059 3.0 [1, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0] 59
39 0.003 23.0 [0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0] 3
idx = optimization_result.cost.idxmin()
print(
    "x =", optimization_result.solution[idx], ", cost =", optimization_result.cost[idx]
)
x = [0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0] , cost = 3.0

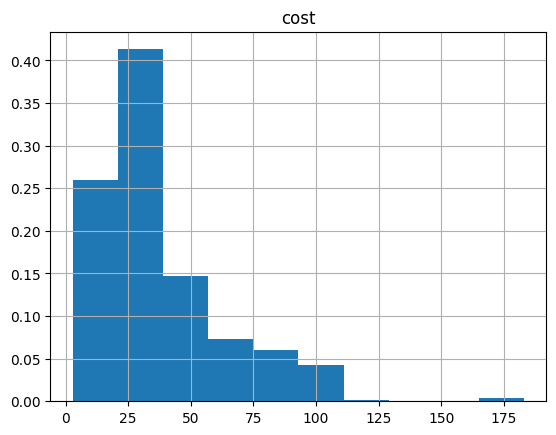

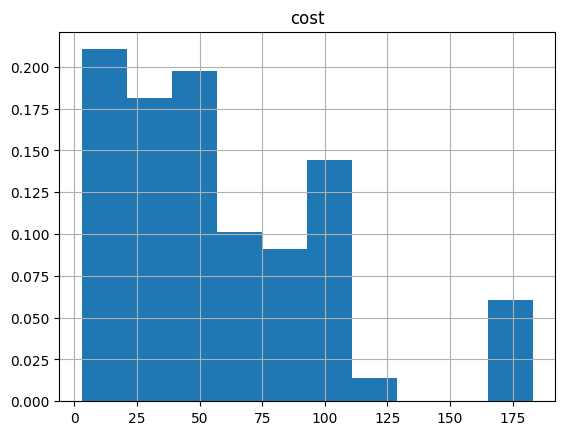

And the histogram:

optimization_result.hist("cost", weights=optimization_result["probability"])
array([[<Axes: title={'center': 'cost'}>]], dtype=object)

png

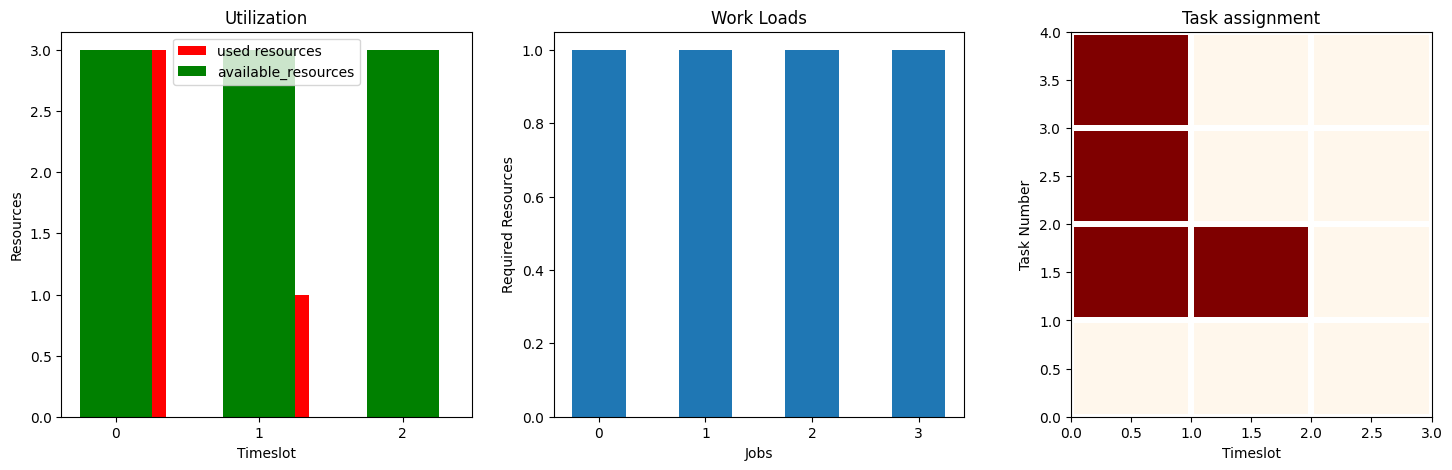

Best solution

qaoa_solution = np.array(
    optimization_result.solution[optimization_result.cost.idxmin()]
).reshape(num_timeslots, len(G.nodes))
plot_workflow(qaoa_solution)

png

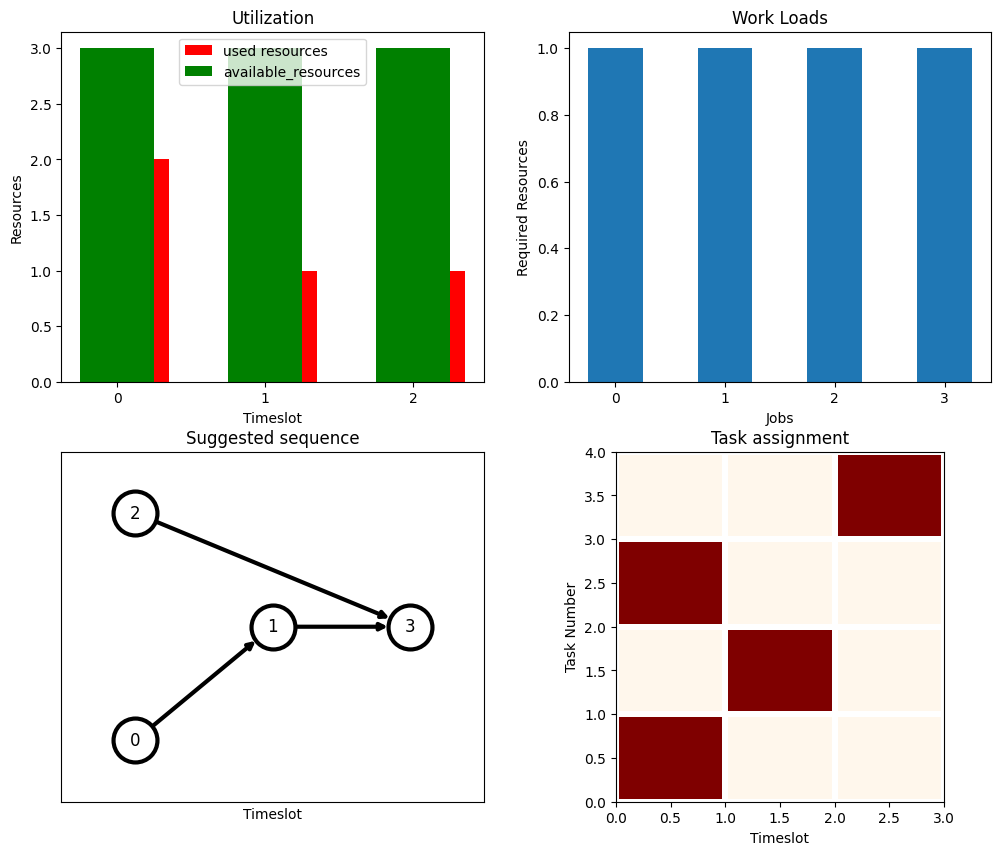

Compare to a classical optimizer result

from pyomo.opt import SolverFactory

solver = SolverFactory("couenne")
solver.solve(tasks_model)

tasks_model.display()
Model task_scheduling

  Variables:
    x : Size=12, Index=x_index
        Key    : Lower : Value : Upper : Fixed : Stale : Domain
        (0, 0) :     0 :   1.0 :     1 : False : False : Binary
        (0, 1) :     0 :   0.0 :     1 : False : False : Binary
        (0, 2) :     0 :   1.0 :     1 : False : False : Binary
        (0, 3) :     0 :   0.0 :     1 : False : False : Binary
        (1, 0) :     0 :   0.0 :     1 : False : False : Binary
        (1, 1) :     0 :   1.0 :     1 : False : False : Binary
        (1, 2) :     0 :   0.0 :     1 : False : False : Binary
        (1, 3) :     0 :   0.0 :     1 : False : False : Binary
        (2, 0) :     0 :   0.0 :     1 : False : False : Binary
        (2, 1) :     0 :   0.0 :     1 : False : False : Binary
        (2, 2) :     0 :   0.0 :     1 : False : False : Binary
        (2, 3) :     0 :   1.0 :     1 : False : False : Binary

  Objectives:
    cost : Size=1, Index=None, Active=True
        Key  : Active : Value
        None :   True :   3.0

  Constraints:
    all_works_are_done : Size=4
        Key : Lower : Body : Upper
          0 :   1.0 :  1.0 :   1.0
          1 :   1.0 :  1.0 :   1.0
          2 :   1.0 :  1.0 :   1.0
          3 :   1.0 :  1.0 :   1.0
    capacity_is_valid : Size=3
        Key : Lower : Body : Upper
          0 :  None :  2.0 :   3.0
          1 :  None :  1.0 :   3.0
          2 :  None :  1.0 :   3.0
    works_done_by_their_order : Size=18
        Key          : Lower : Body : Upper
        (0, 1, 0, 0) :   0.0 :  0.0 :   0.0
        (0, 1, 1, 0) :   0.0 :  0.0 :   0.0
        (0, 1, 1, 1) :   0.0 :  0.0 :   0.0
        (0, 1, 2, 0) :   0.0 :  0.0 :   0.0
        (0, 1, 2, 1) :   0.0 :  0.0 :   0.0
        (0, 1, 2, 2) :   0.0 :  0.0 :   0.0
        (1, 3, 0, 0) :   0.0 :  0.0 :   0.0
        (1, 3, 1, 0) :   0.0 :  0.0 :   0.0
        (1, 3, 1, 1) :   0.0 :  0.0 :   0.0
        (1, 3, 2, 0) :   0.0 :  0.0 :   0.0
        (1, 3, 2, 1) :   0.0 :  0.0 :   0.0
        (1, 3, 2, 2) :   0.0 :  0.0 :   0.0
        (2, 3, 0, 0) :   0.0 :  0.0 :   0.0
        (2, 3, 1, 0) :   0.0 :  0.0 :   0.0
        (2, 3, 1, 1) :   0.0 :  0.0 :   0.0
        (2, 3, 2, 0) :   0.0 :  0.0 :   0.0
        (2, 3, 2, 1) :   0.0 :  0.0 :   0.0
        (2, 3, 2, 2) :   0.0 :  0.0 :   0.0
    eliminating_rule : Size=6
        Key    : Lower : Body : Upper
        (0, 1) :   0.0 :  0.0 :   0.0
        (0, 2) :   0.0 :  0.0 :   0.0
        (1, 0) :   0.0 :  0.0 :   0.0
        (1, 2) :   0.0 :  0.0 :   0.0
        (2, 2) :   0.0 :  0.0 :   0.0
        (3, 0) :   0.0 :  0.0 :   0.0

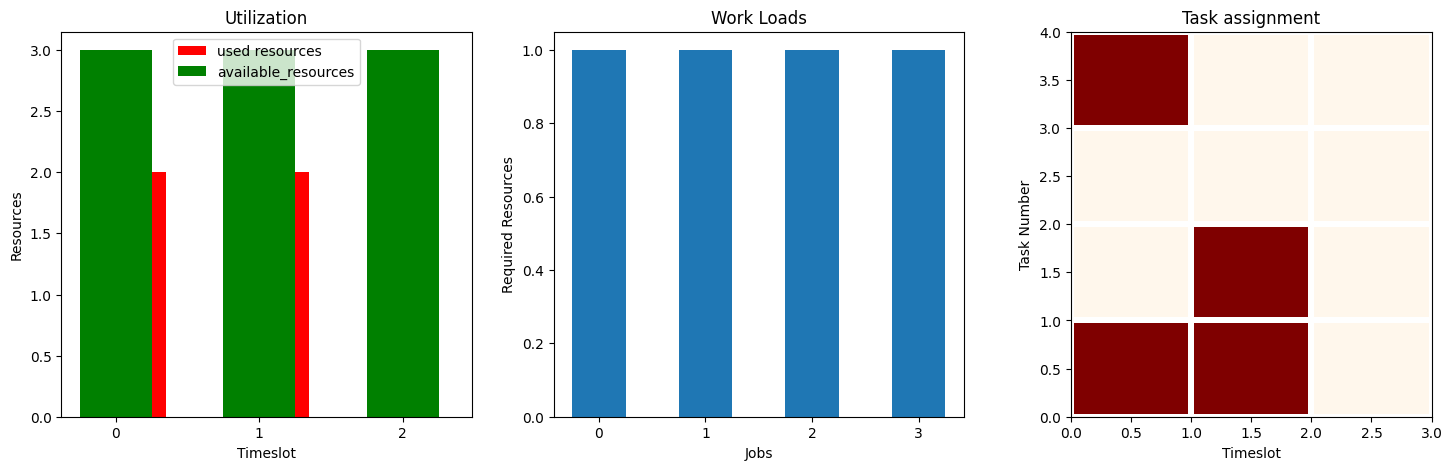

classical_solution = np.array(
    [
        int(pyo.value(tasks_model.x[idx]))
        for idx in np.ndindex(num_timeslots, len(G.nodes))
    ]
).reshape(num_timeslots, len(G.nodes))
plot_workflow(classical_solution)

png

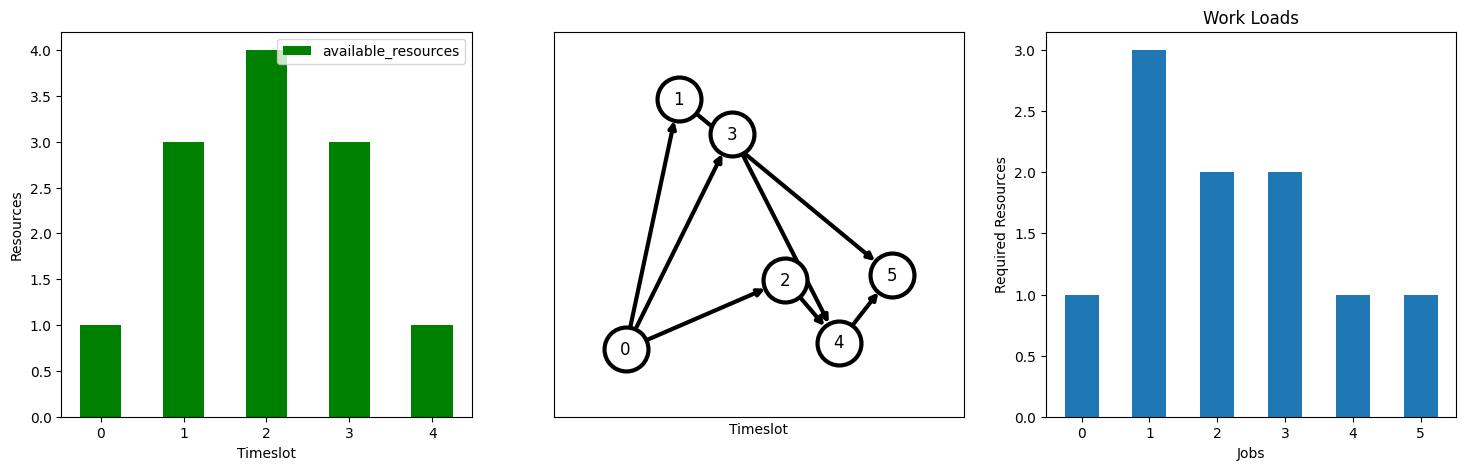

Large Example

We will try a more elaborate example, involving more works with non-uniform workloads and resources.

tasks_model_large, G, num_timeslots, capacities, workloads = large_example()
plot_workflow()

png

tasks_model_large.pprint()
13 Set Declarations
    all_works_are_done_index : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    6 : {0, 1, 2, 3, 4, 5}
    capacity_is_valid_index : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    5 : {0, 1, 2, 3, 4}
    eliminating_rule_index : Size=1, Index=None, Ordered=True
        Key  : Dimen : Domain                                            : Size : Members
        None :     2 : eliminating_rule_index_0*eliminating_rule_index_1 :   30 : {(0, 0), (0, 1), (0, 2), (0, 3), (0, 4), (1, 0), (1, 1), (1, 2), (1, 3), (1, 4), (2, 0), (2, 1), (2, 2), (2, 3), (2, 4), (3, 0), (3, 1), (3, 2), (3, 3), (3, 4), (4, 0), (4, 1), (4, 2), (4, 3), (4, 4), (5, 0), (5, 1), (5, 2), (5, 3), (5, 4)}
    eliminating_rule_index_0 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    6 : {0, 1, 2, 3, 4, 5}
    eliminating_rule_index_1 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    5 : {0, 1, 2, 3, 4}
    works_done_by_their_order_index : Size=1, Index=None, Ordered=True
        Key  : Dimen : Domain                                                                                                                                  : Size : Members
        None :     4 : works_done_by_their_order_index_0*works_done_by_their_order_index_1*works_done_by_their_order_index_2*works_done_by_their_order_index_3 :  900 : {(0, 0, 0, 0), (0, 0, 0, 1), (0, 0, 0, 2), (0, 0, 0, 3), (0, 0, 0, 4), (0, 0, 1, 0), (0, 0, 1, 1), (0, 0, 1, 2), (0, 0, 1, 3), (0, 0, 1, 4), (0, 0, 2, 0), (0, 0, 2, 1), (0, 0, 2, 2), (0, 0, 2, 3), (0, 0, 2, 4), (0, 0, 3, 0), (0, 0, 3, 1), (0, 0, 3, 2), (0, 0, 3, 3), (0, 0, 3, 4), (0, 0, 4, 0), (0, 0, 4, 1), (0, 0, 4, 2), (0, 0, 4, 3), (0, 0, 4, 4), (0, 1, 0, 0), (0, 1, 0, 1), (0, 1, 0, 2), (0, 1, 0, 3), (0, 1, 0, 4), (0, 1, 1, 0), (0, 1, 1, 1), (0, 1, 1, 2), (0, 1, 1, 3), (0, 1, 1, 4), (0, 1, 2, 0), (0, 1, 2, 1), (0, 1, 2, 2), (0, 1, 2, 3), (0, 1, 2, 4), (0, 1, 3, 0), (0, 1, 3, 1), (0, 1, 3, 2), (0, 1, 3, 3), (0, 1, 3, 4), (0, 1, 4, 0), (0, 1, 4, 1), (0, 1, 4, 2), (0, 1, 4, 3), (0, 1, 4, 4), (0, 2, 0, 0), (0, 2, 0, 1), (0, 2, 0, 2), (0, 2, 0, 3), (0, 2, 0, 4), (0, 2, 1, 0), (0, 2, 1, 1), (0, 2, 1, 2), (0, 2, 1, 3), (0, 2, 1, 4), (0, 2, 2, 0), (0, 2, 2, 1), (0, 2, 2, 2), (0, 2, 2, 3), (0, 2, 2, 4), (0, 2, 3, 0), (0, 2, 3, 1), (0, 2, 3, 2), (0, 2, 3, 3), (0, 2, 3, 4), (0, 2, 4, 0), (0, 2, 4, 1), (0, 2, 4, 2), (0, 2, 4, 3), (0, 2, 4, 4), (0, 3, 0, 0), (0, 3, 0, 1), (0, 3, 0, 2), (0, 3, 0, 3), (0, 3, 0, 4), (0, 3, 1, 0), (0, 3, 1, 1), (0, 3, 1, 2), (0, 3, 1, 3), (0, 3, 1, 4), (0, 3, 2, 0), (0, 3, 2, 1), (0, 3, 2, 2), (0, 3, 2, 3), (0, 3, 2, 4), (0, 3, 3, 0), (0, 3, 3, 1), (0, 3, 3, 2), (0, 3, 3, 3), (0, 3, 3, 4), (0, 3, 4, 0), (0, 3, 4, 1), (0, 3, 4, 2), (0, 3, 4, 3), (0, 3, 4, 4), (0, 4, 0, 0), (0, 4, 0, 1), (0, 4, 0, 2), (0, 4, 0, 3), (0, 4, 0, 4), (0, 4, 1, 0), (0, 4, 1, 1), (0, 4, 1, 2), (0, 4, 1, 3), (0, 4, 1, 4), (0, 4, 2, 0), (0, 4, 2, 1), (0, 4, 2, 2), (0, 4, 2, 3), (0, 4, 2, 4), (0, 4, 3, 0), (0, 4, 3, 1), (0, 4, 3, 2), (0, 4, 3, 3), (0, 4, 3, 4), (0, 4, 4, 0), (0, 4, 4, 1), (0, 4, 4, 2), (0, 4, 4, 3), (0, 4, 4, 4), (0, 5, 0, 0), (0, 5, 0, 1), (0, 5, 0, 2), (0, 5, 0, 3), (0, 5, 0, 4), (0, 5, 1, 0), (0, 5, 1, 1), (0, 5, 1, 2), (0, 5, 1, 3), (0, 5, 1, 4), (0, 5, 2, 0), (0, 5, 2, 1), (0, 5, 2, 2), (0, 5, 2, 3), (0, 5, 2, 4), (0, 5, 3, 0), (0, 5, 3, 1), (0, 5, 3, 2), (0, 5, 3, 3), (0, 5, 3, 4), (0, 5, 4, 0), (0, 5, 4, 1), (0, 5, 4, 2), (0, 5, 4, 3), (0, 5, 4, 4), (1, 0, 0, 0), (1, 0, 0, 1), (1, 0, 0, 2), (1, 0, 0, 3), (1, 0, 0, 4), (1, 0, 1, 0), (1, 0, 1, 1), (1, 0, 1, 2), (1, 0, 1, 3), (1, 0, 1, 4), (1, 0, 2, 0), (1, 0, 2, 1), (1, 0, 2, 2), (1, 0, 2, 3), (1, 0, 2, 4), (1, 0, 3, 0), (1, 0, 3, 1), (1, 0, 3, 2), (1, 0, 3, 3), (1, 0, 3, 4), (1, 0, 4, 0), (1, 0, 4, 1), (1, 0, 4, 2), (1, 0, 4, 3), (1, 0, 4, 4), (1, 1, 0, 0), (1, 1, 0, 1), (1, 1, 0, 2), (1, 1, 0, 3), (1, 1, 0, 4), (1, 1, 1, 0), (1, 1, 1, 1), (1, 1, 1, 2), (1, 1, 1, 3), (1, 1, 1, 4), (1, 1, 2, 0), (1, 1, 2, 1), (1, 1, 2, 2), (1, 1, 2, 3), (1, 1, 2, 4), (1, 1, 3, 0), (1, 1, 3, 1), (1, 1, 3, 2), (1, 1, 3, 3), (1, 1, 3, 4), (1, 1, 4, 0), (1, 1, 4, 1), (1, 1, 4, 2), (1, 1, 4, 3), (1, 1, 4, 4), (1, 2, 0, 0), (1, 2, 0, 1), (1, 2, 0, 2), (1, 2, 0, 3), (1, 2, 0, 4), (1, 2, 1, 0), (1, 2, 1, 1), (1, 2, 1, 2), (1, 2, 1, 3), (1, 2, 1, 4), (1, 2, 2, 0), (1, 2, 2, 1), (1, 2, 2, 2), (1, 2, 2, 3), (1, 2, 2, 4), (1, 2, 3, 0), (1, 2, 3, 1), (1, 2, 3, 2), (1, 2, 3, 3), (1, 2, 3, 4), (1, 2, 4, 0), (1, 2, 4, 1), (1, 2, 4, 2), (1, 2, 4, 3), (1, 2, 4, 4), (1, 3, 0, 0), (1, 3, 0, 1), (1, 3, 0, 2), (1, 3, 0, 3), (1, 3, 0, 4), (1, 3, 1, 0), (1, 3, 1, 1), (1, 3, 1, 2), (1, 3, 1, 3), (1, 3, 1, 4), (1, 3, 2, 0), (1, 3, 2, 1), (1, 3, 2, 2), (1, 3, 2, 3), (1, 3, 2, 4), (1, 3, 3, 0), (1, 3, 3, 1), (1, 3, 3, 2), (1, 3, 3, 3), (1, 3, 3, 4), (1, 3, 4, 0), (1, 3, 4, 1), (1, 3, 4, 2), (1, 3, 4, 3), (1, 3, 4, 4), (1, 4, 0, 0), (1, 4, 0, 1), (1, 4, 0, 2), (1, 4, 0, 3), (1, 4, 0, 4), (1, 4, 1, 0), (1, 4, 1, 1), (1, 4, 1, 2), (1, 4, 1, 3), (1, 4, 1, 4), (1, 4, 2, 0), (1, 4, 2, 1), (1, 4, 2, 2), (1, 4, 2, 3), (1, 4, 2, 4), (1, 4, 3, 0), (1, 4, 3, 1), (1, 4, 3, 2), (1, 4, 3, 3), (1, 4, 3, 4), (1, 4, 4, 0), (1, 4, 4, 1), (1, 4, 4, 2), (1, 4, 4, 3), (1, 4, 4, 4), (1, 5, 0, 0), (1, 5, 0, 1), (1, 5, 0, 2), (1, 5, 0, 3), (1, 5, 0, 4), (1, 5, 1, 0), (1, 5, 1, 1), (1, 5, 1, 2), (1, 5, 1, 3), (1, 5, 1, 4), (1, 5, 2, 0), (1, 5, 2, 1), (1, 5, 2, 2), (1, 5, 2, 3), (1, 5, 2, 4), (1, 5, 3, 0), (1, 5, 3, 1), (1, 5, 3, 2), (1, 5, 3, 3), (1, 5, 3, 4), (1, 5, 4, 0), (1, 5, 4, 1), (1, 5, 4, 2), (1, 5, 4, 3), (1, 5, 4, 4), (2, 0, 0, 0), (2, 0, 0, 1), (2, 0, 0, 2), (2, 0, 0, 3), (2, 0, 0, 4), (2, 0, 1, 0), (2, 0, 1, 1), (2, 0, 1, 2), (2, 0, 1, 3), (2, 0, 1, 4), (2, 0, 2, 0), (2, 0, 2, 1), (2, 0, 2, 2), (2, 0, 2, 3), (2, 0, 2, 4), (2, 0, 3, 0), (2, 0, 3, 1), (2, 0, 3, 2), (2, 0, 3, 3), (2, 0, 3, 4), (2, 0, 4, 0), (2, 0, 4, 1), (2, 0, 4, 2), (2, 0, 4, 3), (2, 0, 4, 4), (2, 1, 0, 0), (2, 1, 0, 1), (2, 1, 0, 2), (2, 1, 0, 3), (2, 1, 0, 4), (2, 1, 1, 0), (2, 1, 1, 1), (2, 1, 1, 2), (2, 1, 1, 3), (2, 1, 1, 4), (2, 1, 2, 0), (2, 1, 2, 1), (2, 1, 2, 2), (2, 1, 2, 3), (2, 1, 2, 4), (2, 1, 3, 0), (2, 1, 3, 1), (2, 1, 3, 2), (2, 1, 3, 3), (2, 1, 3, 4), (2, 1, 4, 0), (2, 1, 4, 1), (2, 1, 4, 2), (2, 1, 4, 3), (2, 1, 4, 4), (2, 2, 0, 0), (2, 2, 0, 1), (2, 2, 0, 2), (2, 2, 0, 3), (2, 2, 0, 4), (2, 2, 1, 0), (2, 2, 1, 1), (2, 2, 1, 2), (2, 2, 1, 3), (2, 2, 1, 4), (2, 2, 2, 0), (2, 2, 2, 1), (2, 2, 2, 2), (2, 2, 2, 3), (2, 2, 2, 4), (2, 2, 3, 0), (2, 2, 3, 1), (2, 2, 3, 2), (2, 2, 3, 3), (2, 2, 3, 4), (2, 2, 4, 0), (2, 2, 4, 1), (2, 2, 4, 2), (2, 2, 4, 3), (2, 2, 4, 4), (2, 3, 0, 0), (2, 3, 0, 1), (2, 3, 0, 2), (2, 3, 0, 3), (2, 3, 0, 4), (2, 3, 1, 0), (2, 3, 1, 1), (2, 3, 1, 2), (2, 3, 1, 3), (2, 3, 1, 4), (2, 3, 2, 0), (2, 3, 2, 1), (2, 3, 2, 2), (2, 3, 2, 3), (2, 3, 2, 4), (2, 3, 3, 0), (2, 3, 3, 1), (2, 3, 3, 2), (2, 3, 3, 3), (2, 3, 3, 4), (2, 3, 4, 0), (2, 3, 4, 1), (2, 3, 4, 2), (2, 3, 4, 3), (2, 3, 4, 4), (2, 4, 0, 0), (2, 4, 0, 1), (2, 4, 0, 2), (2, 4, 0, 3), (2, 4, 0, 4), (2, 4, 1, 0), (2, 4, 1, 1), (2, 4, 1, 2), (2, 4, 1, 3), (2, 4, 1, 4), (2, 4, 2, 0), (2, 4, 2, 1), (2, 4, 2, 2), (2, 4, 2, 3), (2, 4, 2, 4), (2, 4, 3, 0), (2, 4, 3, 1), (2, 4, 3, 2), (2, 4, 3, 3), (2, 4, 3, 4), (2, 4, 4, 0), (2, 4, 4, 1), (2, 4, 4, 2), (2, 4, 4, 3), (2, 4, 4, 4), (2, 5, 0, 0), (2, 5, 0, 1), (2, 5, 0, 2), (2, 5, 0, 3), (2, 5, 0, 4), (2, 5, 1, 0), (2, 5, 1, 1), (2, 5, 1, 2), (2, 5, 1, 3), (2, 5, 1, 4), (2, 5, 2, 0), (2, 5, 2, 1), (2, 5, 2, 2), (2, 5, 2, 3), (2, 5, 2, 4), (2, 5, 3, 0), (2, 5, 3, 1), (2, 5, 3, 2), (2, 5, 3, 3), (2, 5, 3, 4), (2, 5, 4, 0), (2, 5, 4, 1), (2, 5, 4, 2), (2, 5, 4, 3), (2, 5, 4, 4), (3, 0, 0, 0), (3, 0, 0, 1), (3, 0, 0, 2), (3, 0, 0, 3), (3, 0, 0, 4), (3, 0, 1, 0), (3, 0, 1, 1), (3, 0, 1, 2), (3, 0, 1, 3), (3, 0, 1, 4), (3, 0, 2, 0), (3, 0, 2, 1), (3, 0, 2, 2), (3, 0, 2, 3), (3, 0, 2, 4), (3, 0, 3, 0), (3, 0, 3, 1), (3, 0, 3, 2), (3, 0, 3, 3), (3, 0, 3, 4), (3, 0, 4, 0), (3, 0, 4, 1), (3, 0, 4, 2), (3, 0, 4, 3), (3, 0, 4, 4), (3, 1, 0, 0), (3, 1, 0, 1), (3, 1, 0, 2), (3, 1, 0, 3), (3, 1, 0, 4), (3, 1, 1, 0), (3, 1, 1, 1), (3, 1, 1, 2), (3, 1, 1, 3), (3, 1, 1, 4), (3, 1, 2, 0), (3, 1, 2, 1), (3, 1, 2, 2), (3, 1, 2, 3), (3, 1, 2, 4), (3, 1, 3, 0), (3, 1, 3, 1), (3, 1, 3, 2), (3, 1, 3, 3), (3, 1, 3, 4), (3, 1, 4, 0), (3, 1, 4, 1), (3, 1, 4, 2), (3, 1, 4, 3), (3, 1, 4, 4), (3, 2, 0, 0), (3, 2, 0, 1), (3, 2, 0, 2), (3, 2, 0, 3), (3, 2, 0, 4), (3, 2, 1, 0), (3, 2, 1, 1), (3, 2, 1, 2), (3, 2, 1, 3), (3, 2, 1, 4), (3, 2, 2, 0), (3, 2, 2, 1), (3, 2, 2, 2), (3, 2, 2, 3), (3, 2, 2, 4), (3, 2, 3, 0), (3, 2, 3, 1), (3, 2, 3, 2), (3, 2, 3, 3), (3, 2, 3, 4), (3, 2, 4, 0), (3, 2, 4, 1), (3, 2, 4, 2), (3, 2, 4, 3), (3, 2, 4, 4), (3, 3, 0, 0), (3, 3, 0, 1), (3, 3, 0, 2), (3, 3, 0, 3), (3, 3, 0, 4), (3, 3, 1, 0), (3, 3, 1, 1), (3, 3, 1, 2), (3, 3, 1, 3), (3, 3, 1, 4), (3, 3, 2, 0), (3, 3, 2, 1), (3, 3, 2, 2), (3, 3, 2, 3), (3, 3, 2, 4), (3, 3, 3, 0), (3, 3, 3, 1), (3, 3, 3, 2), (3, 3, 3, 3), (3, 3, 3, 4), (3, 3, 4, 0), (3, 3, 4, 1), (3, 3, 4, 2), (3, 3, 4, 3), (3, 3, 4, 4), (3, 4, 0, 0), (3, 4, 0, 1), (3, 4, 0, 2), (3, 4, 0, 3), (3, 4, 0, 4), (3, 4, 1, 0), (3, 4, 1, 1), (3, 4, 1, 2), (3, 4, 1, 3), (3, 4, 1, 4), (3, 4, 2, 0), (3, 4, 2, 1), (3, 4, 2, 2), (3, 4, 2, 3), (3, 4, 2, 4), (3, 4, 3, 0), (3, 4, 3, 1), (3, 4, 3, 2), (3, 4, 3, 3), (3, 4, 3, 4), (3, 4, 4, 0), (3, 4, 4, 1), (3, 4, 4, 2), (3, 4, 4, 3), (3, 4, 4, 4), (3, 5, 0, 0), (3, 5, 0, 1), (3, 5, 0, 2), (3, 5, 0, 3), (3, 5, 0, 4), (3, 5, 1, 0), (3, 5, 1, 1), (3, 5, 1, 2), (3, 5, 1, 3), (3, 5, 1, 4), (3, 5, 2, 0), (3, 5, 2, 1), (3, 5, 2, 2), (3, 5, 2, 3), (3, 5, 2, 4), (3, 5, 3, 0), (3, 5, 3, 1), (3, 5, 3, 2), (3, 5, 3, 3), (3, 5, 3, 4), (3, 5, 4, 0), (3, 5, 4, 1), (3, 5, 4, 2), (3, 5, 4, 3), (3, 5, 4, 4), (4, 0, 0, 0), (4, 0, 0, 1), (4, 0, 0, 2), (4, 0, 0, 3), (4, 0, 0, 4), (4, 0, 1, 0), (4, 0, 1, 1), (4, 0, 1, 2), (4, 0, 1, 3), (4, 0, 1, 4), (4, 0, 2, 0), (4, 0, 2, 1), (4, 0, 2, 2), (4, 0, 2, 3), (4, 0, 2, 4), (4, 0, 3, 0), (4, 0, 3, 1), (4, 0, 3, 2), (4, 0, 3, 3), (4, 0, 3, 4), (4, 0, 4, 0), (4, 0, 4, 1), (4, 0, 4, 2), (4, 0, 4, 3), (4, 0, 4, 4), (4, 1, 0, 0), (4, 1, 0, 1), (4, 1, 0, 2), (4, 1, 0, 3), (4, 1, 0, 4), (4, 1, 1, 0), (4, 1, 1, 1), (4, 1, 1, 2), (4, 1, 1, 3), (4, 1, 1, 4), (4, 1, 2, 0), (4, 1, 2, 1), (4, 1, 2, 2), (4, 1, 2, 3), (4, 1, 2, 4), (4, 1, 3, 0), (4, 1, 3, 1), (4, 1, 3, 2), (4, 1, 3, 3), (4, 1, 3, 4), (4, 1, 4, 0), (4, 1, 4, 1), (4, 1, 4, 2), (4, 1, 4, 3), (4, 1, 4, 4), (4, 2, 0, 0), (4, 2, 0, 1), (4, 2, 0, 2), (4, 2, 0, 3), (4, 2, 0, 4), (4, 2, 1, 0), (4, 2, 1, 1), (4, 2, 1, 2), (4, 2, 1, 3), (4, 2, 1, 4), (4, 2, 2, 0), (4, 2, 2, 1), (4, 2, 2, 2), (4, 2, 2, 3), (4, 2, 2, 4), (4, 2, 3, 0), (4, 2, 3, 1), (4, 2, 3, 2), (4, 2, 3, 3), (4, 2, 3, 4), (4, 2, 4, 0), (4, 2, 4, 1), (4, 2, 4, 2), (4, 2, 4, 3), (4, 2, 4, 4), (4, 3, 0, 0), (4, 3, 0, 1), (4, 3, 0, 2), (4, 3, 0, 3), (4, 3, 0, 4), (4, 3, 1, 0), (4, 3, 1, 1), (4, 3, 1, 2), (4, 3, 1, 3), (4, 3, 1, 4), (4, 3, 2, 0), (4, 3, 2, 1), (4, 3, 2, 2), (4, 3, 2, 3), (4, 3, 2, 4), (4, 3, 3, 0), (4, 3, 3, 1), (4, 3, 3, 2), (4, 3, 3, 3), (4, 3, 3, 4), (4, 3, 4, 0), (4, 3, 4, 1), (4, 3, 4, 2), (4, 3, 4, 3), (4, 3, 4, 4), (4, 4, 0, 0), (4, 4, 0, 1), (4, 4, 0, 2), (4, 4, 0, 3), (4, 4, 0, 4), (4, 4, 1, 0), (4, 4, 1, 1), (4, 4, 1, 2), (4, 4, 1, 3), (4, 4, 1, 4), (4, 4, 2, 0), (4, 4, 2, 1), (4, 4, 2, 2), (4, 4, 2, 3), (4, 4, 2, 4), (4, 4, 3, 0), (4, 4, 3, 1), (4, 4, 3, 2), (4, 4, 3, 3), (4, 4, 3, 4), (4, 4, 4, 0), (4, 4, 4, 1), (4, 4, 4, 2), (4, 4, 4, 3), (4, 4, 4, 4), (4, 5, 0, 0), (4, 5, 0, 1), (4, 5, 0, 2), (4, 5, 0, 3), (4, 5, 0, 4), (4, 5, 1, 0), (4, 5, 1, 1), (4, 5, 1, 2), (4, 5, 1, 3), (4, 5, 1, 4), (4, 5, 2, 0), (4, 5, 2, 1), (4, 5, 2, 2), (4, 5, 2, 3), (4, 5, 2, 4), (4, 5, 3, 0), (4, 5, 3, 1), (4, 5, 3, 2), (4, 5, 3, 3), (4, 5, 3, 4), (4, 5, 4, 0), (4, 5, 4, 1), (4, 5, 4, 2), (4, 5, 4, 3), (4, 5, 4, 4), (5, 0, 0, 0), (5, 0, 0, 1), (5, 0, 0, 2), (5, 0, 0, 3), (5, 0, 0, 4), (5, 0, 1, 0), (5, 0, 1, 1), (5, 0, 1, 2), (5, 0, 1, 3), (5, 0, 1, 4), (5, 0, 2, 0), (5, 0, 2, 1), (5, 0, 2, 2), (5, 0, 2, 3), (5, 0, 2, 4), (5, 0, 3, 0), (5, 0, 3, 1), (5, 0, 3, 2), (5, 0, 3, 3), (5, 0, 3, 4), (5, 0, 4, 0), (5, 0, 4, 1), (5, 0, 4, 2), (5, 0, 4, 3), (5, 0, 4, 4), (5, 1, 0, 0), (5, 1, 0, 1), (5, 1, 0, 2), (5, 1, 0, 3), (5, 1, 0, 4), (5, 1, 1, 0), (5, 1, 1, 1), (5, 1, 1, 2), (5, 1, 1, 3), (5, 1, 1, 4), (5, 1, 2, 0), (5, 1, 2, 1), (5, 1, 2, 2), (5, 1, 2, 3), (5, 1, 2, 4), (5, 1, 3, 0), (5, 1, 3, 1), (5, 1, 3, 2), (5, 1, 3, 3), (5, 1, 3, 4), (5, 1, 4, 0), (5, 1, 4, 1), (5, 1, 4, 2), (5, 1, 4, 3), (5, 1, 4, 4), (5, 2, 0, 0), (5, 2, 0, 1), (5, 2, 0, 2), (5, 2, 0, 3), (5, 2, 0, 4), (5, 2, 1, 0), (5, 2, 1, 1), (5, 2, 1, 2), (5, 2, 1, 3), (5, 2, 1, 4), (5, 2, 2, 0), (5, 2, 2, 1), (5, 2, 2, 2), (5, 2, 2, 3), (5, 2, 2, 4), (5, 2, 3, 0), (5, 2, 3, 1), (5, 2, 3, 2), (5, 2, 3, 3), (5, 2, 3, 4), (5, 2, 4, 0), (5, 2, 4, 1), (5, 2, 4, 2), (5, 2, 4, 3), (5, 2, 4, 4), (5, 3, 0, 0), (5, 3, 0, 1), (5, 3, 0, 2), (5, 3, 0, 3), (5, 3, 0, 4), (5, 3, 1, 0), (5, 3, 1, 1), (5, 3, 1, 2), (5, 3, 1, 3), (5, 3, 1, 4), (5, 3, 2, 0), (5, 3, 2, 1), (5, 3, 2, 2), (5, 3, 2, 3), (5, 3, 2, 4), (5, 3, 3, 0), (5, 3, 3, 1), (5, 3, 3, 2), (5, 3, 3, 3), (5, 3, 3, 4), (5, 3, 4, 0), (5, 3, 4, 1), (5, 3, 4, 2), (5, 3, 4, 3), (5, 3, 4, 4), (5, 4, 0, 0), (5, 4, 0, 1), (5, 4, 0, 2), (5, 4, 0, 3), (5, 4, 0, 4), (5, 4, 1, 0), (5, 4, 1, 1), (5, 4, 1, 2), (5, 4, 1, 3), (5, 4, 1, 4), (5, 4, 2, 0), (5, 4, 2, 1), (5, 4, 2, 2), (5, 4, 2, 3), (5, 4, 2, 4), (5, 4, 3, 0), (5, 4, 3, 1), (5, 4, 3, 2), (5, 4, 3, 3), (5, 4, 3, 4), (5, 4, 4, 0), (5, 4, 4, 1), (5, 4, 4, 2), (5, 4, 4, 3), (5, 4, 4, 4), (5, 5, 0, 0), (5, 5, 0, 1), (5, 5, 0, 2), (5, 5, 0, 3), (5, 5, 0, 4), (5, 5, 1, 0), (5, 5, 1, 1), (5, 5, 1, 2), (5, 5, 1, 3), (5, 5, 1, 4), (5, 5, 2, 0), (5, 5, 2, 1), (5, 5, 2, 2), (5, 5, 2, 3), (5, 5, 2, 4), (5, 5, 3, 0), (5, 5, 3, 1), (5, 5, 3, 2), (5, 5, 3, 3), (5, 5, 3, 4), (5, 5, 4, 0), (5, 5, 4, 1), (5, 5, 4, 2), (5, 5, 4, 3), (5, 5, 4, 4)}
    works_done_by_their_order_index_0 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    6 : {0, 1, 2, 3, 4, 5}
    works_done_by_their_order_index_1 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    6 : {0, 1, 2, 3, 4, 5}
    works_done_by_their_order_index_2 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    5 : {0, 1, 2, 3, 4}
    works_done_by_their_order_index_3 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    5 : {0, 1, 2, 3, 4}
    x_index : Size=1, Index=None, Ordered=True
        Key  : Dimen : Domain              : Size : Members
        None :     2 : x_index_0*x_index_1 :   30 : {(0, 0), (0, 1), (0, 2), (0, 3), (0, 4), (0, 5), (1, 0), (1, 1), (1, 2), (1, 3), (1, 4), (1, 5), (2, 0), (2, 1), (2, 2), (2, 3), (2, 4), (2, 5), (3, 0), (3, 1), (3, 2), (3, 3), (3, 4), (3, 5), (4, 0), (4, 1), (4, 2), (4, 3), (4, 4), (4, 5)}
    x_index_0 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    5 : {0, 1, 2, 3, 4}
    x_index_1 : Size=1, Index=None, Ordered=Insertion
        Key  : Dimen : Domain : Size : Members
        None :     1 :    Any :    6 : {0, 1, 2, 3, 4, 5}

1 Var Declarations
    x : Size=30, Index=x_index
        Key    : Lower : Value : Upper : Fixed : Stale : Domain
        (0, 0) :     0 :  None :     1 : False :  True : Binary
        (0, 1) :     0 :  None :     1 : False :  True : Binary
        (0, 2) :     0 :  None :     1 : False :  True : Binary
        (0, 3) :     0 :  None :     1 : False :  True : Binary
        (0, 4) :     0 :  None :     1 : False :  True : Binary
        (0, 5) :     0 :  None :     1 : False :  True : Binary
        (1, 0) :     0 :  None :     1 : False :  True : Binary
        (1, 1) :     0 :  None :     1 : False :  True : Binary
        (1, 2) :     0 :  None :     1 : False :  True : Binary
        (1, 3) :     0 :  None :     1 : False :  True : Binary
        (1, 4) :     0 :  None :     1 : False :  True : Binary
        (1, 5) :     0 :  None :     1 : False :  True : Binary
        (2, 0) :     0 :  None :     1 : False :  True : Binary
        (2, 1) :     0 :  None :     1 : False :  True : Binary
        (2, 2) :     0 :  None :     1 : False :  True : Binary
        (2, 3) :     0 :  None :     1 : False :  True : Binary
        (2, 4) :     0 :  None :     1 : False :  True : Binary
        (2, 5) :     0 :  None :     1 : False :  True : Binary
        (3, 0) :     0 :  None :     1 : False :  True : Binary
        (3, 1) :     0 :  None :     1 : False :  True : Binary
        (3, 2) :     0 :  None :     1 : False :  True : Binary
        (3, 3) :     0 :  None :     1 : False :  True : Binary
        (3, 4) :     0 :  None :     1 : False :  True : Binary
        (3, 5) :     0 :  None :     1 : False :  True : Binary
        (4, 0) :     0 :  None :     1 : False :  True : Binary
        (4, 1) :     0 :  None :     1 : False :  True : Binary
        (4, 2) :     0 :  None :     1 : False :  True : Binary
        (4, 3) :     0 :  None :     1 : False :  True : Binary
        (4, 4) :     0 :  None :     1 : False :  True : Binary
        (4, 5) :     0 :  None :     1 : False :  True : Binary

1 Objective Declarations
    cost : Size=1, Index=None, Active=True
        Key  : Active : Sense    : Expression
        None :   True : minimize : x[0,5] + 2*x[1,5] + 3*x[2,5] + 4*x[3,5] + 5*x[4,5]

4 Constraint Declarations
    all_works_are_done : Size=6, Index=all_works_are_done_index, Active=True
        Key : Lower : Body                                       : Upper : Active
          0 :   1.0 : x[0,0] + x[1,0] + x[2,0] + x[3,0] + x[4,0] :   1.0 :   True
          1 :   1.0 : x[0,1] + x[1,1] + x[2,1] + x[3,1] + x[4,1] :   1.0 :   True
          2 :   1.0 : x[0,2] + x[1,2] + x[2,2] + x[3,2] + x[4,2] :   1.0 :   True
          3 :   1.0 : x[0,3] + x[1,3] + x[2,3] + x[3,3] + x[4,3] :   1.0 :   True
          4 :   1.0 : x[0,4] + x[1,4] + x[2,4] + x[3,4] + x[4,4] :   1.0 :   True
          5 :   1.0 : x[0,5] + x[1,5] + x[2,5] + x[3,5] + x[4,5] :   1.0 :   True
    capacity_is_valid : Size=5, Index=capacity_is_valid_index, Active=True
        Key : Lower : Body                                                      : Upper : Active
          0 :  -Inf : x[0,0] + 3*x[0,1] + 2*x[0,2] + 2*x[0,3] + x[0,4] + x[0,5] :   1.0 :   True
          1 :  -Inf : x[1,0] + 3*x[1,1] + 2*x[1,2] + 2*x[1,3] + x[1,4] + x[1,5] :   3.0 :   True
          2 :  -Inf : x[2,0] + 3*x[2,1] + 2*x[2,2] + 2*x[2,3] + x[2,4] + x[2,5] :   4.0 :   True
          3 :  -Inf : x[3,0] + 3*x[3,1] + 2*x[3,2] + 2*x[3,3] + x[3,4] + x[3,5] :   3.0 :   True
          4 :  -Inf : x[4,0] + 3*x[4,1] + 2*x[4,2] + 2*x[4,3] + x[4,4] + x[4,5] :   1.0 :   True
    eliminating_rule : Size=15, Index=eliminating_rule_index, Active=True
        Key    : Lower : Body   : Upper : Active
        (0, 3) :   0.0 : x[3,0] :   0.0 :   True
        (0, 4) :   0.0 : x[4,0] :   0.0 :   True
        (1, 0) :   0.0 : x[0,1] :   0.0 :   True
        (1, 4) :   0.0 : x[4,1] :   0.0 :   True
        (2, 0) :   0.0 : x[0,2] :   0.0 :   True
        (2, 3) :   0.0 : x[3,2] :   0.0 :   True
        (2, 4) :   0.0 : x[4,2] :   0.0 :   True
        (3, 0) :   0.0 : x[0,3] :   0.0 :   True
        (3, 3) :   0.0 : x[3,3] :   0.0 :   True
        (3, 4) :   0.0 : x[4,3] :   0.0 :   True
        (4, 0) :   0.0 : x[0,4] :   0.0 :   True
        (4, 1) :   0.0 : x[1,4] :   0.0 :   True
        (4, 4) :   0.0 : x[4,4] :   0.0 :   True
        (5, 0) :   0.0 : x[0,5] :   0.0 :   True
        (5, 1) :   0.0 : x[1,5] :   0.0 :   True
    works_done_by_their_order : Size=105, Index=works_done_by_their_order_index, Active=True
        Key          : Lower : Body          : Upper : Active
        (0, 1, 0, 0) :   0.0 : x[0,0]*x[0,1] :   0.0 :   True
        (0, 1, 1, 0) :   0.0 : x[1,0]*x[0,1] :   0.0 :   True
        (0, 1, 1, 1) :   0.0 : x[1,0]*x[1,1] :   0.0 :   True
        (0, 1, 2, 0) :   0.0 : x[2,0]*x[0,1] :   0.0 :   True
        (0, 1, 2, 1) :   0.0 : x[2,0]*x[1,1] :   0.0 :   True
        (0, 1, 2, 2) :   0.0 : x[2,0]*x[2,1] :   0.0 :   True
        (0, 1, 3, 0) :   0.0 : x[3,0]*x[0,1] :   0.0 :   True
        (0, 1, 3, 1) :   0.0 : x[3,0]*x[1,1] :   0.0 :   True
        (0, 1, 3, 2) :   0.0 : x[3,0]*x[2,1] :   0.0 :   True
        (0, 1, 3, 3) :   0.0 : x[3,0]*x[3,1] :   0.0 :   True
        (0, 1, 4, 0) :   0.0 : x[4,0]*x[0,1] :   0.0 :   True
        (0, 1, 4, 1) :   0.0 : x[4,0]*x[1,1] :   0.0 :   True
        (0, 1, 4, 2) :   0.0 : x[4,0]*x[2,1] :   0.0 :   True
        (0, 1, 4, 3) :   0.0 : x[4,0]*x[3,1] :   0.0 :   True
        (0, 1, 4, 4) :   0.0 : x[4,0]*x[4,1] :   0.0 :   True
        (0, 2, 0, 0) :   0.0 : x[0,0]*x[0,2] :   0.0 :   True
        (0, 2, 1, 0) :   0.0 : x[1,0]*x[0,2] :   0.0 :   True
        (0, 2, 1, 1) :   0.0 : x[1,0]*x[1,2] :   0.0 :   True
        (0, 2, 2, 0) :   0.0 : x[2,0]*x[0,2] :   0.0 :   True
        (0, 2, 2, 1) :   0.0 : x[2,0]*x[1,2] :   0.0 :   True
        (0, 2, 2, 2) :   0.0 : x[2,0]*x[2,2] :   0.0 :   True
        (0, 2, 3, 0) :   0.0 : x[3,0]*x[0,2] :   0.0 :   True
        (0, 2, 3, 1) :   0.0 : x[3,0]*x[1,2] :   0.0 :   True
        (0, 2, 3, 2) :   0.0 : x[3,0]*x[2,2] :   0.0 :   True
        (0, 2, 3, 3) :   0.0 : x[3,0]*x[3,2] :   0.0 :   True
        (0, 2, 4, 0) :   0.0 : x[4,0]*x[0,2] :   0.0 :   True
        (0, 2, 4, 1) :   0.0 : x[4,0]*x[1,2] :   0.0 :   True
        (0, 2, 4, 2) :   0.0 : x[4,0]*x[2,2] :   0.0 :   True
        (0, 2, 4, 3) :   0.0 : x[4,0]*x[3,2] :   0.0 :   True
        (0, 2, 4, 4) :   0.0 : x[4,0]*x[4,2] :   0.0 :   True
        (0, 3, 0, 0) :   0.0 : x[0,0]*x[0,3] :   0.0 :   True
        (0, 3, 1, 0) :   0.0 : x[1,0]*x[0,3] :   0.0 :   True
        (0, 3, 1, 1) :   0.0 : x[1,0]*x[1,3] :   0.0 :   True
        (0, 3, 2, 0) :   0.0 : x[2,0]*x[0,3] :   0.0 :   True
        (0, 3, 2, 1) :   0.0 : x[2,0]*x[1,3] :   0.0 :   True
        (0, 3, 2, 2) :   0.0 : x[2,0]*x[2,3] :   0.0 :   True
        (0, 3, 3, 0) :   0.0 : x[3,0]*x[0,3] :   0.0 :   True
        (0, 3, 3, 1) :   0.0 : x[3,0]*x[1,3] :   0.0 :   True
        (0, 3, 3, 2) :   0.0 : x[3,0]*x[2,3] :   0.0 :   True
        (0, 3, 3, 3) :   0.0 : x[3,0]*x[3,3] :   0.0 :   True
        (0, 3, 4, 0) :   0.0 : x[4,0]*x[0,3] :   0.0 :   True
        (0, 3, 4, 1) :   0.0 : x[4,0]*x[1,3] :   0.0 :   True
        (0, 3, 4, 2) :   0.0 : x[4,0]*x[2,3] :   0.0 :   True
        (0, 3, 4, 3) :   0.0 : x[4,0]*x[3,3] :   0.0 :   True
        (0, 3, 4, 4) :   0.0 : x[4,0]*x[4,3] :   0.0 :   True
        (1, 5, 0, 0) :   0.0 : x[0,1]*x[0,5] :   0.0 :   True
        (1, 5, 1, 0) :   0.0 : x[1,1]*x[0,5] :   0.0 :   True
        (1, 5, 1, 1) :   0.0 : x[1,1]*x[1,5] :   0.0 :   True
        (1, 5, 2, 0) :   0.0 : x[2,1]*x[0,5] :   0.0 :   True
        (1, 5, 2, 1) :   0.0 : x[2,1]*x[1,5] :   0.0 :   True
        (1, 5, 2, 2) :   0.0 : x[2,1]*x[2,5] :   0.0 :   True
        (1, 5, 3, 0) :   0.0 : x[3,1]*x[0,5] :   0.0 :   True
        (1, 5, 3, 1) :   0.0 : x[3,1]*x[1,5] :   0.0 :   True
        (1, 5, 3, 2) :   0.0 : x[3,1]*x[2,5] :   0.0 :   True
        (1, 5, 3, 3) :   0.0 : x[3,1]*x[3,5] :   0.0 :   True
        (1, 5, 4, 0) :   0.0 : x[4,1]*x[0,5] :   0.0 :   True
        (1, 5, 4, 1) :   0.0 : x[4,1]*x[1,5] :   0.0 :   True
        (1, 5, 4, 2) :   0.0 : x[4,1]*x[2,5] :   0.0 :   True
        (1, 5, 4, 3) :   0.0 : x[4,1]*x[3,5] :   0.0 :   True
        (1, 5, 4, 4) :   0.0 : x[4,1]*x[4,5] :   0.0 :   True
        (2, 4, 0, 0) :   0.0 : x[0,2]*x[0,4] :   0.0 :   True
        (2, 4, 1, 0) :   0.0 : x[1,2]*x[0,4] :   0.0 :   True
        (2, 4, 1, 1) :   0.0 : x[1,2]*x[1,4] :   0.0 :   True
        (2, 4, 2, 0) :   0.0 : x[2,2]*x[0,4] :   0.0 :   True
        (2, 4, 2, 1) :   0.0 : x[2,2]*x[1,4] :   0.0 :   True
        (2, 4, 2, 2) :   0.0 : x[2,2]*x[2,4] :   0.0 :   True
        (2, 4, 3, 0) :   0.0 : x[3,2]*x[0,4] :   0.0 :   True
        (2, 4, 3, 1) :   0.0 : x[3,2]*x[1,4] :   0.0 :   True
        (2, 4, 3, 2) :   0.0 : x[3,2]*x[2,4] :   0.0 :   True
        (2, 4, 3, 3) :   0.0 : x[3,2]*x[3,4] :   0.0 :   True
        (2, 4, 4, 0) :   0.0 : x[4,2]*x[0,4] :   0.0 :   True
        (2, 4, 4, 1) :   0.0 : x[4,2]*x[1,4] :   0.0 :   True
        (2, 4, 4, 2) :   0.0 : x[4,2]*x[2,4] :   0.0 :   True
        (2, 4, 4, 3) :   0.0 : x[4,2]*x[3,4] :   0.0 :   True
        (2, 4, 4, 4) :   0.0 : x[4,2]*x[4,4] :   0.0 :   True
        (3, 4, 0, 0) :   0.0 : x[0,3]*x[0,4] :   0.0 :   True
        (3, 4, 1, 0) :   0.0 : x[1,3]*x[0,4] :   0.0 :   True
        (3, 4, 1, 1) :   0.0 : x[1,3]*x[1,4] :   0.0 :   True
        (3, 4, 2, 0) :   0.0 : x[2,3]*x[0,4] :   0.0 :   True
        (3, 4, 2, 1) :   0.0 : x[2,3]*x[1,4] :   0.0 :   True
        (3, 4, 2, 2) :   0.0 : x[2,3]*x[2,4] :   0.0 :   True
        (3, 4, 3, 0) :   0.0 : x[3,3]*x[0,4] :   0.0 :   True
        (3, 4, 3, 1) :   0.0 : x[3,3]*x[1,4] :   0.0 :   True
        (3, 4, 3, 2) :   0.0 : x[3,3]*x[2,4] :   0.0 :   True
        (3, 4, 3, 3) :   0.0 : x[3,3]*x[3,4] :   0.0 :   True
        (3, 4, 4, 0) :   0.0 : x[4,3]*x[0,4] :   0.0 :   True
        (3, 4, 4, 1) :   0.0 : x[4,3]*x[1,4] :   0.0 :   True
        (3, 4, 4, 2) :   0.0 : x[4,3]*x[2,4] :   0.0 :   True
        (3, 4, 4, 3) :   0.0 : x[4,3]*x[3,4] :   0.0 :   True
        (3, 4, 4, 4) :   0.0 : x[4,3]*x[4,4] :   0.0 :   True
        (4, 5, 0, 0) :   0.0 : x[0,4]*x[0,5] :   0.0 :   True
        (4, 5, 1, 0) :   0.0 : x[1,4]*x[0,5] :   0.0 :   True
        (4, 5, 1, 1) :   0.0 : x[1,4]*x[1,5] :   0.0 :   True
        (4, 5, 2, 0) :   0.0 : x[2,4]*x[0,5] :   0.0 :   True
        (4, 5, 2, 1) :   0.0 : x[2,4]*x[1,5] :   0.0 :   True
        (4, 5, 2, 2) :   0.0 : x[2,4]*x[2,5] :   0.0 :   True
        (4, 5, 3, 0) :   0.0 : x[3,4]*x[0,5] :   0.0 :   True
        (4, 5, 3, 1) :   0.0 : x[3,4]*x[1,5] :   0.0 :   True
        (4, 5, 3, 2) :   0.0 : x[3,4]*x[2,5] :   0.0 :   True
        (4, 5, 3, 3) :   0.0 : x[3,4]*x[3,5] :   0.0 :   True
        (4, 5, 4, 0) :   0.0 : x[4,4]*x[0,5] :   0.0 :   True
        (4, 5, 4, 1) :   0.0 : x[4,4]*x[1,5] :   0.0 :   True
        (4, 5, 4, 2) :   0.0 : x[4,4]*x[2,5] :   0.0 :   True
        (4, 5, 4, 3) :   0.0 : x[4,4]*x[3,5] :   0.0 :   True
        (4, 5, 4, 4) :   0.0 : x[4,4]*x[4,5] :   0.0 :   True

19 Declarations: x_index_0 x_index_1 x_index x all_works_are_done_index all_works_are_done capacity_is_valid_index capacity_is_valid works_done_by_their_order_index_0 works_done_by_their_order_index_1 works_done_by_their_order_index_2 works_done_by_their_order_index_3 works_done_by_their_order_index works_done_by_their_order eliminating_rule_index_0 eliminating_rule_index_1 eliminating_rule_index eliminating_rule cost
from classiq import (
    construct_combinatorial_optimization_model,
    execute,
    set_execution_preferences,
    show,
    synthesize,
)
from classiq.applications.combinatorial_optimization import OptimizerConfig, QAOAConfig
from classiq.execution import ExecutionPreferences, IBMBackendPreferences

qaoa_config = QAOAConfig(num_layers=8, penalty_energy=20.0)

optimizer_config = OptimizerConfig(max_iteration=1, alpha_cvar=0.6)

qmod = construct_combinatorial_optimization_model(
    pyo_model=tasks_model_large,
    qaoa_config=qaoa_config,
    optimizer_config=optimizer_config,
)

backend_preferences = ExecutionPreferences(
    backend_preferences=ClassiqBackendPreferences(backend_name="aer_simulator")
)

qmod = set_execution_preferences(qmod, backend_preferences)
from classiq import write_qmod

write_qmod(qmod, "task_scheduling_problem_large")
qprog = synthesize(qmod)
show(qprog)
Opening: https://platform.classiq.io/circuit/d48a3b5a-103e-402e-b81c-544840912860?version=0.41.0.dev39%2B79c8fd0855
res = execute(qprog).result()

As the search space here is much larger and involving many qubits, the optimizer takes much more time and might not converge to a legal solution

And print the optimization results:

import pandas as pd

from classiq.applications.combinatorial_optimization import (
    get_optimization_solution_from_pyo,
)

solution = get_optimization_solution_from_pyo(
    tasks_model_large,
    vqe_result=res[0].value,
    penalty_energy=qaoa_config.penalty_energy,
)
optimization_result = pd.DataFrame.from_records(solution)
optimization_result.sort_values(by="cost", ascending=True).head(5)
probability cost solution count
20 0.001 105.0 [0, 0, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, ... 1
292 0.001 105.0 [0, 0, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, ... 1
17 0.001 140.0 [1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, ... 1
777 0.001 140.0 [1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, ... 1
978 0.001 140.0 [0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, ... 1
idx = optimization_result.cost.idxmin()
print(
    "x =", optimization_result.solution[idx], ", cost =", optimization_result.cost[idx]
)
x = [0, 0, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0] , cost = 104.99999999999997

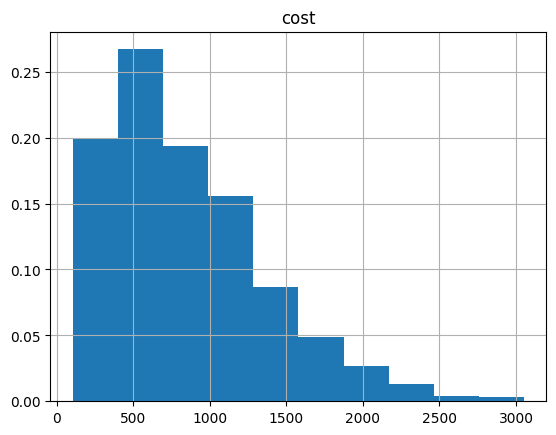

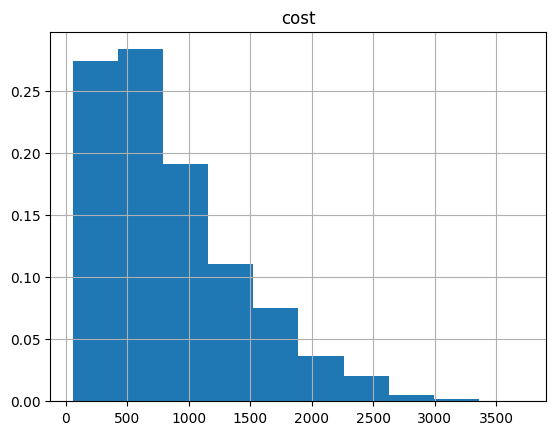

And the histogram:

optimization_result.hist("cost", weights=optimization_result["probability"])
array([[<Axes: title={'center': 'cost'}>]], dtype=object)

png

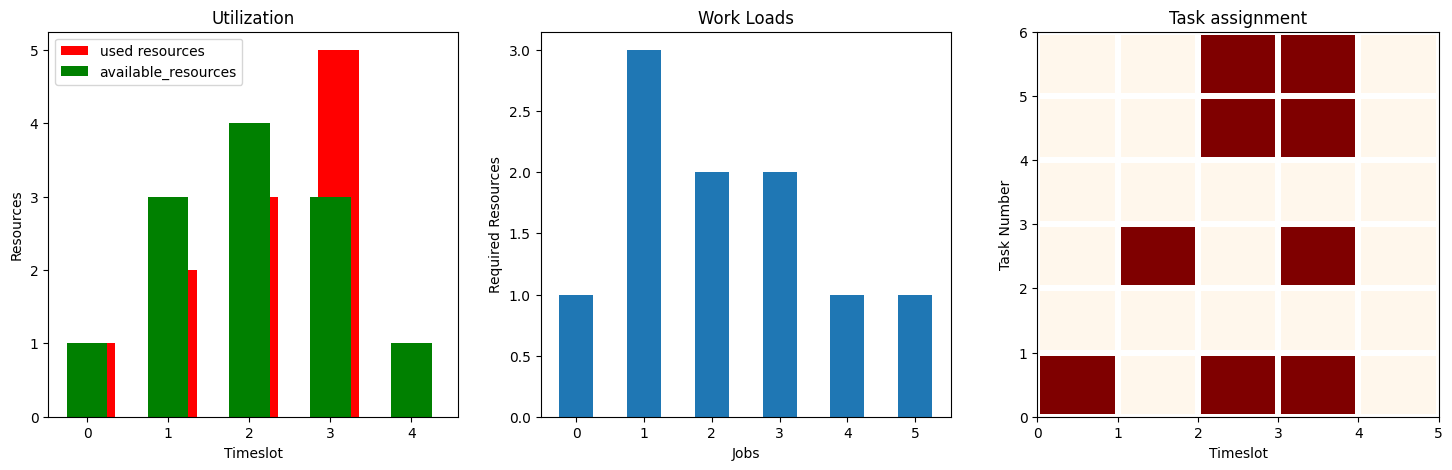

Best solution

qaoa_solution_large = np.array(
    optimization_result.solution[optimization_result.cost.idxmin()]
).reshape(num_timeslots, len(G.nodes))
plot_workflow(qaoa_solution_large)

png

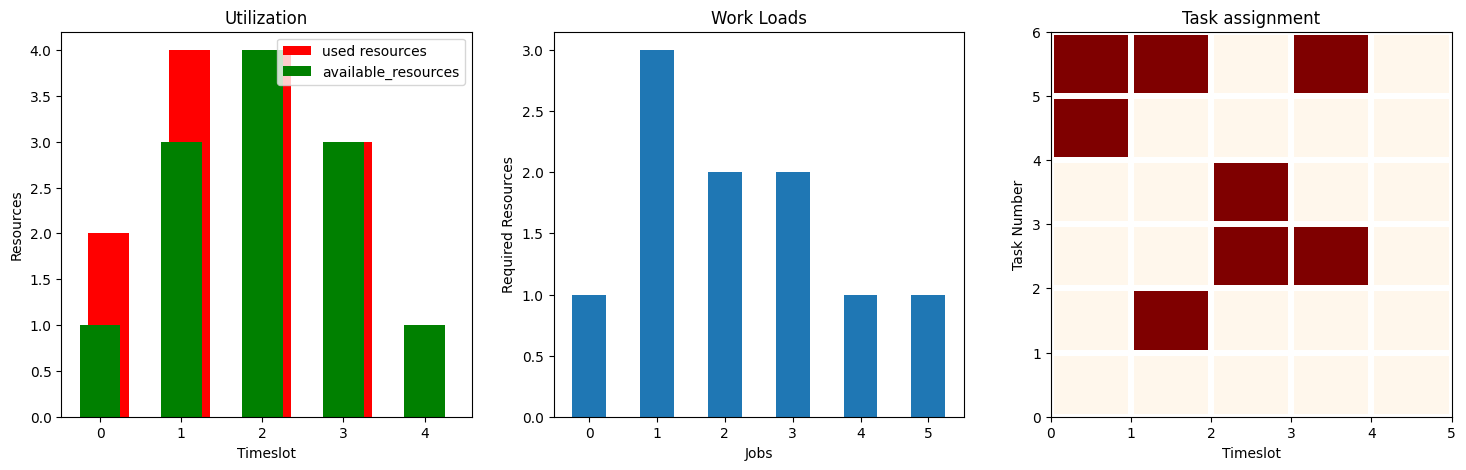

Classical solution for the large problem

from pyomo.opt import SolverFactory

solver = SolverFactory("couenne")
solver.solve(tasks_model_large)

tasks_model_large.display()
Model task_scheduling

  Variables:
    x : Size=30, Index=x_index
        Key    : Lower : Value                  : Upper : Fixed : Stale : Domain
        (0, 0) :     0 :                    1.0 :     1 : False : False : Binary
        (0, 1) :     0 :                    0.0 :     1 : False : False : Binary
        (0, 2) :     0 :                    0.0 :     1 : False : False : Binary
        (0, 3) :     0 :                    0.0 :     1 : False : False : Binary
        (0, 4) :     0 :                    0.0 :     1 : False : False : Binary
        (0, 5) :     0 :                    0.0 :     1 : False : False : Binary
        (1, 0) :     0 :                    0.0 :     1 : False : False : Binary
        (1, 1) :     0 :                    1.0 :     1 : False : False : Binary
        (1, 2) :     0 :                    0.0 :     1 : False : False : Binary
        (1, 3) :     0 :                    0.0 :     1 : False : False : Binary
        (1, 4) :     0 :                    0.0 :     1 : False : False : Binary
        (1, 5) :     0 :                    0.0 :     1 : False : False : Binary
        (2, 0) :     0 :                    0.0 :     1 : False : False : Binary
        (2, 1) :     0 : -6.666389110910511e-13 :     1 : False : False : Binary
        (2, 2) :     0 :                    1.0 :     1 : False : False : Binary
        (2, 3) :     0 :                    1.0 :     1 : False : False : Binary
        (2, 4) :     0 :                    0.0 :     1 : False : False : Binary
        (2, 5) :     0 :                    0.0 :     1 : False : False : Binary
        (3, 0) :     0 :                    0.0 :     1 : False : False : Binary
        (3, 1) :     0 :   6.66577903984944e-13 :     1 : False : False : Binary
        (3, 2) :     0 :                    0.0 :     1 : False : False : Binary
        (3, 3) :     0 :                    0.0 :     1 : False : False : Binary
        (3, 4) :     0 :                    1.0 :     1 : False : False : Binary
        (3, 5) :     0 :                    0.0 :     1 : False : False : Binary
        (4, 0) :     0 :                    0.0 :     1 : False : False : Binary
        (4, 1) :     0 :  6.100710610707113e-17 :     1 : False : False : Binary
        (4, 2) :     0 :                    0.0 :     1 : False : False : Binary
        (4, 3) :     0 :                    0.0 :     1 : False : False : Binary
        (4, 4) :     0 :                    0.0 :     1 : False : False : Binary
        (4, 5) :     0 :                    1.0 :     1 : False : False : Binary

  Objectives:
    cost : Size=1, Index=None, Active=True
        Key  : Active : Value
        None :   True :   5.0

  Constraints:
    all_works_are_done : Size=6
        Key : Lower : Body : Upper
          0 :   1.0 :  1.0 :   1.0
          1 :   1.0 :  1.0 :   1.0
          2 :   1.0 :  1.0 :   1.0
          3 :   1.0 :  1.0 :   1.0
          4 :   1.0 :  1.0 :   1.0
          5 :   1.0 :  1.0 :   1.0
    capacity_is_valid : Size=5
        Key : Lower : Body               : Upper
          0 :  None :                1.0 :   1.0
          1 :  None :                3.0 :   3.0
          2 :  None :     3.999999999998 :   4.0
          3 :  None : 1.0000000000019997 :   3.0
          4 :  None : 1.0000000000000002 :   1.0
    works_done_by_their_order : Size=105
        Key          : Lower : Body                  : Upper
        (0, 1, 0, 0) :   0.0 :                   0.0 :   0.0
        (0, 1, 1, 0) :   0.0 :                   0.0 :   0.0
        (0, 1, 1, 1) :   0.0 :                   0.0 :   0.0
        (0, 1, 2, 0) :   0.0 :                   0.0 :   0.0
        (0, 1, 2, 1) :   0.0 :                   0.0 :   0.0
        (0, 1, 2, 2) :   0.0 :                  -0.0 :   0.0
        (0, 1, 3, 0) :   0.0 :                   0.0 :   0.0
        (0, 1, 3, 1) :   0.0 :                   0.0 :   0.0
        (0, 1, 3, 2) :   0.0 :                  -0.0 :   0.0
        (0, 1, 3, 3) :   0.0 :                   0.0 :   0.0
        (0, 1, 4, 0) :   0.0 :                   0.0 :   0.0
        (0, 1, 4, 1) :   0.0 :                   0.0 :   0.0
        (0, 1, 4, 2) :   0.0 :                  -0.0 :   0.0
        (0, 1, 4, 3) :   0.0 :                   0.0 :   0.0
        (0, 1, 4, 4) :   0.0 :                   0.0 :   0.0
        (0, 2, 0, 0) :   0.0 :                   0.0 :   0.0
        (0, 2, 1, 0) :   0.0 :                   0.0 :   0.0
        (0, 2, 1, 1) :   0.0 :                   0.0 :   0.0
        (0, 2, 2, 0) :   0.0 :                   0.0 :   0.0
        (0, 2, 2, 1) :   0.0 :                   0.0 :   0.0
        (0, 2, 2, 2) :   0.0 :                   0.0 :   0.0
        (0, 2, 3, 0) :   0.0 :                   0.0 :   0.0
        (0, 2, 3, 1) :   0.0 :                   0.0 :   0.0
        (0, 2, 3, 2) :   0.0 :                   0.0 :   0.0
        (0, 2, 3, 3) :   0.0 :                   0.0 :   0.0
        (0, 2, 4, 0) :   0.0 :                   0.0 :   0.0
        (0, 2, 4, 1) :   0.0 :                   0.0 :   0.0
        (0, 2, 4, 2) :   0.0 :                   0.0 :   0.0
        (0, 2, 4, 3) :   0.0 :                   0.0 :   0.0
        (0, 2, 4, 4) :   0.0 :                   0.0 :   0.0
        (0, 3, 0, 0) :   0.0 :                   0.0 :   0.0
        (0, 3, 1, 0) :   0.0 :                   0.0 :   0.0
        (0, 3, 1, 1) :   0.0 :                   0.0 :   0.0
        (0, 3, 2, 0) :   0.0 :                   0.0 :   0.0
        (0, 3, 2, 1) :   0.0 :                   0.0 :   0.0
        (0, 3, 2, 2) :   0.0 :                   0.0 :   0.0
        (0, 3, 3, 0) :   0.0 :                   0.0 :   0.0
        (0, 3, 3, 1) :   0.0 :                   0.0 :   0.0
        (0, 3, 3, 2) :   0.0 :                   0.0 :   0.0
        (0, 3, 3, 3) :   0.0 :                   0.0 :   0.0
        (0, 3, 4, 0) :   0.0 :                   0.0 :   0.0
        (0, 3, 4, 1) :   0.0 :                   0.0 :   0.0
        (0, 3, 4, 2) :   0.0 :                   0.0 :   0.0
        (0, 3, 4, 3) :   0.0 :                   0.0 :   0.0
        (0, 3, 4, 4) :   0.0 :                   0.0 :   0.0
        (1, 5, 0, 0) :   0.0 :                   0.0 :   0.0
        (1, 5, 1, 0) :   0.0 :                   0.0 :   0.0
        (1, 5, 1, 1) :   0.0 :                   0.0 :   0.0
        (1, 5, 2, 0) :   0.0 :                  -0.0 :   0.0
        (1, 5, 2, 1) :   0.0 :                  -0.0 :   0.0
        (1, 5, 2, 2) :   0.0 :                  -0.0 :   0.0
        (1, 5, 3, 0) :   0.0 :                   0.0 :   0.0
        (1, 5, 3, 1) :   0.0 :                   0.0 :   0.0
        (1, 5, 3, 2) :   0.0 :                   0.0 :   0.0
        (1, 5, 3, 3) :   0.0 :                   0.0 :   0.0
        (1, 5, 4, 0) :   0.0 :                   0.0 :   0.0
        (1, 5, 4, 1) :   0.0 :                   0.0 :   0.0
        (1, 5, 4, 2) :   0.0 :                   0.0 :   0.0
        (1, 5, 4, 3) :   0.0 :                   0.0 :   0.0
        (1, 5, 4, 4) :   0.0 : 6.100710610707113e-17 :   0.0
        (2, 4, 0, 0) :   0.0 :                   0.0 :   0.0
        (2, 4, 1, 0) :   0.0 :                   0.0 :   0.0
        (2, 4, 1, 1) :   0.0 :                   0.0 :   0.0
        (2, 4, 2, 0) :   0.0 :                   0.0 :   0.0
        (2, 4, 2, 1) :   0.0 :                   0.0 :   0.0
        (2, 4, 2, 2) :   0.0 :                   0.0 :   0.0
        (2, 4, 3, 0) :   0.0 :                   0.0 :   0.0
        (2, 4, 3, 1) :   0.0 :                   0.0 :   0.0
        (2, 4, 3, 2) :   0.0 :                   0.0 :   0.0
        (2, 4, 3, 3) :   0.0 :                   0.0 :   0.0
        (2, 4, 4, 0) :   0.0 :                   0.0 :   0.0
        (2, 4, 4, 1) :   0.0 :                   0.0 :   0.0
        (2, 4, 4, 2) :   0.0 :                   0.0 :   0.0
        (2, 4, 4, 3) :   0.0 :                   0.0 :   0.0
        (2, 4, 4, 4) :   0.0 :                   0.0 :   0.0
        (3, 4, 0, 0) :   0.0 :                   0.0 :   0.0
        (3, 4, 1, 0) :   0.0 :                   0.0 :   0.0
        (3, 4, 1, 1) :   0.0 :                   0.0 :   0.0
        (3, 4, 2, 0) :   0.0 :                   0.0 :   0.0
        (3, 4, 2, 1) :   0.0 :                   0.0 :   0.0
        (3, 4, 2, 2) :   0.0 :                   0.0 :   0.0
        (3, 4, 3, 0) :   0.0 :                   0.0 :   0.0
        (3, 4, 3, 1) :   0.0 :                   0.0 :   0.0
        (3, 4, 3, 2) :   0.0 :                   0.0 :   0.0
        (3, 4, 3, 3) :   0.0 :                   0.0 :   0.0
        (3, 4, 4, 0) :   0.0 :                   0.0 :   0.0
        (3, 4, 4, 1) :   0.0 :                   0.0 :   0.0
        (3, 4, 4, 2) :   0.0 :                   0.0 :   0.0
        (3, 4, 4, 3) :   0.0 :                   0.0 :   0.0
        (3, 4, 4, 4) :   0.0 :                   0.0 :   0.0
        (4, 5, 0, 0) :   0.0 :                   0.0 :   0.0
        (4, 5, 1, 0) :   0.0 :                   0.0 :   0.0
        (4, 5, 1, 1) :   0.0 :                   0.0 :   0.0
        (4, 5, 2, 0) :   0.0 :                   0.0 :   0.0
        (4, 5, 2, 1) :   0.0 :                   0.0 :   0.0
        (4, 5, 2, 2) :   0.0 :                   0.0 :   0.0
        (4, 5, 3, 0) :   0.0 :                   0.0 :   0.0
        (4, 5, 3, 1) :   0.0 :                   0.0 :   0.0
        (4, 5, 3, 2) :   0.0 :                   0.0 :   0.0
        (4, 5, 3, 3) :   0.0 :                   0.0 :   0.0
        (4, 5, 4, 0) :   0.0 :                   0.0 :   0.0
        (4, 5, 4, 1) :   0.0 :                   0.0 :   0.0
        (4, 5, 4, 2) :   0.0 :                   0.0 :   0.0
        (4, 5, 4, 3) :   0.0 :                   0.0 :   0.0
        (4, 5, 4, 4) :   0.0 :                   0.0 :   0.0
    eliminating_rule : Size=15
        Key    : Lower : Body                  : Upper
        (0, 3) :   0.0 :                   0.0 :   0.0
        (0, 4) :   0.0 :                   0.0 :   0.0
        (1, 0) :   0.0 :                   0.0 :   0.0
        (1, 4) :   0.0 : 6.100710610707113e-17 :   0.0
        (2, 0) :   0.0 :                   0.0 :   0.0
        (2, 3) :   0.0 :                   0.0 :   0.0
        (2, 4) :   0.0 :                   0.0 :   0.0
        (3, 0) :   0.0 :                   0.0 :   0.0
        (3, 3) :   0.0 :                   0.0 :   0.0
        (3, 4) :   0.0 :                   0.0 :   0.0
        (4, 0) :   0.0 :                   0.0 :   0.0
        (4, 1) :   0.0 :                   0.0 :   0.0
        (4, 4) :   0.0 :                   0.0 :   0.0
        (5, 0) :   0.0 :                   0.0 :   0.0
        (5, 1) :   0.0 :                   0.0 :   0.0
classical_solution = np.array(
    [
        int(pyo.value(tasks_model_large.x[idx]))
        for idx in np.ndindex(num_timeslots, len(G.nodes))
    ]
).reshape(num_timeslots, len(G.nodes))
plot_workflow(classical_solution)

png

References

[1]: Pakhomchik et. al. "Solving workflow scheduling problems with QUBO modeling." arXiv preprint arXiv:2205.04844 (2022).
