Quantum Phase Estimation for Solving Matrix Eigenvalues

View on GitHub Experiment in the IDE

Quantum Phase Estimation (QPE) is a key algorithm in quantum computing, allowing you to estimate the phase (or eigenvalue) relating to a Hermitian matrix. The algorithm is designed such that given the inputs of a matrix \(M\) and an eigenvalue \({|\psi\rangle}\), the output obtained is \(\theta\), where

$ U{|\psi\rangle} = e^{2\pi i\theta}{|\psi\rangle} , U = e^{2\pi iM} $.

By measuring the accumulated phase, the QPE algorithm calculates the eigenvalues relating to the chosen input vector. To read more about the QPE algorithm and its method for achieving the phase, refer to [1].

Generally speaking, when the eigenvectors of the matrix are not known in advance yet the eigenvalues are sought, you can choose a random vector \({|v\rangle}\) for the algorithm’s initial state. Some eigenvalues will be found as the vector can be described in the matrix's basis, defined by the set of eigenvalues of \(M\): {\(\psi_i\)}. Generally, any vector can be written as a superposition of any basis set, thus

\({|v\rangle} = \sum_i a_i{|\psi_i\rangle}\)

and

\(U{|v\rangle} = \sum_i a_i e^{2\pi i\theta_i}{|\psi_i\rangle}\).

Using execution with enough shots, you can obtain this set of \(\theta_i\); i.e., a subset of the matrix's eigenvalues.

This tutorial presents a generic usage of the QPE algorithm:

  1. Define a matrix.

  2. Initialize a state either with its eigenstate or with a random vector.

  3. Choose a resolution for the solution.

  4. Find the related eigenvalues using QPE and analyze the results.

Prerequisites

This tutorial uses external libraries.

import itertools  # noqa
import math
from itertools import product
from typing import List, cast

import numpy as np
from numpy import kron, linalg as LA

1. Setting a Specific Example

1.1. Set the Matrix

Define the matrix to submit. This can be any Hermitian matrix with size \(2^n\) by \(2^n\) with \(n\) a positive integer. Throughout the code this matrix is given in the variable M.

M = np.array([[0, 3, 4, 0], [-0.8, 3, 0, 0], [1, 0, -0.5, 5], [0, 0, 0, -0.75]])

M = np.array(
    [
        [0.38891555, 0.23315811, 0.21499372, 0.06119557],
        [0.23315811, 0.44435328, 0.25197881, -0.13087919],
        [0.21499372, 0.25197881, 0.44116509, -0.01961855],
        [0.06119557, -0.13087919, -0.01961855, 0.32556608],
    ]
)

M_t = M.transpose()

M = (M + M_t) / 2

1.2. Set the Initial Vector

Choose the vector that will be defined later as the initial condition for the run. There are two options: 1. Define your own initial vector in the variable int_vec, while setting the parameter eigen_vec as False. 2. Set eigen_vec to True, then you can choose the index ev of the eigenvalue that will be set as the initial state.

eigen_vec = False
ev = 1

if eigen_vec:
    w, v = LA.eig(M)
    print("the eigenvalues are", w)
    print("the eigenvectors are", v, sep="\n")
    int_vec = v[:, ev]
else:
    int_vec = np.random.rand(np.shape(M)[0])

print("Your initial state is", int_vec)

Your initial state is [0.80216327 0.54823687 0.6653769  0.62012979]

2. Constructing Auxiliary Functions

Defining some auxiliary functions is essential for designing the QPE in a modular fashion.

2.1 Classical Functions

2.1.1 Pauli Decomposition

To translate the matrix into quantum circuit language, write the matrix in the form of a list of strings of composite Pauli operators.

Paulidict = {
    "I": np.array([[1, 0], [0, 1]], dtype=np.complex128),
    "Z": np.array([[1, 0], [0, -1]], dtype=np.complex128),
    "X": np.array([[0, 1], [1, 0]], dtype=np.complex128),
    "Y": np.array([[0, -1j], [1j, 0]], dtype=np.complex128),
}


# generate all combinations of Pauli strings of size n
def generate_all_pauli_strings(seq, n):
    for s in product(seq, repeat=n):
        yield "".join(s)


# convert a Paulistring of size n to 2**n X 2**n matrix
def pauli_string_2mat(seq):
    myPmat = Paulidict[seq[0]]
    for p in seq[1:]:
        myPmat = kron(myPmat, Paulidict[p])
    return myPmat


# Hilbert-Schmidt-Product of two matrices M1, M2
def hilbert_schmidt(M1, M2):
    return (np.dot(M1.conjugate().transpose(), M2)).trace()


# naive decomposition, running over all HS products for all Pauli strings
def lcu_naive(H):
    assert H.shape[0] == H.shape[1], "matrix is not square"
    assert H.shape[0] != 0, "matrix is of size 0"
    assert H.shape[0] & (H.shape[0] - 1) == 0, "matrix size is not 2**n"

    n = int(np.log2(H.shape[0]))
    myPauliList = list(generate_all_pauli_strings("IZXY", n))

    mylist = []

    for pstr in myPauliList:
        co = (1 / 2**n) * hilbert_schmidt(pauli_string_2mat(pstr), H)
        if co != 0:
            mylist = mylist + [(pstr, co)]

    return mylist

2.1.2 Parser to the PauliTerm struct

A Hamiltonian is defined by a list of PauliTerm structs. Define a function that transforms between the Pauli list representation to this struct presentation.

from classiq import Pauli, PauliTerm

my_list = {"I": Pauli.I, "X": Pauli.X, "Y": Pauli.Y, "Z": Pauli.Z}


def pauli_str_to_enums(pauli):
    return [my_list[s] for s in pauli]


def pauli_operator_to_hamiltonian(pauli_list):
    return [
        PauliTerm(
            pauli=pauli_str_to_enums(pauli), coefficient=cast(complex, coeff).real
        )
        for pauli, coeff in pauli_list
    ]

2.1.3 Matrix Rescaling

As QPE obtains a phase in the form \(e^{2\pi i\theta}\), there is meaning only for \(\theta \in [0,1)\). However, the matrix M can have any eigenvalue. To fix this discrepancy, the values of the matrix stretch to be rescaled. If \(\theta \in [\lambda_{min}, \lambda_{max}]\) you can use a normalization function to map those values into \([0, 1-1/{2^m}]\), where \(m\) is the size of the QPE register.

Perform the normalization procedure by:

a. Defining the function normalization_params() that finds a rough estimation for the eigenvalue with the largest absolute value by adding together all the Pauli coefficients and multiplying by the matrix's dimensions. This yields a value \(\lambda\) (which is referred to in the code as normalization_coeff) and now you can assume that the domain is \(\theta \in [-\lambda, \lambda]\). In general, you can build a more accurate assessment that decreases the span of solutions and thus achieves a better resolution.

def normalization_params(pauli_list):
    return len(pauli_list[0][0]) * sum(
        [abs(pauli_list[k][1]) for k in range(len(pauli_list))]
    )

b. Defining the function normalize_hamiltonian that shifts the matrix by adding \(\lambda*I^n\) to the Pauli list. (The evaluated span is thus \(\theta\in[0, 2*\lambda]\)) and normalizes it by multiplying all the Pauli coefficients by \((1-1/2^n)/(2*\lambda)\) (the evaluated span is then \(\theta\in [0, 1-1/2^n]\), as required.)

def normalize_hamiltonian(pauli_list, normalization_coeff, k):
    list_size = len(pauli_list)
    num_qubits = len(pauli_list[0][0])
    normalization = (1 - 1 / (2**k)) / (2 * normalization_coeff)
    normalized_list = [
        (pauli_list[k][0], pauli_list[k][1] * normalization) for k in range(list_size)
    ]
    if "I" * num_qubits in [pauli_list[k][0] for k in range(list_size)]:
        id_index = [y[0] for y in pauli_list].index("I" * num_qubits)
        normalized_list[id_index] = (
            "I" * num_qubits,
            (pauli_list[id_index][1] + normalization_coeff) * normalization,
        )
    else:
        normalized_list.append(("I" * num_qubits, normalization_coeff * normalization))

    return normalized_list

2.1.3 QPE Precision Estimator

For QPE algorithms, the precision is set by phase register size \(m\), such that the resolution is \(1/{2^m}\). If the matrix needs to be normalized, the resolution will be distorted. In the case of normalization, the span of results for the QPE stretches between the lowest and highest possible phase, thus the resolution is mapped to \(normalization-coefficient/{2^m} ~\sim 1/{((\lambda_{max}-\lambda_{min})*2^m)}\).

def get_qpe_precision(pauli_list, desired_resolution):
    nqpe = math.log2(2 * normalization_params(pauli_list) / desired_resolution)
    return math.ceil(nqpe)

2.2 Quantum Functions

2.2.1 A Flexible QPE

Define a flexible QPE function, which allows you to prescribe the "telescopic" expansion of the powered unitary via the unitary_with_power "QCallable" See the High Level Modeling Flexible QPE tutorial for more details.

from classiq import (
    CInt,
    H,
    Output,
    QArray,
    QBit,
    QCallable,
    apply_to_all,
    bind,
    control,
    invert,
    qft,
    qfunc,
    repeat,
)


@qfunc
def my_qpe_flexible(
    unitary_with_power: QCallable[CInt, QArray[QBit]],
    precision: CInt,
    state: QArray[QBit],
    phase: Output[QArray[QBit, "precision"]],
) -> None:
    allocate(precision, phase)
    apply_to_all(H, phase)

    repeat(
        count=precision,
        iteration=lambda index: control(
            ctrl=phase[index],
            operand=lambda: unitary_with_power(2**index, state),
        ),
    )

    invert(lambda: qft(phase))

2.2.2 A First Order Suzuki Trotter with power-logic

Wrap the Trotter-Suzuki function of order 1 with a "power-logic" for the repetition as a function of its power.

from classiq import CArray, CReal, suzuki_trotter
from classiq.qmod.symbolic import ceiling, log


@qfunc
def suzuki_trotter1_with_power_logic(
    hamiltonian: CArray[PauliTerm],
    pw: CInt,
    r0: CInt,
    reps_scaling_factor: CReal,
    evolution_coefficient: CReal,
    target: QArray[QBit],
) -> None:
    suzuki_trotter(
        hamiltonian,
        evolution_coefficient=evolution_coefficient * pw,
        order=1,
        repetitions=r0 * ceiling(reps_scaling_factor ** (log(pw, 2))),
        qbv=target,
    )

2.2.3 A Unitary with power-logic

As an alternative to the Trotter-Suzuki formula, you can work with an exact unitary decomposition. In this case, the power-logic is naive:

from classiq import power, unitary


@qfunc
def unitary_with_power_logic(
    pw: CInt, matrix: CArray[CArray[CReal]], target: QArray[QBit]
) -> None:
    power(pw, lambda: unitary(elements=matrix, target=target))

3. Preparing the Matrix for QPE

pauli_ops = lcu_naive(M)
print(pauli_ops)

[('II', (0.39999999999999997+0j)), ('IZ', (0.015040319999999996+0j)), ('IX', (0.10676978000000001+0j)), ('ZI', (0.016634415000000013+0j)), ('ZZ', (-0.042759185000000005+0j)), ('ZX', (0.12638833+0j)), ('XI', (0.042057264999999996+0j)), ('XZ', (0.172936455+0j)), ('XX', (0.15658719+0j)), ('YY', (0.09539162+0j))]

N = len(pauli_ops[0][0])
print("number of qubits: ", N)

number of qubits:  2

3.1 Choose the Algorithm's Precision

Choose the precision using the n_qpe parameter or set your desired resolution. If you choose the resolution and set the parameter get_recommended_qpe_size parameter to True, the number of qubits is calculated for you accordingly.

n_qpe = 8

# recommended QPE_SIZE:
get_recommended_qpe_size = False

desired_resolution = 0.02


if get_recommended_qpe_size:
    n_qpe = get_qpe_precision(pauli_ops, desired_resolution)

print("number of qubits for QPE is", n_qpe)

number of qubits for QPE is 8

3.2 Normalize the Matrix

Transform the matrix to ensure its eigenvalues are between \(0\) to \(1-(1/2^m)\). The QPE procedure is performed on the new normalized matrix. After the phases are obtained, gather the original phases of the pre-normalized matrix by performing opposite steps to this normalization procedure.

  • If the matrix eigenvalues are naturally between the values \(0\) to \(1-(1/2^n)\), you may not want to normalize them as that may enlarge the span, thus lowering the resolution of the algorithm. In this case, skip those lines or change the value of normalize to False.
# normalizing the operator
## create a matrix such that its normalized version has eigenvalues of [0,1/2^k] where k is the resolution of the QPE
normalize = True
if normalize:
    normalization_coeff = normalization_params(pauli_ops)
    new_pauli_list = normalize_hamiltonian(pauli_ops, normalization_coeff, n_qpe)
    print(new_pauli_list)

    size = math.sqrt(M.size)
    I = np.eye(int(size))

    Mnew = (
        (M + normalization_coeff * I) * (1 - 1 / (2**n_qpe)) / (2 * normalization_coeff)
    )

else:
    Mnew = M

[('II', (0.582852238955473+0j)), ('IZ', (0.003188749529016948+0j)), ('IX', (0.02263662513086446+0j)), ('ZI', (0.0035267190456534513+0j)), ('ZZ', (-0.009065520615911005+0j)), ('ZX', (0.026796020813436065+0j)), ('XI', (0.00891670416324194+0j)), ('XZ', (0.036664847518610696+0j)), ('XX', (0.033198584096787005+0j)), ('YY', (0.020224302631005442+0j))]

4. Building the Quantum Model

Create a quantum model of the QPE algorithm using the Classiq platform with your desired constraints and preferences.

There are generally two methods for inserting the matrix into the QFT: unitary implementation, which is exact but long; and exponentiation, which is approximated but shorter in depth. Choose the parameter IS_EXACT to indicate the chosen method.

import scipy

from classiq import Output, QNum, allocate, create_model, if_, prepare_amplitudes

IS_EXACT = True

my_amp = (
    int_vec / np.linalg.norm(int_vec)
).tolist()  # amplitude is given by the eignevector


@qfunc
def main(phase_result: Output[QNum[n_qpe, False, n_qpe]]) -> None:
    state = QArray("state")
    prepare_amplitudes(my_amp, 0.0, state)
    phase_array = QArray("phase_array")
    my_qpe_flexible(
        unitary_with_power=lambda pw, target: if_(
            condition=IS_EXACT,
            then=lambda: unitary_with_power_logic(
                matrix=scipy.linalg.expm(1j * 2 * np.pi * Mnew).tolist(),
                pw=pw,
                target=target,
            ),
            else_=lambda: suzuki_trotter1_with_power_logic(
                hamiltonian=pauli_operator_to_hamiltonian(pauli_ops),
                pw=pw,
                r0=2,
                reps_scaling_factor=1.8,
                evolution_coefficient=-2 * np.pi,
                target=target,
            ),
        ),
        precision=n_qpe,
        state=state,
        phase=phase_array,
    )
    bind(phase_array, phase_result)


qmod = create_model(main)

Set execution preferences:

from classiq import set_execution_preferences
from classiq.execution import ExecutionPreferences

num_shots = 10000
qmod = set_execution_preferences(qmod, ExecutionPreferences(num_shots=num_shots))

from classiq import write_qmod

write_qmod(qmod, "qpe_for_matrix", decimal_precision=15)

Synthesize the circuit and display it with the analyzer.

from classiq import show, synthesize

qprog = synthesize(qmod)
show(qprog)

Opening: https://platform.classiq.io/circuit/11f3b909-2761-49cb-b3a4-1112d8036df6?version=0.41.0.dev39%2B79c8fd0855

5. Measuring and Analyzing the Generated Circuit

Execute the circuit and analyze the results obtained from the quantum program, in comparison to the expected classical ones.

5.1. Run the Circuit

Send the circuit for execution by a chosen backend.

from classiq import execute

results = execute(qprog).result()

from classiq.execution import ExecutionDetails

results = results[0].value

Choose the number of eigenvalues to extract from the poll of results. The number_of_solutions value determines how many results from qpe_results are analyzed.

number_of_solutions = 2  # number of phases sought

5.2. Translate into Eigenvalues (Phases)

Here, the value in the results vector is translated from a binary number into a full solution for the eigenvalues.

Initially, use the parsed results to obtain the phases of the normalized matrix.

dec_sol_vec = [
    sampled_state.state["phase_result"]
    for sampled_state in results.parsed_counts[:number_of_solutions]
]

print("Your decimal solutions are", dec_sol_vec, sep="\n")

Your decimal solutions are
[0.6875, 0.58203125]

Then these decimal values are mapped back into the original values; i.e., renormalized into the original span.

# renormalize into the "real" solution -
if normalize:
    solution = [
        ((value * 2 * normalization_coeff / (1 - (1 / 2**n_qpe))) - normalization_coeff)
        for value in dec_sol_vec
    ]
else:
    solution = dec_sol_vec

These are the results of the phases (matrix eigenvalues):

print(solution)

[0.8935902927058823, 0.39612765552941154]

These are the results, including the error contributed from the resolution (the number of qubits participating in the QPE):

if normalize:
    energy_resolution = (
        (1 / (2**n_qpe)) * 2 * normalization_coeff / (1 - (1 / 2**n_qpe))
    )
else:
    energy_resolution = 1 / (2**n_qpe)

print("the resolution of results is", energy_resolution)

for sol in solution:
    print(
        "the solutions are between",
        sol - energy_resolution,
        "and",
        sol + energy_resolution,
    )

    ### if zero or exceeds the normalization range, need to add conditions

the resolution of results is 0.018424542117647057
the solutions are between 0.8751657505882352 and 0.9120148348235294
the solutions are between 0.3777031134117645 and 0.4145521976470586

5.3. Compare to Exact Results

w, v = LA.eig(M)

print("the eigenvalues are", w)
print("the eigenvectors are", v, sep="\n")

the eigenvalues are [0.9 0.4 0.1 0.2]
the eigenvectors are
[[ 0.51510515  0.41480695  0.5588446  -0.50029451]
 [ 0.61747259 -0.30596016 -0.64233734 -0.3354381 ]
 [ 0.58498122  0.11134965  0.09256217  0.79801659]
 [-0.10578874  0.8496616  -0.51626321  0.01887348]]

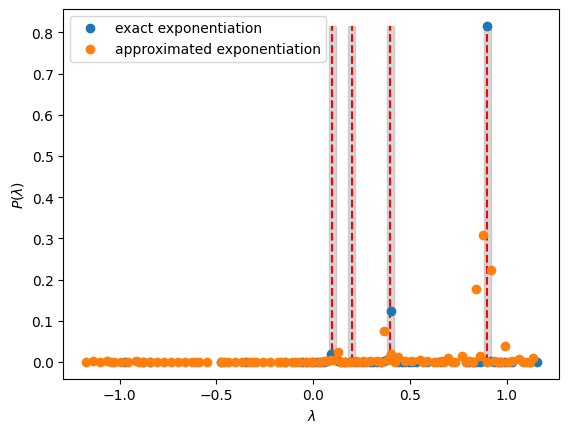

5.4. Find the Solution's Histogram

import matplotlib.pyplot as plt
import numpy as np

energy_vec = []
energy_prob = []

for sampled_state in results.parsed_counts:
    temp = sampled_state.state["phase_result"]
    if normalize:
        temp2 = (
            temp * 2 * normalization_coeff / (1 - (1 / 2**n_qpe))
        ) - normalization_coeff
    else:
        temp2 = temp
    energy_vec.append(temp2)
    energy_prob.append(sampled_state.shots / num_shots)

plt.plot(energy_vec, energy_prob, ".")
plt.show()

png

References

[1]: Michael A. Nielsen and Isaac L. Chuang. 2011. Quantum Computation and Quantum Information: 10th Anniversary Edition, Cambridge University Press, New York, NY, USA.
