Uncomputation

Uncomputation is the process of reversing the effects of quantum operations, restoring the state of qubits to their initial \(|0\rangle\) state. Failing to properly uncompute intermediate results can lead to incorrect final measurement results and wasted resources. In Qmod, intermediate results are typically stored in local variables, which are scoped inside a function and are inaccessible outside of it. Hence, local variables must be used in a way that enables subsequent uncomputation. Specifically, their interactions with other objects must be restrictive to be subsequently disentangled from them.

In order to enforce the restrictions, quantum variable use contexts are classified. Also, explicit declarations are used to specify the intended use of function parameters.

Variable use classification

Use categories

Quantum variables figure in expressions in different contexts. These contexts determine whether and in which way the state of the object can change. There are three use categories in this respect:

• mutable - the object's state may change arbitrarily.
• permutable - the object is mutable "classically" up to a phase, that is, its state may go through computational-basis permutations and phase shifts, but no superposition is introduced or destroyed.
• const - the object is immutable up to a phase, that is, its computational-basis state components remain constant in their magnitude, but their phases may shift.

Use contexts

Following are the use categories of quantum variables in different constructs:

• An argument in a function call is determined by the mutability modifier used in the parameter declaration (mutable by default, or using the keywords permutable and const, see more under Function Declarations).
• If multiple parameters of a function are declared permutable, their combined state may go through permutations. Specifically, swapping qubits between two permutable parameters is allowed.
• Use as right-value quantum expression is const. Right-value expressions occur in the following contexts:
  • On the right-hand side of a numeric-assignment and amplitude-encoding assignment.
  • As the condition in control statement.
  • As the argument of phase statement.
• Use as left-value expression in numeric assignment (both out-of-place and in-place) is permutable.
• Use as left-value in amplitude-encoding assignment is mutable (introducing superposition into the state).
• Use as the argument of allocate statement is considered permutable.

Enforcement of parameter restrictions

The parameters of a quantum function may be declared with the modifiers permutable or const. Generally, a const parameter is restricted to const use contexts and a permutable parameter is restricted to either const or permutable use contexts. Violation of these restrictions results in a compilation error.

However, flexibility is often required in the implementation of lower-level building blocks. The cumulative effect of the function on the quantum parameters in these cases satisfies its declared restrictions, but individual operations violate it. Well known examples are the implementation of Toffoli gate, and arithmetic addition in the Fourier bases. Both are permutation-only operations taken as a whole, but internally use Hadamard gates and rotations.

It is not scalable to validate the correct cumulative effect of a description automatically in the general case. But you can suppress the fine-grained enforcement of variable use with the unchecked specifier using the following syntax:

NativePython

qfunc name ( parameters ) unchecked ( unchecked_parameters ) { statements }

unchecked_parameters is a list of one or more comma-separated parameter names

The decorator @qfunc has the optional parameter unchecked declared thus -

unchecked: Optional[list[str]] = None

The argument list contains one or more names of the decorated function parameters

The compiler does not enforce use context restrictions on quantum parameters listed as unchecked.

Examples

Example 1 - Correct use of permutable and const parameters

In the example below, function foo has two parameters - param1 is declared const, and param2 is declared permutable. Their use in foo's body is consistent with their declaration. Note that the restriction on param2 is carried over to its use in the lambda expression passed to apply_to_all. In this case, the parameter of function Z is declared const since it is merely a relative phase flip.

NativePython

qfunc foo(const param1: qnum, permutable output param2: qnum) {
  param2 = param1 + 1;  // OK - assignment LHS is permutable and RHS is const
  apply_to_all(lambda(qb) {
    Z(qb);
  }, param2);  // OK - the parameter of 'Z' is const
}

from classiq import *


@qfunc
def foo(param1: Const[QNum], param2: Output[Permutable[QNum]]):
    param2 |= param1 + 1  # OK - assignment LHS is permutable and RHS is const
    apply_to_all(lambda qb: Z(qb), param1)  # OK - the parameter of 'Z' is const

Example 2 - Incorrect use of permutable and const parameters

The example below demonstrates violations of the restrictions on the use of parameters. Like in the previous example, function foo has two parameters - param1 is declared const, and param2 is declared permutable. However, the use of these parameters in both lines is inconsistent with their declaration.

NativePython

qfunc foo(const param1: qnum, permutable output param2: qnum) {
  param1 += 2;  // Error - LHS is permutable but 'param1' is const
  hadamard_transform(param2);  // Error - the parameter of 'hadamard_transform'
}                              // is mutable but 'param2' is permutable

from classiq import *


@qfunc
def foo(param1: Const[QNum], param2: Output[Permutable[QNum]]):
    param1 += 2  # Error - LHS is permutable but 'param1' is const
    hadamard_transform(param2)  # Error - the parameter of 'hadamard_transform'
    # is mutable but 'param2' is permutable

Example 3 - Unchecked parameter

In the example below, function my_cx implements the CX operation using a simple equivalence - applying phase flip in the Hadamard basis. The cumulative operation on parameter tgt is a state permutation, but individual calls to H are not. The unchecked specifier is used to suppress compiler errors in this case.

NativePython

qfunc my_cx(const ctrl: qbit, permutable tgt: qbit) unchecked (tgt) {
  H(tgt);
  CZ(ctrl, tgt);
  H(tgt);
}

from classiq import *


@qfunc(unchecked=["tgt"])
def my_cx(ctrl: Const[QBit], tgt: Permutable[QBit]):
    H(tgt)
    CZ(ctrl, tgt)
    H(tgt)

Semantics of uncomputation

When a variable is initialized inside the within block of a within-apply statement, it is returned to its uninitialized state after the statement completes. The newly allocated quantum object is uncomputed, and its qubits are reclaimed by the compiler for subsequent use. Likewise, a variable declared locally within a function is only accessible inside the function's scope. The quantum object allocated inside the function may be uncomputed at some later point and its qubits reclaimed. Uncomputation is forced when a function with a local variable is called (directly or indirectly) from the within block of a within-apply statement. For more details on within-apply see Within-apply.

Variables are considered uncomputation candidates from their initialization to the point where they return to being uninitialized (or go out of scope). The following rules guarantee that uncomputation candidates can be handled correctly:

• An uncomputation candidate can only be used in either permutable or const contexts.
• A variable initialized inside a within block of a within-apply statement can only be used in const contexts inside the apply block.
• A variable becomes a dependency of an uncomputation candidate when used in an operation together with the candidate variable, and the latter is used in a non-const context. From that point, the dependency variable is subject to the same rules as the candidate variable, while the latter is in scope.

Violating these rules will result in a compilation error.

Examples

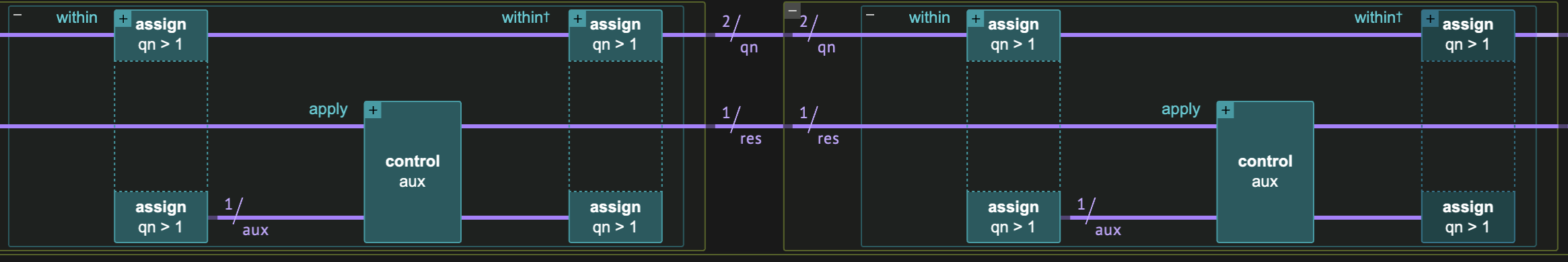

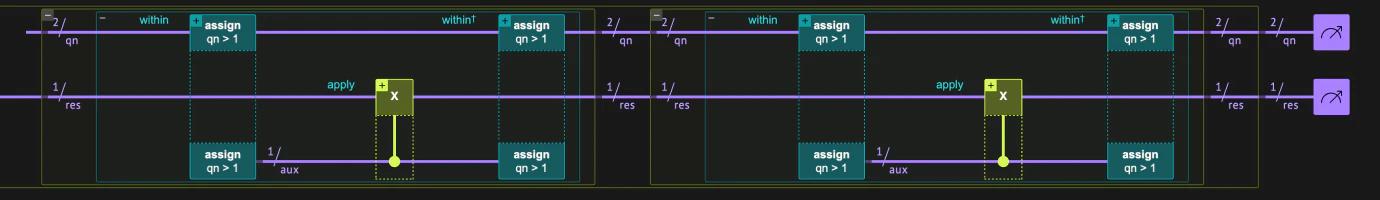

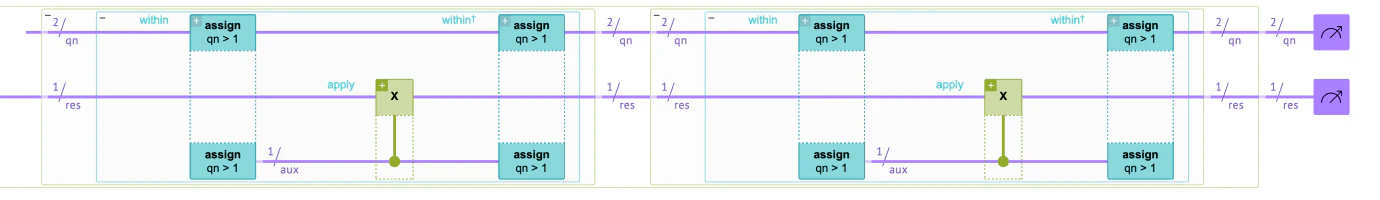

Example 1 - Correct uncomputation in within-apply

The example below demonstrates the use of a local variable initialized inside a within block of a within-apply statement. Variable aux is initialized as the left-value expression of an assignment statement, which is a permutable context. In the apply block, it is used as the condition of a control statement, which is a const context. Both uses are valid, and the variable is uncomputed and freed correctly after the within-apply statement.

NativePython

qfunc main(output qn: qnum, output res: qbit) {
  allocate(2, qn);
  hadamard_transform(qn);
  allocate(1, res);
  aux: qbit;
  within {
    aux = qn > 1;
  } apply {
    control (aux) {
      X(res);
    }
  }
}

from classiq import *


@qfunc
def main(qn: Output[QNum], res: Output[QBit]):
    allocate(2, qn)
    hadamard_transform(qn)
    allocate(res)
    aux = QBit()
    within_apply(
        within=lambda: assign(qn > 1, aux), apply=lambda: control(aux, lambda: X(res))
    )

Example 2 - Illegal use of local variable in within-apply

The code below is a modification of Example 1 above, with a couple of lines added to demonstrate violations of the rules for correct use of a variable initialized inside the within block of a within-apply statement. Here, variable aux is also used as the argument of function H in the within block. This is an arbitrarily mutable context (indeed H introduces superposition between computational-basis states). In addition, aux is used as the argument of function X in the apply block, which is non-constant context. Both uses are illegal, and both are reported as errors by the compiler.

NativePython

qfunc main(output qn: qnum, output res: qbit) {
  allocate(2, qn);
  hadamard_transform(qn);
  allocate(1, res);
  aux: qbit;
  within {
    aux = qn > 1;
    H(aux);
  } apply {
    control (aux) {
      X(res);
    }
    X(aux);
  }
}

from classiq import *


@qfunc
def main(qn: Output[QNum], res: Output[QBit]):
    allocate(2, qn)
    hadamard_transform(qn)
    allocate(res)
    aux = QBit()
    within_apply(
        within=lambda: (
            assign(qn > 1, aux),
            H(aux),
        ),
        apply=lambda: (
            control(aux, lambda: X(res)),
            X(aux),
        ),
    )

Example 3 - Illegal use of dependent variable in within-apply

The following example demonstrates a violation of the rules for correct use of a dependent variable inside a within-apply statement. Here, variable aux is initialized inside a within block, and is subsequently entangled with q1 which is not an uncomputation candidate. From that point, the same restrictions that hold for aux apply to q1. Therefore, using it as an argument to function H is illegal, and is reported as an error. Indeed, if foo would execute as specified, aux would not be uncomputed correctly.

NativePython

qfunc foo(q1: qbit, q2: qbit) {
  aux: qbit;
  within {
    allocate(1, aux);
    CX(q1, aux);
    H(q1);
  } apply {
    CX(aux, q2);
    Z(q1);
  }
}

from classiq import *


@qfunc
def foo(q1: QBit, q2: QBit):
    aux = QBit()
    within_apply(
        within=lambda: (
            allocate(aux),
            CX(q1, aux),
            H(q1),
        ),
        apply=lambda: (CX(aux, q2), Z(q1)),
    )

Example 4 - Illegal use of local variable in function

The example below demonstrates incorrect use of a local variable inside a function. Function rand_increment initializes a local variable temp in a superposition state, using prepare_state, and is subsequently entangled with the parameter qn. This makes it impossible to uncompute temp. temp is a local variable and therefore an uncomputation candidate. Passing it as argument to prepare_state is flagged as an error, because the parameter is not declared permutable. Note that if rand_increment would output temp instead of declaring it as a local variable, the function would be legal.

NativePython

qfunc rand_increment(qn: qnum) {
  temp: qnum;
  prepare_state([0, 0.8, 0.2, 0], 0, temp);
  qn += temp;
}

from classiq import *


@qfunc
def rand_increment(qn: QNum):
    temp = QNum()
    prepare_state([0, 0.8, 0.2, 0], 0, temp)
    qn += temp
