Dealing with constraint using portfolio optimization

Guidance for the workshop:

The # TODO or # Your code is there for you to do yourself.

The # Solution start and # Solution end are only for helping you. Please delete the Solution and try doing it yourself...

Portfolio Optimization with the Quantum Approximate Optimization Algorithm (QAOA)

Introduction

Portfolio optimization is the process of allocating a portfolio of financial assets optimally, according to some predetermined goal. Usually, the goal is to maximize the potential return while minimizing the financial risk of the portfolio. One can express this problem as a combinatorial optimization problem like many other real-world problems. In this demo, we'll show how the Quantum Approximate Optimization Algorithm (QAOA) can be employed on the Classiq platform to solve the problem of portfolio optimization.

Modeling the Portfolio Optimization Problem

As a first step, we have to model the problem mathematically. We will use a simple yet powerful model, which captures the essence of portfolio optimization:

  • A portfolio is built from a pool of \(n\) financial assets, each asset labeled \(i \in \{1,\ldots,n\}\).

  • Every asset's return is a random variable, with expected value \(\mu_i\) and variance \(\Sigma_i\) (modeling the financial risk involved in the asset).

  • Every two assets \(i \neq j\) have covariance \(\Sigma_{ij}\) (modeling market correlation between assets).

  • Every asset \(i\) has a weight \(w_i \in D_i = \{0,\ldots,b_i\}\) in the portfolio, with \(b_i\) defined as the budget for asset \(i\) (modeling the maximum allowed weight of the asset).

  • The return vector \(\mu\), the covariance matrix \(\Sigma\) and the weight vector \(w\) are defined naturally from the above (with the domain \(D = D_1 \times D_2 \times \ldots \times D_n\) for \(w\)).

With the above definitions, the total expected return of the portfolio is \(\mu^T w\) and the total risk is \(w^T \Sigma w\). We'll use a simple difference of the two as our cost function, with the additional constraint that the total sum of assets does not exceed a predefined budget \(B\). We note that there are many other possibilities for defining a cost function (e.g. add a scaling factor to the risk/return or even some non-linear relation). For reasons of simplicity we select the model below, and we assume all constants and variables are dimensionless. Thus, the problem is, given the constant inputs \(\mu, \Sigma, D, B\), to find optimal variable \(w\) as follows:

\[\begin{equation*} \min_{w \in D} w^T \Sigma w - \mu^T w, \end{equation*}\]

subject to \(\(\Sigma_{i} w_i \leq B\)\)

The case presented above is called integer portfolio optimization, since the domains \(D_i\) are over the (positive) integers. Another variation of this problem defines weights over binary domains, and will not be discussed here.

import math
from typing import List

import matplotlib.pyplot as plt
import networkx as nx
import numpy as np
from scipy.optimize import minimize

from classiq import *

Finaly, we will add inequality constraints:

\[\begin{equation*} \min_{w \in D} w^T \Sigma w - \mu^T w, \end{equation*}\]

subject to:

\[\Sigma_{i} w_i \leq B\]

We will do it similarly to the equality constraint but we add slack variable that can take multiple values to make sure \(\Sigma_{i} w_i \leq B\)

In this case, we will change the objective function as follows:

\[\begin{equation*} \min_{w \in D} w^T \Sigma w - \mu^T w + P * (\Sigma_{i} w_i + slack - B)^2 \end{equation*}\]

Where \(P\) is the penalty value you need to define.

The Portfolio Optimization Problem Parameters

First we define the parameters of the optimization problem, which include the expected return vector, the covariance matrix, the total budget and the asset-specific budgets.

returns = np.array([3, 4, -1])
# fmt: off
covariances = np.array(
    [
        [ 0.9,  0.5, -0.7],
        [ 0.5,  0.9, -0.2],
        [-0.7, -0.2,  0.9],
    ]
)
# fmt: on
total_budget = 6

Defining the variables

The number of slack qubits needs to reach to get to the number \(B\).

num_assets = 3

num_qubits_per_asset = 2  # Defines the possible values of choosing each asset.

num_slack = 3


class PortfolioOptimizationVars(QStruct):
    a: QArray[QNum[num_qubits_per_asset], num_assets]
    slack: QNum[num_slack]

Define the expected return

Define a function that describes \(\mu^T w\) where \(\mu\) is the return vector.

def expected_return_cost(
    returns: np.ndarray, w_array: PortfolioOptimizationVars
) -> float:
    return sum(returns[i] * w_array.a[i] for i in range(len(returns)))

Define the risk term

Define a function that describes the risk term in the objective function \(w^T \Sigma w\) where \(\Sigma\) is the covariances matrix.

\[\begin{equation*} \min_{w \in D} w^T \Sigma w - \mu^T w + P * (\Sigma_{i} w_i + slack - B)^2 \end{equation*}\]
def risk_cost(covariances: np.ndarray, w_array: PortfolioOptimizationVars) -> float:
    risk_term = sum(
        w_array.a[i]
        * sum(w_array.a[j] * covariances[i][j] for j in range(covariances.shape[0]))
        for i in range(covariances.shape[0])
    )
    return risk_term

Define the entire portfolio optimization objective function

Combine the risk term and the expected return functions. There a a term called return coefficient return_coeff that defines how much you prefer certainly over return. Higher values is more risky but can be more profitable.

Later try changing it to see how the result changes.

return_coeff = 1.4
Penalty = 1.3


def objective_portfolio_inequality(
    w_array: PortfolioOptimizationVars,
    returns: np.ndarray,
    covariances: np.ndarray,
    return_coeff: float,
) -> float:
    # Your code

    # Solution start
    return (
        risk_cost(covariances, w_array)
        - return_coeff * expected_return_cost(returns, w_array)
        + Penalty
        * (
            sum(w_array.a[i] for i in range(len(returns)))
            + w_array.slack
            - total_budget
        )
        ** 2
    )
    # Solution end

Build the QAOA circuit

@qfunc
def mixer_layer(beta: CReal, qba: QArray):
    # Your code here

    # Solution start
    apply_to_all(lambda q: RX(beta, q), qba)
    # Solution end

NUM_LAYERS = 4


@qfunc
def main(
    params: CArray[CReal, 2 * NUM_LAYERS], w_array: Output[PortfolioOptimizationVars]
) -> None:

    # Allocating the qubits
    allocate(w_array)

    # Your code

    # Solution start

    hadamard_transform(w_array)

    repeat(
        count=params.len / 2,
        iteration=lambda i: (
            phase(
                expr=objective_portfolio_inequality(
                    w_array, returns, covariances, return_coeff
                ),
                theta=params[2 * i],
            ),
            mixer_layer(params[2 * i + 1], w_array),
        ),
    )

    # Solution end

Synthesizing and visualizing

qprog = synthesize(main)
show(qprog)

Quantum program link: https://platform.classiq.io/circuit/2ygh3y09PSqCwRCitOK3J7bCW3g

Execution and post processing

For the hybrid execution, we use ExecutionSession, which can evaluate the circuit in multiple methods, such as sampling the circuit, giving specific values for the parameters, and evaluating to a specific Hamiltonian, which is very common in chemical applications.

In QAOA, we will use the estimate_cost method, which samples the cost function and returns their average cost from all measurements. That helps to optimize easily.

NUM_SHOTS = 1000

es = ExecutionSession(
    qprog, execution_preferences=ExecutionPreferences(num_shots=NUM_SHOTS)
)

# Build `initial_params` list of np.array type.
# The gamma values should start from 0 and, in each layer, should approach closer to 1 linearly
# The beta values should start from 1 and in each layer, should approach closer to 0 linearly
# Then unify it to one list so scipy minimize can digest it.
# Your code here


# Solution start
def initial_qaoa_params(NUM_LAYERS) -> np.ndarray:
    initial_gammas = math.pi * np.linspace(0, 1, NUM_LAYERS)
    initial_betas = math.pi * np.linspace(1, 0, NUM_LAYERS)

    initial_params = []

    for i in range(NUM_LAYERS):
        initial_params.append(initial_gammas[i])
        initial_params.append(initial_betas[i])

    return np.array(initial_params)


# Solution end

initial_params = initial_qaoa_params(NUM_LAYERS)

Define a callback function to track the optimization

# Record the steps of the optimization
intermediate_params = []
objective_values = []


# Define the callback function to store the intermediate steps
def callback(xk):
    intermediate_params.append(xk)

Define the objective function

# You code
# You can use the hints in the comments

# cost_func = lambda state: objective_portfolio_inequality(
#     w_array = ...,
#     returns = ...,
#     covariances = ...,
#     return_coeff= ...
# )
# def estimate_cost_func(params: np.ndarray) -> float:
#     objective_value = es.estimate_cost(
#         cost_func = ...,
#         parameters = {"params": params.tolist()}
#     )
#     # Your code here
#     # Save the result for convergence graph

#     return objective_value

# Solution start


cost_func = lambda state: objective_portfolio_inequality(
    w_array=state["w_array"],
    returns=returns,
    covariances=covariances,
    return_coeff=return_coeff,
)


def estimate_cost_func(params: np.ndarray) -> float:
    objective_value = es.estimate_cost(
        cost_func=cost_func, parameters={"params": params.tolist()}
    )
    objective_values.append(objective_value)
    return objective_value


# Solution end

Optimize

# You code
# You can use the hints in the comments

# optimization_res = minimize(
#     fun = ...,
#     x0=...,
#     method="COBYLA",
#     callback=...,
#     options={"maxiter": 10},
# )

# Solution start

optimization_res = minimize(
    estimate_cost_func,
    x0=initial_params,
    method="COBYLA",
    callback=callback,
    options={"maxiter": 20},
)
# Solution end

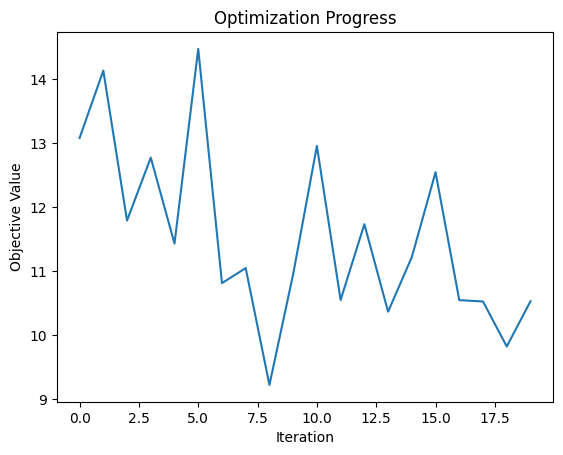

Look at the results

res = es.sample({"params": optimization_res.x.tolist()})

print(f"Optimized parameters: {optimization_res.x.tolist()}")

sorted_counts = sorted(
    res.parsed_counts,
    key=lambda pc: objective_portfolio_inequality(
        pc.state["w_array"],
        returns=returns,
        covariances=covariances,
        return_coeff=return_coeff,
    ),
)

for sampled in sorted_counts:
    w_sample = sampled.state["w_array"]
    print(
        f"solution={w_sample} probability={sampled.shots/NUM_SHOTS} "
        f"cost={objective_portfolio_inequality(w_array=w_sample,returns = returns, covariances = covariances, return_coeff= return_coeff)}"
    )

Optimized parameters: [0.0, 4.141592653589793, 1.0471975511965976, 3.0943951023931957, 2.0943951023931953, 2.047197551196598, 3.141592653589793, 1.0]
solution={'a': [1, 3, 1], 'slack': 1} probability=0.003 cost=-9.299999999999999
solution={'a': [2, 3, 1], 'slack': 0} probability=0.007 cost=-9.199999999999998
solution={'a': [2, 2, 2], 'slack': 0} probability=0.001 cost=-9.199999999999998
solution={'a': [1, 3, 0], 'slack': 2} probability=0.006 cost=-8.999999999999998
solution={'a': [3, 1, 2], 'slack': 0} probability=0.002 cost=-8.999999999999998
solution={'a': [1, 2, 0], 'slack': 3} probability=0.001 cost=-8.899999999999999
solution={'a': [1, 2, 1], 'slack': 2} probability=0.001 cost=-8.8
solution={'a': [3, 2, 1], 'slack': 0} probability=0.003 cost=-8.799999999999999
solution={'a': [2, 1, 1], 'slack': 2} probability=0.003 cost=-8.4
solution={'a': [2, 2, 1], 'slack': 2} probability=0.003 cost=-8.4
solution={'a': [3, 2, 2], 'slack': 0} probability=0.001 cost=-8.399999999999999
solution={'a': [2, 2, 0], 'slack': 2} probability=0.001 cost=-8.399999999999999
solution={'a': [1, 3, 1], 'slack': 0} probability=0.004 cost=-7.999999999999999
solution={'a': [2, 2, 2], 'slack': 1} probability=0.005 cost=-7.899999999999998
solution={'a': [2, 3, 1], 'slack': 1} probability=0.002 cost=-7.899999999999998
solution={'a': [1, 3, 2], 'slack': 0} probability=0.002 cost=-7.799999999999999
solution={'a': [1, 3, 0], 'slack': 3} probability=0.003 cost=-7.699999999999998
solution={'a': [0, 2, 0], 'slack': 4} probability=0.002 cost=-7.6
solution={'a': [1, 2, 0], 'slack': 2} probability=0.003 cost=-7.599999999999999
solution={'a': [1, 2, 1], 'slack': 3} probability=0.005 cost=-7.500000000000001
solution={'a': [1, 2, 1], 'slack': 1} probability=0.002 cost=-7.500000000000001
solution={'a': [2, 1, 0], 'slack': 3} probability=0.002 cost=-7.5
solution={'a': [2, 1, 2], 'slack': 1} probability=0.002 cost=-7.499999999999999
solution={'a': [3, 2, 1], 'slack': 1} probability=0.001 cost=-7.499999999999999
solution={'a': [2, 3, 0], 'slack': 1} probability=0.002 cost=-7.4999999999999964
solution={'a': [0, 3, 0], 'slack': 4} probability=0.005 cost=-7.399999999999996
solution={'a': [0, 3, 0], 'slack': 2} probability=0.004 cost=-7.399999999999996
solution={'a': [3, 1, 1], 'slack': 0} probability=0.001 cost=-7.199999999999998
solution={'a': [2, 1, 1], 'slack': 3} probability=0.005 cost=-7.1000000000000005
solution={'a': [2, 1, 1], 'slack': 1} probability=0.003 cost=-7.1000000000000005
solution={'a': [2, 2, 0], 'slack': 1} probability=0.004 cost=-7.099999999999999
solution={'a': [2, 2, 0], 'slack': 3} probability=0.001 cost=-7.099999999999999
solution={'a': [1, 1, 0], 'slack': 4} probability=0.006 cost=-6.999999999999999
solution={'a': [1, 2, 2], 'slack': 1} probability=0.002 cost=-6.9
solution={'a': [1, 3, 2], 'slack': 1} probability=0.004 cost=-6.499999999999999
solution={'a': [1, 1, 1], 'slack': 3} probability=0.003 cost=-6.499999999999998
solution={'a': [3, 0, 2], 'slack': 1} probability=0.002 cost=-6.499999999999997
solution={'a': [3, 1, 3], 'slack': 0} probability=0.003 cost=-6.399999999999998
solution={'a': [0, 2, 0], 'slack': 5} probability=0.005 cost=-6.3
solution={'a': [0, 3, 1], 'slack': 3} probability=0.008 cost=-6.299999999999999
solution={'a': [0, 3, 1], 'slack': 1} probability=0.001 cost=-6.299999999999999
solution={'a': [2, 1, 0], 'slack': 4} probability=0.001 cost=-6.2
solution={'a': [2, 1, 0], 'slack': 2} probability=0.001 cost=-6.2
solution={'a': [2, 1, 2], 'slack': 0} probability=0.006 cost=-6.199999999999999
solution={'a': [2, 1, 2], 'slack': 2} probability=0.003 cost=-6.199999999999999
solution={'a': [3, 1, 0], 'slack': 2} probability=0.001 cost=-6.1999999999999975
solution={'a': [2, 3, 0], 'slack': 2} probability=0.002 cost=-6.199999999999997
solution={'a': [1, 1, 0], 'slack': 3} probability=0.005 cost=-5.699999999999999
solution={'a': [1, 2, 2], 'slack': 0} probability=0.001 cost=-5.6000000000000005
solution={'a': [2, 2, 3], 'slack': 0} probability=0.002 cost=-5.599999999999999
solution={'a': [2, 0, 1], 'slack': 3} probability=0.007 cost=-5.3
solution={'a': [1, 1, 1], 'slack': 4} probability=0.005 cost=-5.199999999999998
solution={'a': [1, 1, 1], 'slack': 2} probability=0.001 cost=-5.199999999999998
solution={'a': [3, 0, 1], 'slack': 3} probability=0.005 cost=-5.099999999999999
solution={'a': [3, 0, 1], 'slack': 1} probability=0.003 cost=-5.099999999999999
solution={'a': [3, 1, 0], 'slack': 3} probability=0.001 cost=-4.899999999999998
solution={'a': [0, 2, 1], 'slack': 2} probability=0.002 cost=-4.799999999999999
solution={'a': [0, 2, 1], 'slack': 4} probability=0.001 cost=-4.799999999999999
solution={'a': [2, 0, 0], 'slack': 4} probability=0.001 cost=-4.799999999999999
solution={'a': [3, 0, 3], 'slack': 0} probability=0.001 cost=-4.799999999999995
solution={'a': [3, 2, 0], 'slack': 2} probability=0.003 cost=-4.7999999999999945
solution={'a': [3, 2, 0], 'slack': 0} probability=0.001 cost=-4.7999999999999945
solution={'a': [0, 1, 0], 'slack': 5} probability=0.003 cost=-4.699999999999999
solution={'a': [0, 3, 2], 'slack': 1} probability=0.002 cost=-4.699999999999999
solution={'a': [2, 2, 1], 'slack': 3} probability=0.001 cost=-4.500000000000001
solution={'a': [3, 0, 0], 'slack': 3} probability=0.001 cost=-4.499999999999998
solution={'a': [3, 3, 0], 'slack': 0} probability=0.001 cost=-4.199999999999996
solution={'a': [1, 3, 1], 'slack': 3} probability=0.001 cost=-4.099999999999999
solution={'a': [2, 0, 1], 'slack': 2} probability=0.003 cost=-4.0
solution={'a': [2, 0, 1], 'slack': 4} probability=0.002 cost=-4.0
solution={'a': [2, 0, 2], 'slack': 2} probability=0.003 cost=-3.999999999999999
solution={'a': [1, 3, 0], 'slack': 0} probability=0.004 cost=-3.799999999999998
solution={'a': [1, 2, 0], 'slack': 5} probability=0.002 cost=-3.6999999999999984
solution={'a': [1, 2, 0], 'slack': 1} probability=0.002 cost=-3.6999999999999984
solution={'a': [1, 2, 1], 'slack': 4} probability=0.006 cost=-3.6000000000000005
solution={'a': [1, 2, 1], 'slack': 0} probability=0.005 cost=-3.6000000000000005
solution={'a': [3, 2, 1], 'slack': 2} probability=0.007 cost=-3.5999999999999988
solution={'a': [3, 2, 3], 'slack': 0} probability=0.001 cost=-3.599999999999995
solution={'a': [2, 0, 0], 'slack': 3} probability=0.006 cost=-3.499999999999999
solution={'a': [2, 1, 3], 'slack': 1} probability=0.001 cost=-3.4999999999999982
solution={'a': [0, 3, 0], 'slack': 1} probability=0.006 cost=-3.4999999999999956
solution={'a': [0, 3, 0], 'slack': 5} probability=0.004 cost=-3.4999999999999956
solution={'a': [3, 0, 3], 'slack': 1} probability=0.001 cost=-3.4999999999999956
solution={'a': [0, 1, 0], 'slack': 4} probability=0.006 cost=-3.3999999999999995
solution={'a': [0, 1, 0], 'slack': 6} probability=0.001 cost=-3.3999999999999995
solution={'a': [0, 3, 2], 'slack': 0} probability=0.001 cost=-3.3999999999999995
solution={'a': [1, 0, 0], 'slack': 5} probability=0.003 cost=-3.2999999999999994
solution={'a': [3, 1, 1], 'slack': 3} probability=0.006 cost=-3.299999999999998
solution={'a': [2, 1, 1], 'slack': 0} probability=0.001 cost=-3.2
solution={'a': [2, 1, 1], 'slack': 4} probability=0.001 cost=-3.2
solution={'a': [1, 2, 3], 'slack': 0} probability=0.002 cost=-3.1999999999999993
solution={'a': [2, 2, 0], 'slack': 0} probability=0.007 cost=-3.1999999999999984
solution={'a': [3, 0, 0], 'slack': 2} probability=0.001 cost=-3.1999999999999984
solution={'a': [3, 0, 0], 'slack': 4} probability=0.001 cost=-3.1999999999999984
solution={'a': [2, 2, 0], 'slack': 4} probability=0.001 cost=-3.1999999999999984
solution={'a': [1, 3, 3], 'slack': 0} probability=0.002 cost=-3.1999999999999966
solution={'a': [1, 1, 2], 'slack': 3} probability=0.001 cost=-2.8999999999999995
solution={'a': [1, 1, 2], 'slack': 1} probability=0.001 cost=-2.8999999999999995
solution={'a': [3, 3, 0], 'slack': 1} probability=0.008 cost=-2.899999999999996
solution={'a': [0, 2, 2], 'slack': 2} probability=0.007 cost=-2.799999999999999
solution={'a': [2, 0, 2], 'slack': 1} probability=0.001 cost=-2.6999999999999993
solution={'a': [2, 0, 2], 'slack': 3} probability=0.001 cost=-2.6999999999999993
solution={'a': [3, 1, 3], 'slack': 1} probability=0.005 cost=-2.4999999999999973
solution={'a': [0, 2, 0], 'slack': 2} probability=0.012 cost=-2.3999999999999995
solution={'a': [0, 2, 0], 'slack': 6} probability=0.006 cost=-2.3999999999999995
solution={'a': [0, 3, 1], 'slack': 4} probability=0.007 cost=-2.3999999999999986
solution={'a': [0, 3, 1], 'slack': 0} probability=0.004 cost=-2.3999999999999986
solution={'a': [2, 1, 0], 'slack': 1} probability=0.004 cost=-2.3
solution={'a': [2, 1, 2], 'slack': 3} probability=0.001 cost=-2.299999999999999
solution={'a': [2, 3, 0], 'slack': 3} probability=0.003 cost=-2.2999999999999963
solution={'a': [3, 3, 1], 'slack': 1} probability=0.001 cost=-2.1000000000000005
solution={'a': [1, 0, 0], 'slack': 4} probability=0.001 cost=-1.9999999999999993
solution={'a': [1, 0, 0], 'slack': 6} probability=0.001 cost=-1.9999999999999993
solution={'a': [2, 3, 3], 'slack': 0} probability=0.005 cost=-1.9999999999999991
solution={'a': [1, 1, 0], 'slack': 6} probability=0.004 cost=-1.799999999999999
solution={'a': [1, 2, 2], 'slack': 3} probability=0.002 cost=-1.7000000000000002
solution={'a': [2, 2, 3], 'slack': 1} probability=0.003 cost=-1.6999999999999984
solution={'a': [0, 1, 1], 'slack': 3} probability=0.004 cost=-1.4999999999999993
solution={'a': [0, 1, 1], 'slack': 5} probability=0.002 cost=-1.4999999999999993
solution={'a': [0, 2, 2], 'slack': 1} probability=0.002 cost=-1.499999999999999
solution={'a': [1, 1, 1], 'slack': 1} probability=0.001 cost=-1.299999999999998
solution={'a': [3, 0, 2], 'slack': 3} probability=0.002 cost=-1.2999999999999972
solution={'a': [3, 0, 1], 'slack': 0} probability=0.004 cost=-1.1999999999999984
solution={'a': [3, 0, 1], 'slack': 4} probability=0.002 cost=-1.1999999999999984
solution={'a': [1, 0, 1], 'slack': 5} probability=0.001 cost=-1.0999999999999994
solution={'a': [3, 1, 0], 'slack': 4} probability=0.007 cost=-0.9999999999999973
solution={'a': [3, 1, 0], 'slack': 0} probability=0.002 cost=-0.9999999999999973
solution={'a': [0, 2, 1], 'slack': 1} probability=0.001 cost=-0.8999999999999986
solution={'a': [3, 2, 0], 'slack': 3} probability=0.004 cost=-0.8999999999999941
solution={'a': [1, 1, 3], 'slack': 1} probability=0.001 cost=-0.09999999999999964
solution={'a': [0, 3, 3], 'slack': 0} probability=0.002 cost=1.7763568394002505e-15
solution={'a': [1, 0, 2], 'slack': 3} probability=0.001 cost=0.30000000000000027
solution={'a': [2, 0, 0], 'slack': 6} probability=0.009 cost=0.40000000000000124
solution={'a': [2, 0, 0], 'slack': 2} probability=0.001 cost=0.40000000000000124
solution={'a': [2, 1, 3], 'slack': 2} probability=0.002 cost=0.40000000000000213
solution={'a': [2, 0, 3], 'slack': 2} probability=0.003 cost=0.40000000000000235
solution={'a': [2, 0, 3], 'slack': 0} probability=0.002 cost=0.40000000000000235
solution={'a': [0, 1, 0], 'slack': 3} probability=0.003 cost=0.5000000000000009
solution={'a': [0, 1, 0], 'slack': 7} probability=0.002 cost=0.5000000000000009
solution={'a': [0, 3, 2], 'slack': 3} probability=0.001 cost=0.5000000000000009
solution={'a': [3, 0, 0], 'slack': 1} probability=0.006 cost=0.700000000000002
solution={'a': [1, 3, 3], 'slack': 1} probability=0.001 cost=0.7000000000000037
solution={'a': [1, 1, 2], 'slack': 0} probability=0.003 cost=1.0000000000000009
solution={'a': [1, 1, 2], 'slack': 4} probability=0.002 cost=1.0000000000000009
solution={'a': [3, 3, 0], 'slack': 2} probability=0.001 cost=1.0000000000000044
solution={'a': [1, 1, 3], 'slack': 0} probability=0.001 cost=1.2000000000000004
solution={'a': [1, 1, 3], 'slack': 2} probability=0.001 cost=1.2000000000000004
solution={'a': [2, 0, 2], 'slack': 0} probability=0.002 cost=1.200000000000001
solution={'a': [0, 0, 0], 'slack': 5} probability=0.005 cost=1.3
solution={'a': [0, 3, 3], 'slack': 1} probability=0.003 cost=1.3000000000000018
solution={'a': [1, 0, 2], 'slack': 2} probability=0.006 cost=1.6000000000000003
solution={'a': [1, 0, 0], 'slack': 3} probability=0.001 cost=1.9000000000000008
solution={'a': [2, 2, 1], 'slack': 4} probability=0.001 cost=2.0
solution={'a': [1, 2, 3], 'slack': 2} probability=0.006 cost=2.000000000000001
solution={'a': [3, 2, 2], 'slack': 2} probability=0.008 cost=2.0000000000000018
solution={'a': [0, 1, 2], 'slack': 4} probability=0.007 cost=2.2
solution={'a': [0, 1, 2], 'slack': 2} probability=0.003 cost=2.2
solution={'a': [0, 0, 1], 'slack': 5} probability=0.005 cost=2.3
solution={'a': [0, 2, 2], 'slack': 0} probability=0.002 cost=2.4000000000000012
solution={'a': [0, 2, 2], 'slack': 4} probability=0.002 cost=2.4000000000000012
solution={'a': [2, 3, 1], 'slack': 3} probability=0.002 cost=2.5000000000000036
solution={'a': [2, 3, 2], 'slack': 2} probability=0.003 cost=2.6000000000000014
solution={'a': [3, 1, 2], 'slack': 3} probability=0.005 cost=2.700000000000003
solution={'a': [1, 3, 0], 'slack': 5} probability=0.002 cost=2.700000000000003
solution={'a': [1, 0, 1], 'slack': 2} probability=0.001 cost=2.8000000000000007
solution={'a': [1, 2, 1], 'slack': 5} probability=0.002 cost=2.9000000000000004
solution={'a': [3, 2, 3], 'slack': 1} probability=0.001 cost=2.9000000000000057
solution={'a': [0, 3, 0], 'slack': 0} probability=0.006 cost=3.0000000000000053
solution={'a': [0, 3, 0], 'slack': 6} probability=0.002 cost=3.0000000000000053
solution={'a': [3, 3, 2], 'slack': 1} probability=0.002 cost=3.100000000000003
solution={'a': [3, 1, 1], 'slack': 4} probability=0.006 cost=3.200000000000003
solution={'a': [2, 2, 0], 'slack': 5} probability=0.001 cost=3.3000000000000025
solution={'a': [0, 0, 1], 'slack': 6} probability=0.002 cost=3.5999999999999996
solution={'a': [0, 2, 3], 'slack': 0} probability=0.002 cost=3.6000000000000005
solution={'a': [3, 3, 3], 'slack': 0} probability=0.001 cost=3.600000000000003
solution={'a': [1, 3, 2], 'slack': 3} probability=0.003 cost=3.900000000000002
solution={'a': [0, 2, 0], 'slack': 1} probability=0.002 cost=4.100000000000001
solution={'a': [0, 2, 0], 'slack': 7} probability=0.002 cost=4.100000000000001
solution={'a': [0, 3, 1], 'slack': 5} probability=0.007 cost=4.100000000000002
solution={'a': [2, 1, 2], 'slack': 4} probability=0.002 cost=4.200000000000002
solution={'a': [2, 3, 0], 'slack': 4} probability=0.004 cost=4.200000000000005
solution={'a': [2, 0, 3], 'slack': 3} probability=0.008 cost=4.3000000000000025
solution={'a': [3, 3, 1], 'slack': 2} probability=0.002 cost=4.4
solution={'a': [2, 3, 3], 'slack': 1} probability=0.003 cost=4.500000000000002
solution={'a': [1, 1, 0], 'slack': 7} probability=0.001 cost=4.700000000000002
solution={'a': [1, 2, 2], 'slack': 4} probability=0.005 cost=4.800000000000001
solution={'a': [1, 0, 3], 'slack': 2} probability=0.001 cost=4.800000000000001
solution={'a': [0, 0, 0], 'slack': 4} probability=0.001 cost=5.2
solution={'a': [3, 0, 2], 'slack': 4} probability=0.002 cost=5.200000000000004
solution={'a': [3, 0, 1], 'slack': 5} probability=0.002 cost=5.3000000000000025
solution={'a': [1, 0, 2], 'slack': 1} probability=0.001 cost=5.5
solution={'a': [3, 1, 0], 'slack': 5} probability=0.008 cost=5.5000000000000036
solution={'a': [3, 2, 0], 'slack': 4} probability=0.009 cost=5.600000000000007
solution={'a': [0, 1, 2], 'slack': 5} probability=0.002 cost=6.1000000000000005
solution={'a': [0, 0, 2], 'slack': 4} probability=0.002 cost=6.4
solution={'a': [2, 0, 1], 'slack': 6} probability=0.006 cost=6.400000000000001
solution={'a': [2, 0, 0], 'slack': 1} probability=0.001 cost=6.900000000000002
solution={'a': [3, 0, 3], 'slack': 3} probability=0.001 cost=6.900000000000006
solution={'a': [3, 0, 0], 'slack': 0} probability=0.001 cost=7.200000000000003
solution={'a': [1, 3, 3], 'slack': 2} probability=0.003 cost=7.200000000000005
solution={'a': [0, 0, 1], 'slack': 3} probability=0.001 cost=7.5
solution={'a': [0, 2, 3], 'slack': 3} probability=0.001 cost=7.500000000000001
solution={'a': [1, 1, 2], 'slack': 5} probability=0.001 cost=7.500000000000002
solution={'a': [0, 0, 2], 'slack': 5} probability=0.003 cost=7.7
solution={'a': [2, 0, 2], 'slack': 5} probability=0.001 cost=7.700000000000002
solution={'a': [1, 0, 1], 'slack': 7} probability=0.001 cost=9.3
solution={'a': [1, 0, 3], 'slack': 0} probability=0.004 cost=10.0
solution={'a': [3, 2, 2], 'slack': 3} probability=0.001 cost=11.100000000000001
solution={'a': [1, 3, 1], 'slack': 5} probability=0.003 cost=11.500000000000002
solution={'a': [0, 1, 3], 'slack': 4} probability=0.004 cost=11.600000000000001
solution={'a': [0, 0, 2], 'slack': 2} probability=0.001 cost=11.600000000000001
solution={'a': [0, 0, 2], 'slack': 6} probability=0.001 cost=11.600000000000001
solution={'a': [1, 1, 3], 'slack': 4} probability=0.001 cost=11.600000000000001
solution={'a': [2, 3, 1], 'slack': 4} probability=0.002 cost=11.600000000000003
solution={'a': [0, 0, 0], 'slack': 3} probability=0.001 cost=11.700000000000001
solution={'a': [3, 1, 2], 'slack': 4} probability=0.002 cost=11.800000000000002
solution={'a': [1, 0, 2], 'slack': 0} probability=0.002 cost=12.000000000000002
solution={'a': [3, 2, 3], 'slack': 2} probability=0.001 cost=12.000000000000005
solution={'a': [0, 3, 0], 'slack': 7} probability=0.001 cost=12.100000000000005
solution={'a': [0, 0, 3], 'slack': 3} probability=0.02 cost=12.3
solution={'a': [3, 1, 1], 'slack': 5} probability=0.001 cost=12.300000000000002
solution={'a': [2, 1, 1], 'slack': 6} probability=0.002 cost=12.4
solution={'a': [0, 1, 2], 'slack': 0} probability=0.004 cost=12.600000000000001
solution={'a': [0, 1, 2], 'slack': 6} probability=0.001 cost=12.600000000000001
solution={'a': [1, 3, 2], 'slack': 4} probability=0.001 cost=13.000000000000002
solution={'a': [3, 1, 3], 'slack': 3} probability=0.001 cost=13.100000000000003
solution={'a': [0, 2, 0], 'slack': 0} probability=0.002 cost=13.200000000000001
solution={'a': [2, 1, 2], 'slack': 5} probability=0.002 cost=13.3
solution={'a': [2, 1, 0], 'slack': 7} probability=0.001 cost=13.3
solution={'a': [3, 3, 1], 'slack': 3} probability=0.001 cost=13.5
solution={'a': [0, 0, 3], 'slack': 2} probability=0.01 cost=13.600000000000001
solution={'a': [2, 3, 3], 'slack': 2} probability=0.006 cost=13.600000000000001
solution={'a': [0, 0, 3], 'slack': 4} probability=0.003 cost=13.600000000000001
solution={'a': [1, 1, 0], 'slack': 0} probability=0.001 cost=13.8
solution={'a': [1, 2, 2], 'slack': 5} probability=0.003 cost=13.9
solution={'a': [2, 2, 3], 'slack': 3} probability=0.004 cost=13.900000000000002
solution={'a': [0, 0, 1], 'slack': 2} probability=0.006 cost=14.0
solution={'a': [0, 2, 3], 'slack': 4} probability=0.001 cost=14.000000000000002
solution={'a': [1, 1, 1], 'slack': 7} probability=0.004 cost=14.300000000000002
solution={'a': [3, 1, 0], 'slack': 6} probability=0.001 cost=14.600000000000003
solution={'a': [0, 2, 1], 'slack': 7} probability=0.003 cost=14.700000000000003
solution={'a': [2, 0, 1], 'slack': 7} probability=0.004 cost=15.5
solution={'a': [2, 0, 0], 'slack': 0} probability=0.002 cost=16.0
solution={'a': [2, 1, 3], 'slack': 4} probability=0.001 cost=16.000000000000004
solution={'a': [3, 0, 3], 'slack': 4} probability=0.007 cost=16.000000000000007
solution={'a': [0, 3, 2], 'slack': 5} probability=0.004 cost=16.1
solution={'a': [3, 0, 0], 'slack': 7} probability=0.003 cost=16.300000000000004
solution={'a': [1, 0, 3], 'slack': 5} probability=0.001 cost=16.5
solution={'a': [1, 1, 2], 'slack': 6} probability=0.008 cost=16.6
solution={'a': [3, 3, 0], 'slack': 4} probability=0.001 cost=16.600000000000005
solution={'a': [2, 0, 2], 'slack': 6} probability=0.004 cost=16.8
solution={'a': [1, 0, 0], 'slack': 1} probability=0.004 cost=17.5
solution={'a': [0, 0, 3], 'slack': 5} probability=0.004 cost=17.5
solution={'a': [0, 0, 3], 'slack': 1} probability=0.003 cost=17.5
solution={'a': [0, 1, 1], 'slack': 0} probability=0.006 cost=18.0
solution={'a': [0, 2, 2], 'slack': 6} probability=0.003 cost=18.0
solution={'a': [0, 0, 2], 'slack': 1} probability=0.008 cost=18.1
solution={'a': [0, 1, 3], 'slack': 5} probability=0.001 cost=18.1
solution={'a': [2, 0, 3], 'slack': 5} probability=0.001 cost=19.900000000000002
solution={'a': [0, 3, 3], 'slack': 4} probability=0.005 cost=20.800000000000004
solution={'a': [1, 0, 2], 'slack': 7} probability=0.002 cost=21.1
solution={'a': [0, 1, 2], 'slack': 7} probability=0.001 cost=21.700000000000003
solution={'a': [2, 2, 1], 'slack': 6} probability=0.007 cost=22.799999999999997
solution={'a': [0, 2, 3], 'slack': 5} probability=0.001 cost=23.1
solution={'a': [1, 3, 1], 'slack': 6} probability=0.001 cost=23.200000000000003
solution={'a': [2, 3, 2], 'slack': 4} probability=0.001 cost=23.4
solution={'a': [1, 3, 0], 'slack': 7} probability=0.005 cost=23.5
solution={'a': [1, 2, 1], 'slack': 7} probability=0.006 cost=23.7
solution={'a': [3, 2, 3], 'slack': 3} probability=0.001 cost=23.700000000000003
solution={'a': [3, 2, 1], 'slack': 5} probability=0.001 cost=23.700000000000003
solution={'a': [3, 3, 2], 'slack': 3} probability=0.01 cost=23.900000000000002
solution={'a': [0, 0, 3], 'slack': 6} probability=0.003 cost=24.0
solution={'a': [2, 2, 0], 'slack': 7} probability=0.004 cost=24.1
solution={'a': [2, 1, 1], 'slack': 7} probability=0.002 cost=24.1
solution={'a': [1, 3, 2], 'slack': 5} probability=0.001 cost=24.700000000000003
solution={'a': [3, 3, 1], 'slack': 4} probability=0.011 cost=25.2
solution={'a': [2, 3, 3], 'slack': 3} probability=0.007 cost=25.3
solution={'a': [1, 0, 3], 'slack': 6} probability=0.003 cost=25.6
solution={'a': [1, 2, 2], 'slack': 6} probability=0.002 cost=25.6
solution={'a': [2, 2, 3], 'slack': 4} probability=0.001 cost=25.6
solution={'a': [3, 0, 2], 'slack': 6} probability=0.002 cost=26.000000000000004
solution={'a': [3, 0, 1], 'slack': 7} probability=0.001 cost=26.1
solution={'a': [3, 2, 0], 'slack': 6} probability=0.004 cost=26.400000000000006
solution={'a': [0, 1, 3], 'slack': 6} probability=0.012 cost=27.200000000000003
solution={'a': [0, 0, 2], 'slack': 0} probability=0.001 cost=27.200000000000003
solution={'a': [0, 3, 2], 'slack': 6} probability=0.01 cost=27.8
solution={'a': [0, 1, 0], 'slack': 0} probability=0.004 cost=27.8
solution={'a': [1, 1, 2], 'slack': 7} probability=0.001 cost=28.3
solution={'a': [1, 0, 0], 'slack': 0} probability=0.002 cost=29.2
solution={'a': [1, 2, 3], 'slack': 5} probability=0.003 cost=29.3
solution={'a': [0, 2, 2], 'slack': 7} probability=0.001 cost=29.700000000000003
solution={'a': [2, 0, 3], 'slack': 6} probability=0.007 cost=31.6
solution={'a': [1, 1, 3], 'slack': 6} probability=0.001 cost=32.4
solution={'a': [0, 0, 0], 'slack': 1} probability=0.003 cost=32.5
solution={'a': [0, 3, 3], 'slack': 5} probability=0.001 cost=32.5
solution={'a': [0, 0, 3], 'slack': 7} probability=0.006 cost=33.1
solution={'a': [0, 0, 1], 'slack': 0} probability=0.001 cost=34.8
solution={'a': [2, 2, 1], 'slack': 7} probability=0.002 cost=37.1
solution={'a': [3, 2, 2], 'slack': 5} probability=0.004 cost=37.10000000000001
solution={'a': [1, 3, 1], 'slack': 7} probability=0.001 cost=37.50000000000001
solution={'a': [2, 2, 2], 'slack': 6} probability=0.004 cost=37.60000000000001
solution={'a': [2, 3, 1], 'slack': 6} probability=0.001 cost=37.60000000000001
solution={'a': [3, 2, 1], 'slack': 6} probability=0.002 cost=38.00000000000001
solution={'a': [3, 1, 1], 'slack': 7} probability=0.004 cost=38.300000000000004
solution={'a': [3, 1, 3], 'slack': 5} probability=0.004 cost=39.10000000000001
solution={'a': [2, 1, 2], 'slack': 7} probability=0.002 cost=39.300000000000004
solution={'a': [2, 3, 0], 'slack': 7} probability=0.001 cost=39.30000000000001
solution={'a': [3, 3, 1], 'slack': 5} probability=0.001 cost=39.5
solution={'a': [1, 2, 2], 'slack': 7} probability=0.001 cost=39.900000000000006
solution={'a': [2, 2, 3], 'slack': 5} probability=0.001 cost=39.900000000000006
solution={'a': [3, 2, 0], 'slack': 7} probability=0.001 cost=40.70000000000001
solution={'a': [3, 0, 3], 'slack': 6} probability=0.01 cost=42.00000000000001
solution={'a': [2, 1, 3], 'slack': 6} probability=0.004 cost=42.00000000000001
solution={'a': [0, 3, 2], 'slack': 7} probability=0.001 cost=42.10000000000001
solution={'a': [1, 3, 3], 'slack': 5} probability=0.001 cost=42.30000000000001
solution={'a': [3, 3, 0], 'slack': 6} probability=0.003 cost=42.60000000000001
solution={'a': [2, 0, 3], 'slack': 7} probability=0.004 cost=45.900000000000006
solution={'a': [0, 0, 0], 'slack': 0} probability=0.001 cost=46.800000000000004
solution={'a': [0, 2, 3], 'slack': 7} probability=0.004 cost=49.10000000000001
solution={'a': [3, 2, 2], 'slack': 6} probability=0.003 cost=54.0
solution={'a': [2, 2, 2], 'slack': 7} probability=0.002 cost=54.50000000000001
solution={'a': [2, 3, 2], 'slack': 6} probability=0.002 cost=54.6
solution={'a': [3, 2, 3], 'slack': 5} probability=0.001 cost=54.900000000000006
solution={'a': [3, 2, 1], 'slack': 7} probability=0.001 cost=54.900000000000006
solution={'a': [1, 3, 2], 'slack': 7} probability=0.002 cost=55.900000000000006
solution={'a': [3, 3, 1], 'slack': 6} probability=0.001 cost=56.400000000000006
solution={'a': [2, 3, 3], 'slack': 5} probability=0.001 cost=56.5
solution={'a': [2, 2, 3], 'slack': 6} probability=0.001 cost=56.800000000000004
solution={'a': [2, 1, 3], 'slack': 7} probability=0.002 cost=58.900000000000006
solution={'a': [1, 3, 3], 'slack': 6} probability=0.006 cost=59.2
solution={'a': [3, 3, 0], 'slack': 7} probability=0.001 cost=59.50000000000001
solution={'a': [0, 3, 3], 'slack': 7} probability=0.002 cost=63.7
solution={'a': [3, 2, 2], 'slack': 7} probability=0.001 cost=73.5
solution={'a': [2, 3, 2], 'slack': 7} probability=0.003 cost=74.10000000000001
solution={'a': [3, 2, 3], 'slack': 6} probability=0.001 cost=74.4
solution={'a': [3, 3, 1], 'slack': 7} probability=0.002 cost=75.9
solution={'a': [2, 3, 3], 'slack': 6} probability=0.002 cost=76.0
solution={'a': [3, 2, 3], 'slack': 7} probability=0.001 cost=96.5
solution={'a': [3, 3, 3], 'slack': 6} probability=0.001 cost=97.2
solution={'a': [2, 3, 3], 'slack': 7} probability=0.003 cost=98.1
solution={'a': [3, 3, 3], 'slack': 7} probability=0.002 cost=121.9

Convergence graph

plt.plot(objective_values)
plt.xlabel("Iteration")
plt.ylabel("Objective Value")
plt.title("Optimization Progress")

Text(0.5, 1.0, 'Optimization Progress')

png

Solution

import math
from typing import List

import matplotlib.pyplot as plt
import networkx as nx
import numpy as np
from scipy.optimize import minimize

from classiq import *

NUM_LAYERS = 3

num_slack = 3

returns = np.array([3, 4, -1])
# fmt: off
covariances = np.array(
    [
        [ 0.9,  0.5, -0.7],
        [ 0.5,  0.9, -0.2],
        [-0.7, -0.2,  0.9],
    ]
)
# fmt: on
total_budget = 6
specific_budgets = 3

return_coeff = 10.0

num_assets = 3

num_qubits_per_asset = 2

Penalty = 30.5

# start with integer variables


class PortfolioOptimizationVars(QStruct):
    a: QArray[QNum[num_qubits_per_asset], num_assets]
    slack: QNum[num_slack]


def expected_return_cost(
    returns: np.ndarray, w_array: PortfolioOptimizationVars
) -> float:
    return sum(returns[i] * w_array.a[i] for i in range(len(returns)))


def risk_cost(covariances: np.ndarray, w_array: PortfolioOptimizationVars) -> float:
    risk_term = sum(
        w_array.a[i]
        * sum(w_array.a[j] * covariances[i][j] for j in range(covariances.shape[0]))
        for i in range(covariances.shape[0])
    )
    return risk_term


def objective_portfolio_inequality(
    w_array: PortfolioOptimizationVars,
    returns: np.ndarray,
    covariances: np.ndarray,
    return_coeff: float,
) -> float:
    return (
        risk_cost(covariances, w_array)
        - return_coeff * expected_return_cost(returns, w_array)
        + Penalty
        * (
            sum(w_array.a[i] for i in range(len(returns)))
            + w_array.slack
            - total_budget
        )
        ** 2
    )


@qfunc
def mixer_layer(beta: CReal, qba: QArray):
    apply_to_all(lambda q: RX(beta, q), qba)


@qfunc
def main(
    params: CArray[CReal, 2 * NUM_LAYERS], w_array: Output[PortfolioOptimizationVars]
) -> None:
    allocate(w_array)

    hadamard_transform(w_array)

    repeat(
        count=params.len / 2,
        iteration=lambda i: (
            phase(
                expr=objective_portfolio_inequality(
                    w_array, returns, covariances, return_coeff
                ),
                theta=params[2 * i],
            ),
            mixer_layer(params[2 * i + 1], w_array),
        ),
    )


qprog = synthesize(main)
show(qprog)


NUM_SHOTS = 1000

es = ExecutionSession(
    qprog, execution_preferences=ExecutionPreferences(num_shots=NUM_SHOTS)
)


def initial_qaoa_params(NUM_LAYERS) -> np.ndarray:
    initial_gammas = math.pi * np.linspace(0, 1, NUM_LAYERS)
    initial_betas = math.pi * np.linspace(1, 0, NUM_LAYERS)

    initial_params = []

    for i in range(NUM_LAYERS):
        initial_params.append(initial_gammas[i])
        initial_params.append(initial_betas[i])

    return np.array(initial_params)


initial_params = initial_qaoa_params(NUM_LAYERS)

# Record the steps of the optimization
intermediate_params = []
objective_values = []


# Define the callback function to store the intermediate steps
def callback(xk):
    intermediate_params.append(xk)


cost_func = lambda state: objective_portfolio_inequality(
    w_array=state["w_array"],
    returns=returns,
    covariances=covariances,
    return_coeff=return_coeff,
)


def estimate_cost_func(params: np.ndarray) -> float:
    objective_value = es.estimate_cost(
        cost_func=cost_func, parameters={"params": params.tolist()}
    )
    objective_values.append(objective_value)
    return objective_value


optimization_res = minimize(
    estimate_cost_func,
    x0=initial_params,
    method="COBYLA",
    callback=callback,
    options={"maxiter": 20},
)

res = es.sample({"params": optimization_res.x.tolist()})

print(f"Optimized parameters: {optimization_res.x.tolist()}")

sorted_counts = sorted(
    res.parsed_counts,
    key=lambda pc: objective_portfolio_inequality(
        pc.state["w_array"],
        returns=returns,
        covariances=covariances,
        return_coeff=return_coeff,
    ),
)

for sampled in sorted_counts:
    w = sampled.state["w_array"]
    print(
        f"solution={w} probability={sampled.shots/NUM_SHOTS} "
        f"cost={objective_portfolio_inequality(w_array=w,returns = returns, covariances = covariances, return_coeff= return_coeff)}"
    )

plt.plot(objective_values)
plt.xlabel("Iteration")
plt.ylabel("Objective Value")
plt.title("Optimization Progress")
