!pip install -qq -U "classiq[qsp]"
!pip install -qq "classiq[chemistry]"

import matplotlib.pyplot as plt
import numpy as np
from banded_be import *
from classical_functions_be import get_projected_state_vector
from pauli_be import *
from scipy import sparse

from classiq import *

np.random.seed(53)

def get_be_state(rhs_vec, be_qfunc, block_size, data_size):
    """
    Apply a block-encoding qfunc to an initial state and return the post-selected output.

Parameters
    ----------
    rhs_vec : list[real]
        Amplitudes of the initial data state |\psi>.

Length must be 2**data_size.
    be_qfunc : qfunc
        A Qmod qfunc with signature be_qfunc(block: QNum, data: QNum) that applies
        the block-encoding for the matrix A/s.
    block_size : int
        Number of qubits in the block variable.
    data_size : int
        Number of qubits in the data variable.

Returns
    -------
    array
        The post-selected data variable state equal to (A/s)|\psi>, obtained
        by projecting the block register onto 0 after applying the block encoding.
    qprog
        Thr resulting quantum program
    """

    @qfunc
    def main(
        data: Output[QNum[data_size]],
        block: Output[QNum[block_size]],
    ):

        allocate(block)
        prepare_amplitudes(rhs_vec, 0.0, data)
        be_qfunc(block, data)

    qprog = synthesize(main, preferences=Preferences(timeout_seconds=2000))
    # Post-select block == 0 on the statevector simulator.
    results = calculate_state_vector(qprog, filters={"block": 0})
    resulting_state = get_projected_state_vector(results, "data", data_size)
    return resulting_state, qprog

def verify_by_plot(mat, rhs, be_factor, qsol):
    # Plot quantum solution vs expected ine
    expected_sol = (mat @ rhs) / be_factor
    plt.plot(expected_sol, "o")
    ext_idx = np.argmax(np.abs(expected_sol))
    correct_sign = np.sign(expected_sol[ext_idx]) / np.sign(qsol[ext_idx])
    qsol *= correct_sign
    plt.plot(qsol, ".")

    return expected_sol

import pathlib

path = (
    pathlib.Path(__file__).parent.resolve()
    if "__file__" in locals()
    else pathlib.Path(".")
)

mat_name = "nozzle_small_scr"
matfile = "matrices/" + mat_name + ".npz"
mat_raw_scr = sparse.load_npz(path / matfile)

rval = mat_raw_scr.data
col = mat_raw_scr.indices
rowstt = mat_raw_scr.indptr
nr = mat_raw_scr.shape[0]

data_size = int(np.log2(nr))

# decompose to Paulis
paulis_list, transform_matrix = initialize_paulis_from_csr(
    rowstt, col, data_size, to_symmetrize=False
)
qubit_op = eval_pauli_op(paulis_list, transform_matrix, rval)
qubit_op.compress(1e-12)
hamiltonian = of_op_to_cl_op(qubit_op)

# Calculate scaling factor and block size
be_scaling_factor = sum([np.abs(term.coefficient) for term in hamiltonian.terms])
block_size = max(1, (len(hamiltonian.terms) - 1).bit_length())

rand_bvec = 1 - 2 * np.random.rand(2**data_size)
rand_bvec = (rand_bvec / np.linalg.norm(rand_bvec)).tolist()
hamiltonian = hamiltonian * (1 / be_scaling_factor)


# Define block encoding function
@qfunc
def block_encode_pauli(block: QNum, data: QNum):
    lcu_paulis_graycode(hamiltonian.terms, data, block)


qsol, qprog_pauli_be = get_be_state(
    rand_bvec, block_encode_pauli, block_size, data_size
)
show(qprog_pauli_be)

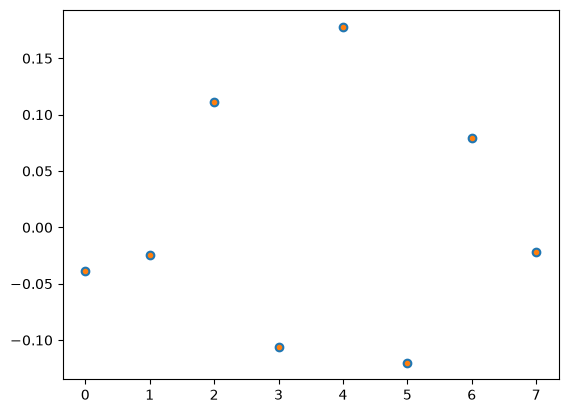

expected_sol = verify_by_plot(mat_raw_scr, rand_bvec, be_scaling_factor, qsol)
assert np.linalg.norm(qsol - expected_sol) < 1e-10

# Get diagonal properties
offsets, diags, diags_maxima, prepare_norm = get_be_banded_data(mat_raw_scr)

data_size = int(np.ceil(np.log2(len(diags[0]))))
s_size = int(np.ceil(np.log2(len(offsets))))

# Calculate scaling factor and block size
block_size = s_size + 1
be_scaling_factor = prepare_norm


# Define block encoding function
@qfunc
def block_encode_banded_matrix(block: QNum, data: QNum):
    block_encode_banded(
        offsets=offsets, diags=diags, prep_diag=diags_maxima, block=block, data=data
    )


rand_bvec = 1 - 2 * np.random.rand(2**data_size)
rand_bvec = (rand_bvec / np.linalg.norm(rand_bvec)).tolist()


qsol, qprog_banded_be = get_be_state(
    rand_bvec, block_encode_banded_matrix, block_size, data_size
)
show(qprog_banded_be)

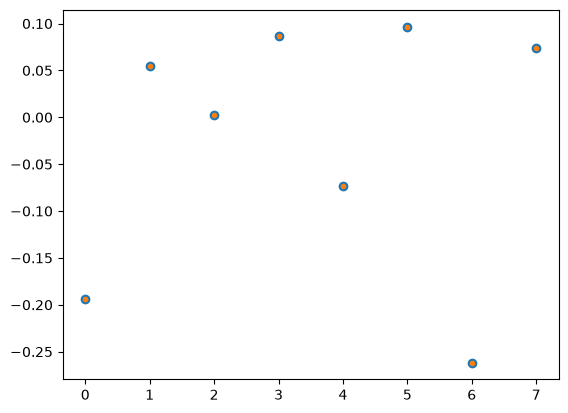

expected_sol = verify_by_plot(mat_raw_scr, rand_bvec, be_scaling_factor, qsol)
assert np.linalg.norm(qsol - expected_sol) < 1e-10

rval = mat_raw_scr.data
col = mat_raw_scr.indices
rowstt = mat_raw_scr.indptr
nr = mat_raw_scr.shape[0]

data_size = int(np.log2(nr))

# decompose to Paulis
paulis_list, transform_matrix = initialize_paulis_from_csr(
    rowstt, col, data_size, to_symmetrize=True
)
data_size += 1  # in the symmetric case the data size is increased by 1

qubit_op = eval_pauli_op(paulis_list, transform_matrix, rval)
qubit_op.compress(1e-12)
hamiltonian = of_op_to_cl_op(qubit_op)

# Calculate scaling factor and block size
be_scaling_factor = sum([np.abs(term.coefficient) for term in hamiltonian.terms])
block_size = max(1, (len(hamiltonian.terms) - 1).bit_length())

rand_bvec = 1 - 2 * np.random.rand(2**data_size)
rand_bvec = (rand_bvec / np.linalg.norm(rand_bvec)).tolist()
hamiltonian = hamiltonian * (1 / be_scaling_factor)


# Define block encoding function
@qfunc
def block_encode_pauli(block: QNum, data: QNum):
    lcu_paulis_graycode(hamiltonian.terms, data, block)


qsol, qprog_pauli_sym_be = get_be_state(
    rand_bvec, block_encode_pauli, block_size, data_size
)
show(qprog_pauli_sym_be)

mat_raw = mat_raw_scr.toarray()
mat_sym = np.block(
    [
        [np.zeros([nr, nr]), np.transpose(mat_raw)],
        [mat_raw, np.zeros([nr, nr])],
    ]
)

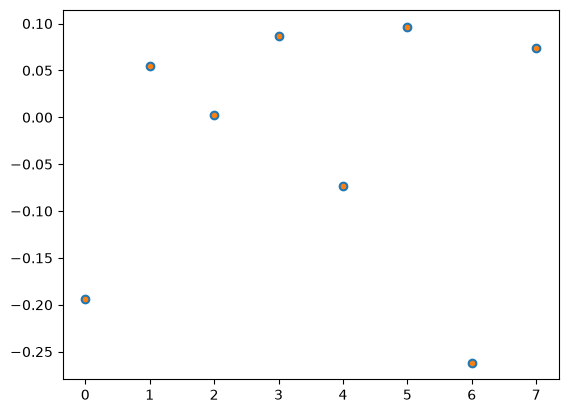

expected_sol = verify_by_plot(mat_sym, rand_bvec, be_scaling_factor, qsol)
assert np.linalg.norm(qsol - expected_sol) < 1e-10

offsets, diags, diags_maxima, prepare_norm = get_be_banded_data(mat_raw_scr)

data_size = int(np.ceil(np.log2(len(diags[0])))) + 1
s_size = int(np.ceil(np.log2(len(offsets))))

# Calculate scaling factor and block size
block_size = s_size + 3
be_scaling_factor = 2 * prepare_norm


# Define block encoding function
@qfunc
def block_encode_banded_matrix(block: QNum, data: QNum):
    block_encode_banded_sym(
        offsets=offsets, diags=diags, prep_diag=diags_maxima, block=block, data=data
    )


rand_bvec = 1 - 2 * np.random.rand(2**data_size)
rand_bvec = (rand_bvec / np.linalg.norm(rand_bvec)).tolist()


qsol, qprog_banded_sym_be = get_be_state(
    rand_bvec, block_encode_banded_matrix, block_size, data_size
)
show(qprog_banded_sym_be)

mat_raw = mat_raw_scr.toarray()
raw_size = 2 ** (data_size - 1)
mat_sym = np.block(
    [
        [np.zeros([raw_size, raw_size]), np.transpose(mat_raw)],
        [mat_raw, np.zeros([raw_size, raw_size])],
    ]
)
expected_sol = verify_by_plot(mat_sym, rand_bvec, be_scaling_factor, qsol)
assert np.linalg.norm(qsol - expected_sol) < 1e-10
