Simon’s algorithm [1], [2] is a basic quantum algorithm that demonstrates an exponential speed-up∗^* over its classical counterpart in the oracle complexity setting. The algorithm solves the so-called Simon’s problem: The algorithm treats the following problem:
  • Input: A function f:[0,1]n→[0,1]nf: [0,1]^n \rightarrow [0,1]^n.
  • Promise: There is a secret binary string ss such that f(x) = f(y) \iff y = x\oplus s\tag{1}~~, where ⊕\oplus is a bitwise xor operation.
  • Output: The secret string ss, using a minimal number of queries of ff.
Complexity: The Simon’s problem is hard to solve with classical deterministic or probabalistic approaches. This can be understood as follows: determining ss requires finding a collision f(x)=f(y)f(x)=f(y), as s=x⊕ys = x\oplus y. What is the minimum number of calls for measuring a collision? If we take the deterministic approach, in the worst case we need 2n−12^{n-1} calls. A probablistic approach, in the spirit of the one that solves the birthday problem [3], has slightly better scaling of O(2n/2)O(2^{n/2}) queries. The quantum approach requires O(n)O(n) queries, thus introducing an exponential speedup. ∗^* The exponential speedup is in the oracle complexity setting. It only refers to deterministic classical machines.
Keywords: Foundational quantum algorithm, Exponential speedup, Function evaluation, Oracle problem, Oracle/Query complexity.

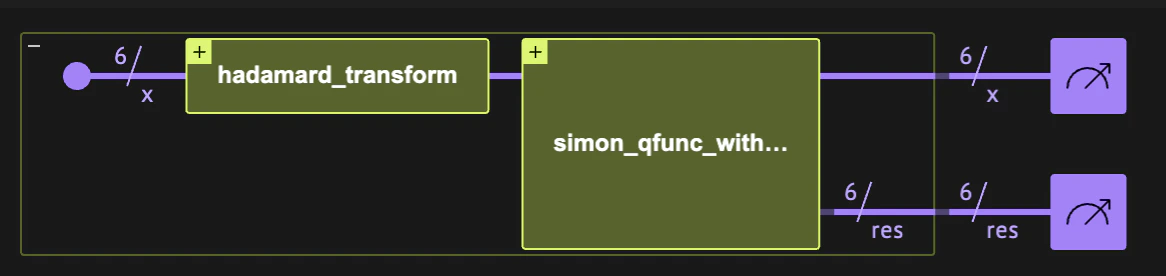

Screenshot 2025-06-19 at 22.54.03.png
In the following notebook we define the Simon’s algorithm, which has a quantum part and a classical postprocess part. Then, we run the algorithm on two different examples of a Simon’s function: one that can be defined with simple arithmetic and another that has a shallow implementation. A mathematical explanation of the algorithm is provided at the end of this notebook. Note that the function ff is 22-to-11 if s≠0ns\neq 0^n, and 11-to-11 otherwise. Hereafter, we refer to a function that satisfies the condition in Eq. (1) as a “Simon’s function”.

​
Building the Algorithm with Classiq

​

​
Quantum Part

The quantum part of the algorithm is rather simple, calling the quantum implementation of f(x)f(x), between two calls of the hadamard transform. The call of ff is done out-of-place, onto a quantum variable resres, whereas only the final state of xx is relevant to the classical postprocess to follow.
from classiq import *


@qfunc
def simon_qfunc(f_qfunc: QCallable[QNum, Output[QNum]], x: QNum, res: Output[QNum]):
    within_apply(lambda: hadamard_transform(x), lambda: f_qfunc(x, res))

​

​
Classical Postprocess

The classical part of the algorithm includes the following postprocessing steps:
  1. Finding n−1n-1 samples of xx that are linearly independent, {yk}1n−1\{y_k\}^{n-1}_{1}. It is guaranteed that this can be achieved with high probability (see the technical details below).
  2. Finding the string ss such that s⋅yk=0   ∀ks \cdot y_k=0 \,\,\, \forall k, where ⋅\cdot refers to a dot-product mod 2\text{mod}~ 2 (polynomial complexity in nn).
For these steps we use the Galois package, which extends NumPy to finite field operations.
# !pip install galois


import galois
import numpy as np

# here we work over Boolean arithmetics

- F(2)
GF = galois.GF(2)
We define two classical functions for the first step:
# The following function checks whether a set contains linearly independent vectors


def is_independent_set(vectors):
    matrix = GF(vectors)
    rank = np.linalg.matrix_rank(matrix)
    if rank == len(vectors):
        return True
    else:
        return False


def get_independent_set(samples):
    """
    The following function gets samples of n-sized strings from running the quantum part and returns an n-1 x n matrix,
    whose rows form a set if independent.
    """
    ind_v = []
    for v in samples:
        if is_independent_set(ind_v + [v]):
            ind_v.append(v)
            if len(ind_v) == len(v) - 1:
                # reached max set of N-1
                break
    return ind_v
For the second step we need to solve a linear set of equations. We have n−1n-1 equations on a binary vector of size nn. It has two solutions, one of which is the trivial solution 0n0^n, while the other gives us the secret string ss. The Galois package handles this task as follows:
def get_secret_integer(matrix):
    """
    Finds a binary vector that “solves” the equation
    Ax=0 (mod 2) —
    and then turns that vector into a single integer, which serves as the “secret”.
    """
    gf_v = GF(matrix)  # converting to a matrix over Z_2
    null_space = gf_v.T.left_null_space()  # finding the right-null space of the matrix
    return int(
        "".join(np.array(null_space)[0][::-1].astype(str)), 2
    )  # converting from binary to integer
—
Next, we provide two different examples of Simon’s function and run the Simon’s algorithm to find their secret string.

​
Example: Arithmetic Simon’s Function

An example of a valid f(x)f(x) function that satisfies the condition in Eq. (1): f(x)=min⁡(x,x⊕s).f(x) = \min(x, x\oplus s). Clearly, we have that f(x⊕s)=min⁡(x⊕s,(x⊕s)⊕s)=min⁡(x⊕s,x)=f(x)f(x\oplus s) = \min(x\oplus s, (x\oplus s)\oplus s)=\min(x\oplus s, x)=f(x).

​

​
Implementing the Simon’s Function

We define the function, as well as a model that applies it on all computational basis states to illustrate that it is a two-to-one function.
from classiq.qmod.symbolic import min


@qperm
def simon_qfunc_simple(s: CInt, x: Const[QNum], res: Output[QNum]):
    res |= min(x, x ^ s)
Let us run it with n=5n=5 and s=′00110′(≡6)s={'}00110{'} (\equiv 6), starting with a uniform distribution of ∣x⟩|x\rangle over all possible states:
NUM_QUBITS = 5
S_SECRET = 6


@qfunc
def main(x: Output[QNum[NUM_QUBITS]], res: Output[QNum]):
    allocate(x)
    hadamard_transform(x)
    simon_qfunc_simple(S_SECRET, x, res)


qmod_1 = create_model(main)

# synthesize
qprog_1 = synthesize(
    qmod_1, constraints=Constraints(optimization_parameter=OptimizationParameter.WIDTH)
)
# vizualize
show(qprog_1)

# execute
result_1 = execute(qprog_1).result_value()
Output:

Quantum program link: https://platform.classiq.io/circuit/34mXZB9OZkWeWOpIZVwXMziie2v

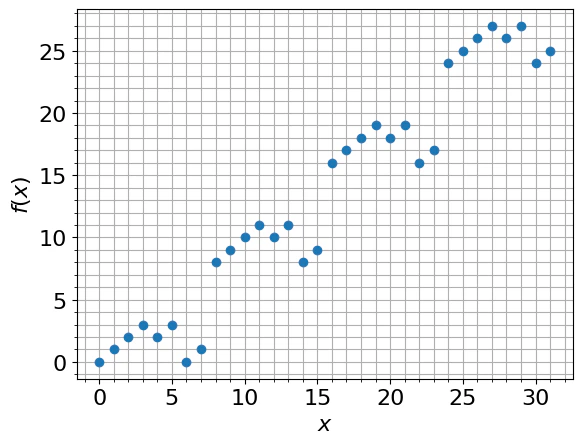

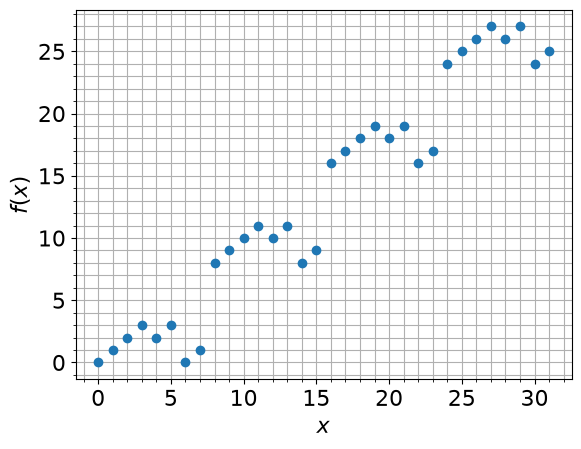

By plotting the results we can see that this is a two-to-one function:
import matplotlib.pyplot as plt

my_result = {
    sample.state["x"]: sample.state["res"] for sample in result_1.parsed_counts
}
fig, ax = plt.subplots()
ax.plot(my_result.keys(), my_result.values(), "o")
ax.grid(axis="y", which="minor")
ax.grid(axis="y", which="major")
ax.grid(axis="x", which="minor")
ax.grid(axis="x", which="major")
plt.xlabel("$x$", fontsize=16)
plt.ylabel("$f(x)$", fontsize=16)
plt.yticks(fontsize=16)
plt.xticks(fontsize=16)
ax.minorticks_on()
output

​

​
Running the Simon’s Algorithm

Taking nn number of shots guarantees getting a set of n−1n-1 independent strings with high probability (assuming a noiseless quantum computer) (see technical explanation below). Moreover, increasing the number of shots by a constant factor provides an exponential improvement. Here we take 50∗n50*n shots.
from classiq.execution import ExecutionPreferences


@qfunc
def main(x: Output[QNum[NUM_QUBITS]], res: Output[QNum]):
    allocate(x)
    simon_qfunc(lambda x, res: simon_qfunc_simple(S_SECRET, x, res), x, res)


qmod_2 = create_model(
    main,
    constraints=Constraints(optimization_parameter=OptimizationParameter.WIDTH),
    # execution_preferences=ExecutionPreferences(num_shots=50 * NUM_QUBITS),
    out_file="simon",
)
We synthesize and execute to obtain the results:
qprog_2 = synthesize(qmod_2)

# increasing the number of shots
prefs_more_shots = ExecutionPreferences(num_shots=50 * NUM_QUBITS)
with ExecutionSession(qprog_2, execution_preferences=prefs_more_shots) as es:
    result_2 = es.sample()

bitstrings = [f"{x:0{NUM_QUBITS}b}" for x in result_2.dataframe["x"].tolist()]
reversed_bitstrings = [b[::-1] for b in bitstrings]
samples = [[int(bit) for bit in b] for b in reversed_bitstrings]


matrix_of_ind_v = get_independent_set(samples)
assert (
    len(matrix_of_ind_v) == NUM_QUBITS - 1
), "Failed to find an independent set, try to increase the number of shots"
quantum_secret_integer = get_secret_integer(matrix_of_ind_v)


print("The secret binary string (integer) of f(x):", S_SECRET)
print("The result of the Simon's Algorithm:", quantum_secret_integer)
assert (
    S_SECRET == quantum_secret_integer
), "The Simon's algorithm failed to find the secret key."
Output:

The secret binary string (integer) of f(x): 6
  The result of the Simon's Algorithm: 6

​
Example: Shallow Simon’s Function

In the second example we take a Simon’s function that was presented in a recent paper [4]: Take a secret string of the form s=0n−l1l=00…0⏟n−l1…111⏟l ,s=0^{n-l}1^l = \underbrace{00\dots0}_{n-l}\underbrace{1\dots111}_{l}~, and define the 2-to-1 function: fs(∣x⟩n)=∣x0⟩∣x1⟩…∣xn−l−1⟩⏟n−l∣0⟩∣xn−l+1⊕xn−l⟩…∣xn−1⊕xn−l⟩⏟l−1.f_{s}(|x\rangle_n) = \underbrace{|x_0\rangle |x_1\rangle \dots |x_{n-l-1}\rangle}_{n-l} |0\rangle \underbrace{|x_{n-l+1}\oplus x_{n-l}\rangle \dots |x_{n-1}\oplus x_{n-l}\rangle}_{l-1}. The function ff operates as follows: for the first n−ln-l elements, we simply “copy” the data, whereas for the last ll elements we apply a xor with the n−ln-l element. A simple proof that this is indeed a 2-to-1 function is given in Ref. [4]. Comment: Ref. [4] employed further reduction of the function implementation (reducing the nn-sized Simon’s problem to an (n−l)(n-l)-sized problem), added a classical postprocess of randomly permutating over the result of f(x)f(x) to increase the hardness of the problem, and also included some NISQ analysis. These steps were taken to show an algorithmic speedup on real quantum hardware.

​

​
Implementing the Simon’s Function

The first n−ln-l “classical copies”, ∣xk,0⟩→∣xkxk⟩|x_k,0\rangle\rightarrow |x_k x_k\rangle, can be implemented by CXCX gates. The xor operations, ∣xk,0⟩→∣xk,xk⊕xn−l⟩|x_k,0\rangle\rightarrow |x_k, x_k \oplus x_{n-l}\rangle, can be implemented by two CXCX operations, one to form a “classical copy” of xkx_k, followed by another CXCX operation, implementing a xor with xn−lx_{n-l}.
@qperm
def simon_qfunc_with_bipartite_s(
    partition_index: CInt, x: Const[QArray], res: Output[QArray]
):
    allocate(x.len, res)

    repeat(x.len - partition_index, lambda i: CX(x[i], res[i]))
    repeat(
        partition_index - 1,
        lambda i: (
            CX(
                x[x.len - partition_index + 1 + i],
                res[x.len - partition_index + 1 + i],
            ),
            CX(x[x.len - partition_index], res[x.len - partition_index + 1 + i]),
        ),
    )

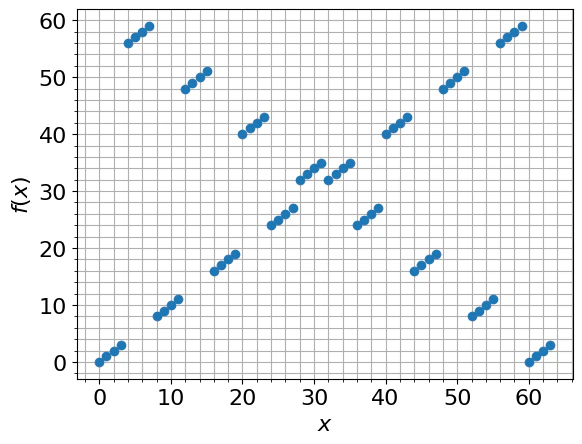

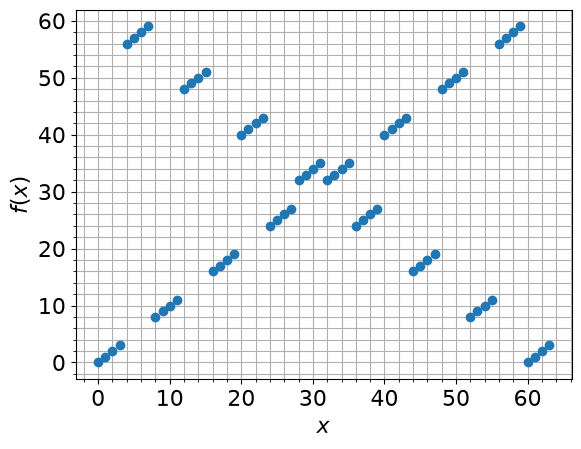

Here we take a specific example and plot f(x)f(x) for all possible xx values:
NUM_QUBITS = 6
PARTITION_INDEX = 4


@qfunc
def main(x: Output[QNum[NUM_QUBITS]], res: Output[QNum]):
    allocate(x)
    hadamard_transform(x)
    simon_qfunc_with_bipartite_s(PARTITION_INDEX, x, res)


# create model
qmod_3 = create_model(main)
# synthesize
qprog_3 = synthesize(
    qmod_3, constraints=Constraints(optimization_parameter=OptimizationParameter.DEPTH)
)
# vizualize
show(qprog_3)

# execute
result_3 = execute(qprog_3).result_value()

# plot the f(x)
my_result = {
    sample.state["x"]: sample.state["res"] for sample in result_3.parsed_counts
}
fig, ax = plt.subplots()
ax.plot(my_result.keys(), my_result.values(), "o")
ax.grid(axis="y", which="minor")
ax.grid(axis="y", which="major")
ax.grid(axis="x", which="minor")
ax.grid(axis="x", which="major")
plt.xlabel("$x$", fontsize=16)
plt.ylabel("$f(x)$", fontsize=16)
plt.yticks(fontsize=16)
plt.xticks(fontsize=16)
ax.minorticks_on()
Output:

Quantum program link: https://platform.classiq.io/circuit/34mXayl4zIuAmxIjnE4RBKh6W6e
output

​

​
Running the Simon’s Algorithm

As in the first example, we take 50∗n50*n shots.
@qfunc
def main(x: Output[QNum[NUM_QUBITS]], res: Output[QNum]):
    allocate(x)
    simon_qfunc(
        lambda x, res: simon_qfunc_with_bipartite_s(PARTITION_INDEX, x, res), x, res
    )


qmod_4 = create_model(main)
# qmod_4 = update_execution_preferences(qmod_4, num_shots=50 * NUM_QUBITS)
We synthesize and execute to obtain the results:
qprog_4 = synthesize(qmod_4)
show(qprog_4)

# increasing the number of shots
prefs_more_shots = ExecutionPreferences(num_shots=50 * NUM_QUBITS)
with ExecutionSession(qprog_4, execution_preferences=prefs_more_shots) as es:
    result_4 = es.sample()

bitstrings = [f"{x:0{NUM_QUBITS}b}" for x in result_4.dataframe["x"].tolist()]
reversed_bitstrings = [b[::-1] for b in bitstrings]
samples = [[int(bit) for bit in b] for b in reversed_bitstrings]
Output:

Quantum program link: https://platform.classiq.io/circuit/34mXbMMLtk1sPiueLNiSsdYPRwP



matrix_of_ind_v = get_independent_set(samples)
assert (
    len(matrix_of_ind_v) == NUM_QUBITS - 1
), "Failed to find an independent set, try to increase the number of shots"
quantum_secret_integer = get_secret_integer(matrix_of_ind_v)


s_secret = int("1" * PARTITION_INDEX + "0" * (NUM_QUBITS

- PARTITION_INDEX), 2)
print("The secret binary string (integer) of f(x):", s_secret)
print("The result of the Simon's Algorithm:", quantum_secret_integer)
assert (
    s_secret == quantum_secret_integer
), "The Simon's algorithm failed to find the secret key."
Output:

The secret binary string (integer) of f(x): 60
  The result of the Simon's Algorithm: 60

​
Technical Notes

This section provides some technical details about the quantum and classical parts of the Simon’s algorithm.

​

​
Quantum Part

Following the three blocks of the algorithm: ∣0⟩n∣0⟩n→H⊗n12n/2∑x=02n−1∣x⟩n∣0⟩n→Oracle(f(x))12n/2∑x=02n−1∣x⟩n∣f(x)⟩n→H⊗n12n∑y=02n−1∣y⟩n(∑x=02n−1(−1)x⋅y∣f(x)⟩n)  .|0\rangle_n |0\rangle_n \xrightarrow[H^{\otimes n}]{} \frac{1}{2^{n/2}}\sum^{2^n-1}_{x=0}|x\rangle_n |0\rangle_n \xrightarrow[\text{Oracle(f(x))}]{} \frac{1}{2^{n/2}}\sum^{2^n-1}_{x=0}|x\rangle_n |f(x)\rangle_n \xrightarrow[H^{\otimes n}]{} \frac{1}{2^{n}} \sum^{2^n-1}_{y=0} |y\rangle_n \left( \sum^{2^n-1}_{x=0}(-1)^{x\cdot y} |f(x)\rangle_n \right)~~. We next measure the first register ∣y⟩|y\rangle. First, we treat the case where s≠0s\neq 0 that f(x)f(x) is a 2-to-1 function. The claim is that for any measured state yy, we must have that y⋅s=0y\cdot s=0. To see this, calculate the probability of measuring some state ∣y⟩|y\rangle: P(∣y⟩)∝∣∑x=02n−1(−1)x⋅y∣f(x)⟩n∣2.P(|y\rangle) \propto \left| \sum^{2^n-1}_{x=0}(-1)^{x\cdot y} |f(x)\rangle_n \right|^2. Now, change the sum to run over the image of f(x)f(x) instead of over all x∈[0,2n−1]x\in [0,2^{n}-1]. Since for any f(x)f(x) there are two sources in the domain, xx and x⊕sx\oplus s, we can write P(∣y⟩)∝∣∑f(x)∈imag(f)[(−1)x⋅y+(−1)(x⊕s)⋅y]∣f(x)⟩n∣2.P(|y\rangle) \propto \left| \sum_{f(x) \in imag(f)} \left[ (-1)^{x\cdot y} + (-1)^{(x\oplus s )\cdot y} \right]|f(x)\rangle_n \right|^2. Since (−1)x⋅y+(−1)(x⊕s)⋅y=(−1)x⋅y(1+(−1)s⋅y)(-1)^{x\cdot y} + (-1)^{(x\oplus s )\cdot y} = (-1)^{x\cdot y}( 1+ (-1)^{s\cdot y}) vanishes when s⋅y≠0 (mod 2)s\cdot y \neq 0 ~(\text{mod}~ 2), for any measured yy we have y⋅s=0y\cdot s = 0. Therefore, every measurement yy gives a random vector orthogonal to ss. Repeating O(n)O(n) measurements collects n−1n-1 linear modular equations which span the orthogonal space to ss.

​

​
Classical Part

We have a set of possible yy values that can be measured, each with a probability of 1/M1/M, where MM is the set size. If s=0ns=0^n, we have M=2nM=2^n, whereas for s≠0ns\neq 0^n the set size is M=2n−1M=2^{n-1}. The probability of measuring a set of n−1n-1 linearly independent binary strings yy can be calculated as follows (see also the birthday problem [2]): For the first string, y0y_0, we just require that we do not pick y=0ny=0^n, so P(y0)=1−1/MP(y_0)=1-1/M. Then, for the next string, we require that it is not in {a0y0   ∣a0=0,1}\left\{a_0 y_0\,\,\,| a_0=0,1\right\}, thus P(y1)=(1−2/M)P(y_1)=(1-2/M). The following string must not be picked out of {a0y0+a1y1   ∣a0,a1=0,1}\left\{a_0 y_0+a_1y_1\,\,\,| a_0, a_1=0,1\right\}, thus P(y2)=(1−22/M)P(y_2)=(1-2^2/M). We can continue with this procedure up to yn−2y_{n-2} (in total n−1n-1 vectors) to get Pindependent={Πk=0n−2(1−2k/2n), if f(x) is 1-to-1,Πk=0n−2(1−2k/2n−1), if f(x) is 2-to-1     ≥Πk=1∞(1−12k)≈0.2887≥1/4.P_{\rm independent} = \left\{\begin{array}{l l} \Pi^{n-2}_{k=0} \left(1-2^k/2^{n}\right) & \text{, if } f(x) \text{ is 1-to-1},\\ \Pi^{n-2}_{k=0} \left(1-2^k/2^{n-1}\right) & \text{, if } f(x) \text{ is 2-to-1} \end{array} \,\,\,\,\, \geq \Pi^{\infty}_{k=1}\left(1-\frac{1}{2^k}\right) \approx 0.2887 \geq 1/4. \right. If we repeat the experiment, the probability of measuring an independent set improves exponentially. Solving the linear system recovers ss.

​
Reference

[1] Simon, D. R. (1997). On the power of quantum computation. SIAM journal on computing, 26(5), 1474-1483. [2] Simon’s Algorithm (Wikipedia). [3] Birthday problem. [4] Singkanipa P. et al. Demonstration of Algorithmic Quantum Speedup for an Abelian Hidden Subgroup Problem.
