Deutsch-Jozsa Algorithm

View on GitHub

Open this notebook in GitHub to run it yourself

The Deutsch-Jozsa algorithm [1], [2], named after David Deutsch and Richard Jozsa, is one of the first fundamental quantum algorithms showing exponential speedup over its classical counterpart $^*$ . While it has no practical applicative use, it serves as a toy model for quantum computing, demonstrating how the concepts of superposition and interference enable quantum algorithms to outperform classical ones. The algorithm treats the following problem:

Input: A black box Boolean function $f(x)$ that acts on the integers in the range $[0, 2^{n}-1]$ .

Promise: The function is either constant or balanced (for half of the values it is 1 and for the other half it is 0).

Output: Whether the function is constant or balanced.

Complexity: The quantum approach requires a single query. If we require a deterministic answer to the problem, classically, we must inquire of the oracle $2^{n-1}+1$ times in the worst case. Therefore, the quantum algorithm exhibits a clear exponential speedup. However, without requiring deterministic determination - namely, allowing application of the classical probabilistic algorithm to get the result up to some error - then the exponential speedup is lost: taking $k$ classical evaluations of the function $f$ determines whether the function is constant or balanced, with a probability of $1 - 1/2^k$ . $^*$ The exponential speedup is in the oracle complexity setting. It only refers to deterministic classical machines.
Keywords: Foundational quantum algorithms, Phase oracle, Function evaluation, Oracle problem, Oracle/Query complexity.

We define the Deutsch-Jozsa algorithm, which has a quantum part and a classical postprocess part. Then, we run the algorithm on two different examples, one with a simple

f(x)

and another that is more complex. A mathematical explanation of the algorithm is provided at the end of this notebook.

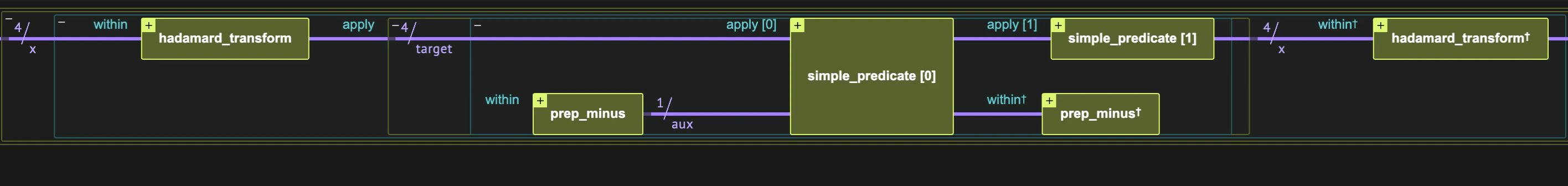

Figure

The Deutsch-Jozsa algorithm

How to Build the Algorithm with Classiq

We define a deutsch_jozsa quantum function whose arguments are a quantum function for the black box

f(x)

, and a quantum variable on which it acts,

x

. The Deutsch-Jozsa algorithm is composed of three quantum blocks (see Figure 1): a Hadamard transform, an arithmetic oracle for the black box function, and another Hadamard transform.

The Quantum Part

from classiq import *


@qfunc
def deutsch_jozsa(predicate: QCallable[QNum, QBit], x: QNum) -> None:
    within_apply(
        lambda: hadamard_transform(x),
        lambda: phase_oracle(predicate=lambda x, y: predicate(x, y), target=x),
    )

The Classical Postprocess

The classical part of the algorithm reads: The probability of measuring the

|0\rangle_n

state is 1 if the function is constant and 0 if it is balanced. We define a classical function that gets the execution results from running the quantum part and returns whether the function is constant or balanced:

def post_process_deutsch_jozsa(parsed_results):
    if len(parsed_results) == 1:
        if 0 not in parsed_results:
            print("The function is balanced")
        else:
            print("The function is constant")
    else:
        print(
            "cannot decide as more than one output was measured, the distribution is:",
            parsed_results,
        )

Example: Simple Arithmetic Oracle

We start with a simple example on

n=4

qubits, and

f(x)= x >7

. Classically, in the worst case, the function should be evaluated

2^{n-1}+1=9

times. However, with the Deutsch-Jozsa algorithm, this function is evaluated only once. We build a predicate for this specific use case:

@qperm
def simple_predicate(x: Const[QNum], res: QBit) -> None:
    res ^= x > 7

Next, we define a model by inserting the predicate into the deutsch_jozsa function:

NUM_QUBITS = 4


@qfunc
def main(x: Output[QNum[NUM_QUBITS]]):
    allocate(x)
    deutsch_jozsa(lambda x, y: simple_predicate(x, y), x)


qprog_1 = synthesize(main)

Finally, we execute and call the classical postprocess:

df_1 = sample(qprog_1)
results_list_1 = df_1["x"].tolist()
post_process_deutsch_jozsa(results_list_1)

Output:


Submitting job to simulator

Output:


Job: https://platform.classiq.io/jobs/2bbd8df5-6fc3-4a28-8184-099a67059147

Output:


The function is balanced

show(qprog_1)

Output:

Quantum program link: https://platform.classiq.io/circuit/3HoVfTUkY9BDujZQBb6Q6B52Nsc


Example: Complex Arithmetic Oracle

Generalizing to more complex scenarios makes no difference for modeling. Let us take a complicated function, working with

n=3

: a function

f(x)

that first takes the maximum between the input bitwise-xor with 4 and the input bitwise-and with 3, then checks whether the result is greater or equal to

Can you tell whether the function is balanced or constant?

This time we provide a width bound to the synthesis engine. We follow the three steps as before:

from classiq.qmod.symbolic import max

NUM_QUBITS = 3
MAX_WIDTH = 11


@qperm
def complex_predicate(x: Const[QNum], res: QBit) -> None:
    res ^= max(x ^ 4, x & 3) >= 4


@qfunc
def main(x: Output[QNum[NUM_QUBITS]]):
    allocate(x)
    deutsch_jozsa(lambda x, y: complex_predicate(x, y), x)


qprog_2 = synthesize(
    model=main,
    constraints=Constraints(max_width=MAX_WIDTH),
)

df_2 = sample(qprog_2)
results_list_2 = df_2["x"].tolist()
post_process_deutsch_jozsa(results_list_2)

Output:


Submitting job to simulator

Output:


Job: https://platform.classiq.io/jobs/26f8bb58-237d-4dce-a580-f45705c042a5

Output:


The function is balanced

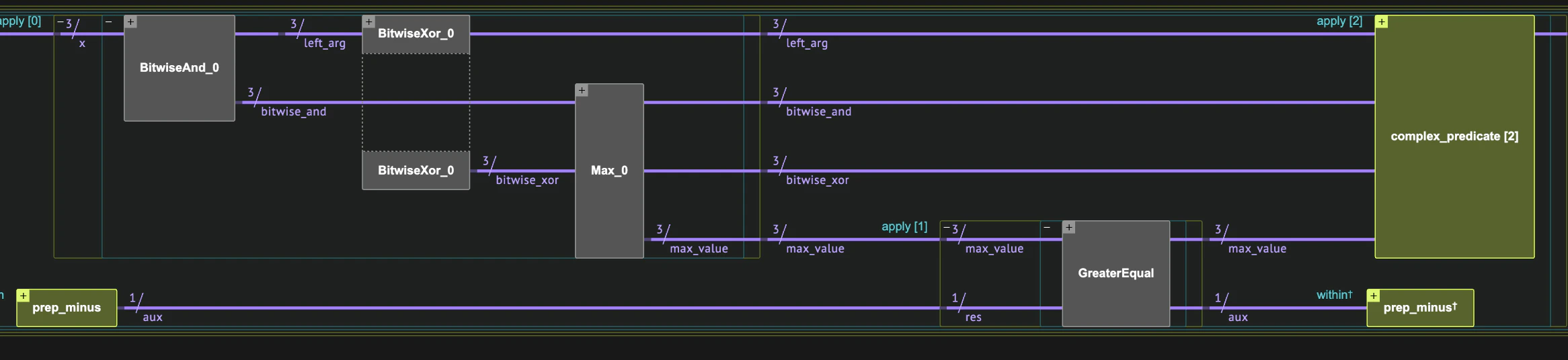

Figure

The Deutsch-Jozsa algorithm for the complex example, focusing on oracle implementation (the last block performs uncomputation).

We can visualize the circuit obtained from the synthesis engine. Figure 2 presents the complex structure of the oracle, generated automatically by the synthesis engine.

show(qprog_2)

Output:

Quantum program link: https://platform.classiq.io/circuit/3HoVh7Td0JGEq8T0bzCykoY1tpp


Technical Notes

A brief summary of the linear algebra behind the Deutsch-Jozsa algorithm. The first Hadamard transformation generates an equal superposition over all the standard basis elements:

|0\rangle_n \xrightarrow[H^{\otimes n}]{} \frac{1}{2^{n/2}}\sum^{2^n-1}_{j=0}|j\rangle_n.

The arithmetic oracle gets a Boolean function and adds an

e^{\pi i}=-1

phase to all states for which the function returns true:

\frac{1}{2^{n/2}}\sum^{2^n-1}_{j=0}|j\rangle_n \xrightarrow[\text{Oracle}(f(j))]{}\frac{1}{2^{n/2}}\sum^{2^n-1}_{j=0}(-1)^{f(j)}|j\rangle_n.

Finally, applying the Hadamard transform, which can be written as

H^{\otimes n}\equiv \frac{1}{2^{n/2}}\sum^{2^n-1}_{k,l=0}(-1)^{k\cdot l} |k\rangle \langle l|

, gives

\frac{1}{2^{n/2}}\sum^{2^n-1}_{j=0}(-1)^{f(j)}|j\rangle \xrightarrow[H^{\otimes n}]{} \sum^{2^n-1}_{k=0} \left(\frac{1}{2^{n}}\sum^{2^n-1}_{j=0}(-1)^{f(j)+j\cdot k} \right) |k\rangle.

The probability of getting the state

|k\rangle = |0\rangle

P(0)=\left|\frac{1}{2^{n}}\sum^{2^n-1}_{j=0}(-1)^{f(j)} \right|^2 = \left\{ \begin{array}{l l} 1 & \text{if } f(x) \text{ is constant} \\ 0 & \text{if } f(x) \text{ is balanced.} \end{array} \right.

References

[1]: David Deutsch & Richard Jozsa. Rapid solutions of problems by quantum computation. Proceedings of the Royal Society of London A. 439 (1907): 553-558. (1992). [2]: Deutsch Jozsa (Wikipedia)
