QAOA and Adaptive QAOA
The notebook demonstrates the solution of a generic optimization problem using both the "vanilla" QAOA (Quantum Approximate Optimization Algorithm) and the Adaptive version
import matplotlib.pyplot as plt
from classiq import *
Hamiltonian encoding
The optimization objective function is encoded into a Hamiltonian function formulated as a weighted sum of Pauli strings:
with each pauli string, \(P_k\), composed of a Pauli operation (\(\sigma\in\left\{I,X,Y,Z\right\}\)) applied to each of the qubits in the register.
For example, \(XIIZ\), applies a Pauli \(X\) to the first qubit and a Pauli \(Z\) to the fourth qubit
The encoding of the objective start by defining the function with binary variables, \(x_i\in\left\{1,-1\right\}\), and then defining Pauli strings with \(Z_i\) corresponding to the original variables. If the objective variables' domain is \(x_i\in\left\{0,1\right\}\), a transformation is used: \(x_i=\left(1-Z_i\right)/2\) (commonly referred to as spin to bit transformation)
Since the encoding results in Pauli strings composed only of \(I\), and \(Z\), the Pauli string is called diagonal, this has the following benefits:
-
Easy exponentiation - the exponentiation results in simple to implement single or multi-qubit Z rotations
-
No superposition mixing - the diagonal Hamiltonian does not create entanglement or rotate between basis states, enabling computation basis measurement
-
Efficient measurement - all \(\left\{I,Z\right\}^{\otimes n}\) strings commute, allowing for a single simultaneous measurement of all strings
QMod tip
In the following cell the variable h is set to a diagonal hamiltonian using a self explanatory syntax that sums sparse Pauli strings, that is only the non identity Paulis are specified. For example the first line, - 0.1247375 * Pauli.Z(0) * Pauli.Z(1) creates the string ZZIII with the weight -0.1247375. The length of the string, is inferred from the largest qubit index in the sum. The resulating variable has the type SparsePauliOp
For the optimization function a dual-use function is used for the Hamiltonian. This function takes a argument that can be either a QArray or a list[int]. This allows the same function to be used both to:
-
compute the cost expectation on the measurement results which are binary numbers (\(0,1\))
-
create a quantum observable in the circuit, resulting in quantum gates
the additional cost_func function negates the hamiltonian function since the problem involves finding the maximum value, but the optimization procedure (scipy.optimize.minimize) performs a minimization
from typing import Tuple
from sympy import sympify
from classiq.qmod.symbolic_expr import SymbolicExpr
QFloatExr = SymbolicExpr
h = (
-0.1247375 * Pauli.Z(0) * Pauli.Z(1)
- 0.1747375 * Pauli.Z(0)
- 0.1207125 * Pauli.Z(1) * Pauli.Z(2)
- 0.2954500 * Pauli.Z(1)
- 0.1163000 * Pauli.Z(2) * Pauli.Z(3)
- 0.2870125 * Pauli.Z(2)
- 0.1247125 * Pauli.Z(3) * Pauli.Z(4)
- 0.2910125 * Pauli.Z(3)
- 0.1747125 * Pauli.Z(4)
+ 1.7093000 * Pauli.I(0)
)
def hamiltonian(v: QArray | list[int]) -> QFloatExr:
single_weights = [-0.1747375, -0.29545, -0.2870125, -0.2910125, -0.1747125]
nearest_neighbors_weights = [-0.1247375, -0.1207125, -0.1163, -0.1247125]
def z_value(bit: int | QBit) -> QFloatExr:
return sympify(1.0) - 2 * bit
hamiltonian = sympify(1.7093)
for i, w in enumerate(nearest_neighbors_weights):
hamiltonian += w * z_value(v[i]) * z_value(v[i + 1])
for i, w in enumerate(single_weights):
hamiltonian += w * z_value(v[i])
return hamiltonian
def cost_func(v: QArray | list[int]) -> QFloatExr:
return -hamiltonian(v) # negative sign for maximization
The Cost Layer
As mentioned above, since the Hamiltonian is diagonal, its exponentiation is straightforward and ammounts to phase addition due to Z rotations.
This is accomplished with the phase function, which results in an efficient quantum implemetation of \(e^{-i \gamma H_c}\)
@qfunc
def cost_layer(gamma: CReal, v: QArray):
phase(cost_func(v), gamma)
The Mixer Layer
The QAOA mixer is defined as \(H_M=\sum{X_i}\), and its exponentiaion is simply a \(R_X\) rotation of the same angle (\(\beta\)) on all the qubits
@qfunc
def mixer_layer(beta: CReal, qba: QArray):
apply_to_all(lambda q: RX(2 * beta, q), qba)
The QAOA Ansatz
The parametric QAOA ansatz is composed of \(p\) pairs of exponentiated Mixer and Cost Hamiltonians:
@qfunc
def qaoa_ansatz(
gammas: CArray[CReal],
betas: CArray[CReal],
qba: QArray,
):
n = gammas.len
assert n == betas.len, "Number of gamma and beta parameters must be equal"
for i in range(n):
cost_layer(gammas[i], qba)
mixer_layer(betas[i], qba)
Assemble the full QAOA algorithm
We select \(p=3\) layers for the QAOA. The quantum program takes the \(2p\) parameters as a single list (because the scipy.optimize.minimize function manipulate a 1-D array of parameters), and the quantum register of the \(5\) qubits.
The qubits are initialized to \(\left|+\right\rangle^{\otimes 5}\), with a hadamard_transform and then the qaoa_ansatz, \(U\left(\vec{\beta},\vec{\gamma}\right)\), is applied
from typing import Final
NUM_LAYERS: Final[int] = 3
NUM_QUBITS: Final[int] = 5
@qfunc
def main(
params: CArray[
CReal, NUM_LAYERS * 2 # type: ignore
], # Execution parameters (first half: gammas, second half: betas)
v: Output[QArray[QBit, NUM_QUBITS]], # type: ignore
):
allocate(v)
hadamard_transform(v)
gammas = params[0:NUM_LAYERS]
betas = params[NUM_LAYERS : NUM_LAYERS * 2]
qaoa_ansatz(gammas, betas, v)
qprog = synthesize(main)
es = ExecutionSession(qprog)
show(qprog)
Classical Optimization - "Vanilla" QAOA
the \(\vec{\beta}\), and \(\vec{\gamma}\) parameters are tuned until the objective function converges.
results of the parameters, and the solution vector are shown below
cost_trace = []
params_history = []
def objective_func(params):
cost_estimation = es.estimate_cost(
lambda state: cost_func(state["v"]), {"params": params.tolist()}
)
cost_trace.append(cost_estimation)
params_history.append(params.copy())
return cost_estimation
import numpy as np
import scipy
from tqdm import tqdm
MAX_ITERATIONS = 60
initial_params = np.concatenate(
(np.linspace(0, 1, NUM_LAYERS), np.linspace(1, 0, NUM_LAYERS))
)
with tqdm(total=MAX_ITERATIONS, desc="Optimization Progress", leave=True) as pbar:
def progress_bar(xk: np.ndarray) -> None:
pbar.update(1)
optimization_results = scipy.optimize.minimize(
fun=objective_func,
x0=initial_params,
method="COBYLA",
options={"maxiter": MAX_ITERATIONS},
callback=progress_bar,
)
# Sample the circuit using the optimized parameters
res = es.sample({"params": optimization_results.x.tolist()})
es.close()
print(f"Optimized parameters: {optimization_results.x.tolist()}")
Optimization Progress: 43%|████▎ | 26/60 [01:04<01:24, 2.50s/it]
Optimized parameters: [-0.13200533048244228, 1.5033108681979552, 0.9303607749202144, 1.9752193684116381, 0.4798598602090752, 0.10843038230378058]

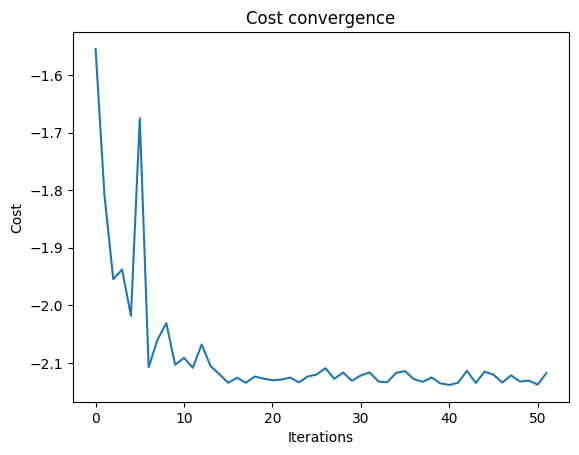

Plotting the convergence graph:
plt.plot(cost_trace)
plt.xlabel("Iterations")
plt.ylabel("Cost")
plt.title("Cost convergence")
plt.show()
Displaying and Discussing the Results
print(f"Optimized parameters: {optimization_results.x.tolist()}")
sorted_counts = sorted(res.parsed_counts, key=lambda pc: cost_func(pc.state["v"]))
num_shots = sum(state.shots for state in res.parsed_counts)
for sampled in sorted_counts:
solution = sampled.state["v"]
probability = sampled.shots / num_shots
cost_value = cost_func(solution)
print(f"solution={solution} probability={probability:.3f} cost={cost_value:.3f}")
Optimized parameters: [-0.13200533048244228, 1.5033108681979552, 0.9303607749202144, 1.9752193684116381, 0.4798598602090752, 0.10843038230378058]
solution=[1, 1, 1, 1, 1] probability=0.264 cost=-2.446
solution=[1, 1, 1, 0, 1] probability=0.088 cost=-2.346
solution=[1, 1, 0, 1, 1] probability=0.069 cost=-2.346
solution=[0, 1, 1, 1, 1] probability=0.120 cost=-2.346
solution=[1, 1, 1, 1, 0] probability=0.110 cost=-2.346
solution=[1, 0, 1, 1, 1] probability=0.076 cost=-2.346
solution=[1, 0, 1, 1, 0] probability=0.047 cost=-2.246
solution=[0, 1, 1, 0, 1] probability=0.043 cost=-2.246
solution=[1, 1, 0, 1, 0] probability=0.037 cost=-2.246
solution=[0, 1, 0, 1, 1] probability=0.034 cost=-2.246
solution=[1, 0, 1, 0, 1] probability=0.026 cost=-2.246
solution=[0, 1, 1, 1, 0] probability=0.046 cost=-2.246
solution=[0, 1, 0, 1, 0] probability=0.017 cost=-2.146
solution=[1, 1, 0, 0, 1] probability=0.000 cost=-1.781
solution=[1, 1, 1, 0, 0] probability=0.001 cost=-1.747
solution=[0, 0, 1, 1, 1] probability=0.000 cost=-1.747
solution=[0, 1, 0, 0, 1] probability=0.000 cost=-1.681
solution=[0, 0, 1, 0, 1] probability=0.000 cost=-1.647
solution=[1, 0, 0, 0, 1] probability=0.006 cost=-1.198
solution=[1, 1, 0, 0, 0] probability=0.004 cost=-1.182
solution=[0, 0, 0, 1, 1] probability=0.003 cost=-1.164
solution=[0, 1, 0, 0, 0] probability=0.002 cost=-1.082
solution=[0, 0, 0, 1, 0] probability=0.002 cost=-1.064
solution=[1, 0, 0, 0, 0] probability=0.001 cost=-0.599
solution=[0, 0, 0, 0, 1] probability=0.001 cost=-0.599
for idx in range(32):
bits = list(int(bit) for bit in bin(idx)[2:])
bits = [0] * (5 - len(bits)) + bits
print(f"{bits=}, {hamiltonian(bits)=}")
bits=[0, 0, 0, 0, 0], hamiltonian(bits)=-8.74999999999626e-5
bits=[0, 0, 0, 0, 1], hamiltonian(bits)=0.598762500000000
bits=[0, 0, 0, 1, 0], hamiltonian(bits)=1.06396250000000
bits=[0, 0, 0, 1, 1], hamiltonian(bits)=1.16396250000000
bits=[0, 0, 1, 0, 0], hamiltonian(bits)=1.04796250000000
bits=[0, 0, 1, 0, 1], hamiltonian(bits)=1.64681250000000
bits=[0, 0, 1, 1, 0], hamiltonian(bits)=1.64681250000000
bits=[0, 0, 1, 1, 1], hamiltonian(bits)=1.74681250000000
bits=[0, 1, 0, 0, 0], hamiltonian(bits)=1.08171250000000
bits=[0, 1, 0, 0, 1], hamiltonian(bits)=1.68056250000000
bits=[0, 1, 0, 1, 0], hamiltonian(bits)=2.14576250000000
bits=[0, 1, 0, 1, 1], hamiltonian(bits)=2.24576250000000
bits=[0, 1, 1, 0, 0], hamiltonian(bits)=1.64691250000000
bits=[0, 1, 1, 0, 1], hamiltonian(bits)=2.24576250000000
bits=[0, 1, 1, 1, 0], hamiltonian(bits)=2.24576250000000
bits=[0, 1, 1, 1, 1], hamiltonian(bits)=2.34576250000000
bits=[1, 0, 0, 0, 0], hamiltonian(bits)=0.598862500000000
bits=[1, 0, 0, 0, 1], hamiltonian(bits)=1.19771250000000
bits=[1, 0, 0, 1, 0], hamiltonian(bits)=1.66291250000000
bits=[1, 0, 0, 1, 1], hamiltonian(bits)=1.76291250000000
bits=[1, 0, 1, 0, 0], hamiltonian(bits)=1.64691250000000
bits=[1, 0, 1, 0, 1], hamiltonian(bits)=2.24576250000000
bits=[1, 0, 1, 1, 0], hamiltonian(bits)=2.24576250000000
bits=[1, 0, 1, 1, 1], hamiltonian(bits)=2.34576250000000
bits=[1, 1, 0, 0, 0], hamiltonian(bits)=1.18171250000000
bits=[1, 1, 0, 0, 1], hamiltonian(bits)=1.78056250000000
bits=[1, 1, 0, 1, 0], hamiltonian(bits)=2.24576250000000
bits=[1, 1, 0, 1, 1], hamiltonian(bits)=2.34576250000000
bits=[1, 1, 1, 0, 0], hamiltonian(bits)=1.74691250000000
bits=[1, 1, 1, 0, 1], hamiltonian(bits)=2.34576250000000
bits=[1, 1, 1, 1, 0], hamiltonian(bits)=2.34576250000000
bits=[1, 1, 1, 1, 1], hamiltonian(bits)=2.44576250000000
Adaptive QAOA
The algorithm, based on the paper An adaptive quantum approximate optimization algorithm for solving combinatorial problems on a quantum computer, modifies QAOA by using different mixer layers, instead of the original \(H_M=\sum_i{X_i}\)
The algorithm defines a pool of potential mixer layers, that are simple to implement, and can match the problem better. The motiviation to the algorithm is rooted in t STA (shortcut to adiabaticity), with the hope of achieving better convergence than the "vanilla" QAOA.
The algorithm proceeds incrementally:
-
initially a single mixer layer is used (the original \(H_M\)) and the parameters are optimized
-
all the potential mixer layers, \(A_j\), are tested as candidates. The criterion is the resulting gradient of the commutator of a potential mixer layer with the cost Hamiltonian, applied to the current circuit:
-
the mixer layer with the largest gradient is selected, the circuit grows by one layer, and the process continues (optimizing parameters and checking gradients)
-
the process terminates when the scaled norm of the gradient vector drops below a threshold
Utilities
The following functions define some convenience utilities for computing the commutation of Pauli strings
from functools import reduce
from operator import add, mul
# the following utilites are used to compute an expectation value of the form:
# <psi | [A,H] | psi>
# where psi is the state (ansatz), A and H are a mixer and cost Hamiltonians, respectively
# defined as pauli strings (SparsePauliOp)
# multiplication table of two Pauli matrices
# weight (imaginary), pauli_c = pauli_a * pauli_b
pauli_mult_table: list[list[Tuple[int, int]]] = [
[(+0, Pauli.I), (+0, Pauli.X), (+0, Pauli.Y), (+0, Pauli.Z)],
[(+0, Pauli.X), (+0, Pauli.I), (+1, Pauli.Z), (-1, Pauli.Y)],
[(+0, Pauli.Y), (-1, Pauli.Z), (+0, Pauli.I), (+1, Pauli.X)],
[(+0, Pauli.Z), (+1, Pauli.Y), (-1, Pauli.X), (+0, Pauli.I)],
]
def sorted_pauli_term(term: SparsePauliTerm) -> SparsePauliTerm:
"""
sort pauli terms according to the qubit's index, e.g.,
Pauli.X(2)*Pauli.Z(7)*Pauli.X(4) ==> Pauli.X(2)*Pauli.X(4)*Pauli.Z(7)
"""
sorted_paulis = sorted(term.paulis, key=lambda p: p.index)
return SparsePauliTerm(sorted_paulis, term.coefficient)
def commutator(ha: SparsePauliOp, hb: SparsePauliOp) -> SparsePauliOp:
"""
Compute the commutator [ha, hb] = ha*hb - hb*ha
where ha and hb are SparsePauliOp objects.
Returns a SparsePauliOp representing the commutator.
"""
n = max(ha.num_qubits, hb.num_qubits)
commutation = SparsePauliOp([], n)
for sp_term_a in ha.terms:
for sp_term_b in hb.terms:
parity = 1
coefficient = 1.0
msp = {p.index: p.pauli for p in sp_term_a.paulis}
for p in sp_term_b.paulis:
pauli_a = msp.get(p.index, Pauli.I)
pauli_b = p.pauli
weight, pauli = pauli_mult_table[pauli_a][pauli_b]
if weight != 0:
parity = -parity
coefficient *= weight * 1j
msp[p.index] = pauli
# reconstruct pauli_string
if parity != 1:
# consider filtering identity terms, making sure the term is not empty
pauli_term = (reduce(mul, (p(idx) for idx, p in msp.items()))).terms[0]
pauli_term.coefficient = (
sp_term_a.coefficient * sp_term_b.coefficient * coefficient * 2
)
commutation.terms.append(pauli_term)
return commutation
def normalize_pauli_term(spt: SparsePauliTerm, num_qubits=-1) -> SparsePauliTerm:
"""
remove redundant Pauli.I operators from a Pauli string
making "normalized" strings comparable
if num_qubits is set, an optional Pauli.I is added to ensure the length
"""
if not spt.paulis:
return spt
npt = sorted_pauli_term(spt)
paulis = []
max_index = max_identity_index = -1
if num_qubits > 0:
max_identity_index = num_qubits - 1
for ip in npt.paulis:
if ip.pauli != Pauli.I:
paulis.append(ip)
max_index = max(max_index, int(ip.index))
else:
max_identity_index = max(max_identity_index, int(ip.index))
if max_identity_index > max_index:
paulis.append(IndexedPauli(Pauli.I, max_identity_index))
npt.paulis = paulis
return npt
def collect_pauli_terms(spo: SparsePauliOp) -> SparsePauliOp:
"""
collect the coefficient of identical Pauli strings
for example: 1.5*"IXZI"-0.3*"IXXZ"+0.4*"IXZI", would result, in:
1.9*"IXZI"-0.3*"IXXZ"
The function correctly ignores "I" when comparing strings,
and sets the correct `num_qubits`
terms with abs(coefficient)<TOLERANCE are dropped
"""
TOLERANCE: Final[float] = 1e-10
pauliterms = {}
for term in spo.terms:
npt = normalize_pauli_term(term, spo.num_qubits)
key = tuple((ip.pauli, int(ip.index)) for ip in npt.paulis)
pauliterms[key] = pauliterms.get(key, 0) + term.coefficient
def single_qubit_op(pair: tuple[int, int]) -> SparsePauliOp:
p_int, idx = pair
term = SparsePauliTerm([IndexedPauli(Pauli(p_int), idx)], 1.0)
return SparsePauliOp([term], num_qubits=idx + 1)
paulistrings = []
for key, coeff in pauliterms.items():
if np.abs(coeff) < TOLERANCE:
continue
key_op = reduce(mul, (single_qubit_op(pair) for pair in key))
paulistrings.append(coeff * key_op)
if not paulistrings:
return SparsePauliOp([], spo.num_qubits)
# Sum all strings
return reduce(add, paulistrings)
The Mixer Pool
The pool includes the default sum-of-X layer, as well as a sum-of-Y layer, followed by several single qubit layers with X and Y Paulis, and some two-qubit gates that add entanglement at the cost of a slightly more complicated layer.
Several heuristics are suggested for building mixer pools based on the problem definition.
A larger pool has a potential to find more efficient circuits, at the cost of computing many mixer gradients at each iteration
# build mixer pool
mixer_pool: list[SparsePauliOp] = [
# default mixer
0.2 * (Pauli.X(0) + Pauli.X(1) + Pauli.X(2) + Pauli.X(3) + Pauli.X(4)),
# Y mixer
0.2 * (Pauli.Y(0) + Pauli.Y(1) + Pauli.Y(2) + Pauli.Y(3) + Pauli.Y(4)),
# single qubit mixers
1.0 * Pauli.X(0),
1.0 * Pauli.X(1),
1.0 * Pauli.X(2),
1.0 * Pauli.X(3),
1.0 * Pauli.X(4),
1.0 * Pauli.Y(0),
1.0 * Pauli.Y(1),
1.0 * Pauli.Y(2),
1.0 * Pauli.Y(3),
1.0 * Pauli.Y(4),
# two qubit mixers
1.0 * Pauli.X(0) * Pauli.X(1),
1.0 * Pauli.X(0) * Pauli.X(2),
1.0 * Pauli.X(0) * Pauli.X(3),
1.0 * Pauli.X(0) * Pauli.X(4),
1.0 * Pauli.X(1) * Pauli.X(2),
1.0 * Pauli.X(1) * Pauli.X(3),
1.0 * Pauli.X(1) * Pauli.X(4),
1.0 * Pauli.X(2) * Pauli.X(3),
1.0 * Pauli.X(2) * Pauli.X(4),
1.0 * Pauli.X(3) * Pauli.X(4),
1.0 * Pauli.Y(0) * Pauli.Y(1),
1.0 * Pauli.Y(0) * Pauli.Y(2),
1.0 * Pauli.Y(0) * Pauli.Y(3),
1.0 * Pauli.Y(0) * Pauli.Y(4),
1.0 * Pauli.Y(1) * Pauli.Y(2),
1.0 * Pauli.Y(1) * Pauli.Y(3),
1.0 * Pauli.Y(1) * Pauli.Y(4),
1.0 * Pauli.Y(2) * Pauli.Y(3),
1.0 * Pauli.Y(2) * Pauli.Y(4),
1.0 * Pauli.Y(3) * Pauli.Y(4),
]
The gradient of a mixer is computed by taking the circuit, \(e^{-i \gamma_0 H_C}\left|\psi^{\left(k-1\right)}\right\rangle\), provided by the es execution session and the params, and measuring the commutation of the mixer with the Hamiltonian
def grad_mixer(
mixer: SparsePauliOp,
hamiltonian: SparsePauliOp,
es: ExecutionSession,
params: list[float],
) -> float:
mix_h_comm = commutator(mixer, hamiltonian)
return abs(es.estimate(mix_h_comm, {"params": params}).value)
Classical Optimization - "Adaptive" QAOA
The implementation of the Adaptive QAOA uses the same hybrid quantum-classical structure to optimize the ansatz parameters (\(\vec{\beta},\vec{\gamma}\)) The differences are:
-
The
ansatz mixerslist is incrementally populated with mixer layers, and used in the ansatz -
Following each convergence, the gradients of all mixers is computed, and either a new mixer is added, or the adaptive process concludes
QMod tip
Since the mixer is no longer a sum of single bit Pauli strings (the default mixer can be written as: \(XII\ldots I+IXI\ldots I+IIX\ldots I+III\ldots X\)), the exponent is not a trivial Pauli rotation (applying \(R_X\left(\beta\right)\) to each qubit) and the exponentiation \(e^{-i \beta A_j}\) has to be computed.
An efficient and simple construct is the suzuki_trotter function that exponentiates a SparsePauliOp (a weighted sum of Pauli strings) with a given coefficient.
The adaptive_mixer_layer function uses this construct: suzuki_trotter(ansatz_mixers[mixer_idx], beta, 1, 1, qba), where the third and fourth arguments (1,1) specify the order and number of repetitions of the trotterization, which can be safely set to \(1\) for simple Pauli strings.
Another variant is the multi_suzuki_trotter function that exponentiates a sum of Hamiltonians: \(e^{-i\left(H_1t_1+H_2t_2+\ldots+H_nt_n\right)}\)
MAX_ITERATIONS = 60
last_params = []
ansatz_mixers = [mixer_pool[0]] # start with default mixer
p = len(
ansatz_mixers
) # number of layers (=1), each layer is a pair of mixer and cost Hamiltonians
tol: Final[float] = 0.035
while True: # loop until gradient norm exceeds tolerance (break-ing out of the loop)
# adiabatic inspired initialization of beta and gamma
initial_params = np.concatenate((np.linspace(0, 1, p), np.linspace(1, 0, p)))
cost_trace = []
params_history = []
@qfunc
def adaptive_mixer_layer(mixer_idx: int, beta: CReal, qba: QArray):
suzuki_trotter(ansatz_mixers[mixer_idx], beta, 1, 1, qba)
@qfunc
def qaoa_adaptive_ansatz(
gammas: CArray[CReal],
betas: CArray[CReal],
qba: QArray,
):
n = gammas.len
assert n == betas.len, "Number of gamma and beta parameters must be equal"
for i in range(n):
cost_layer(gammas[i], qba)
adaptive_mixer_layer(i, betas[i], qba)
@qfunc
def main(
params: CArray[
CReal, p * 2 # type: ignore
], # Execution parameters (first half: gammas, second half: betas), used later by the sample method
v: Output[QArray[QBit, NUM_QUBITS]], # type: ignore
):
allocate(v)
hadamard_transform(v)
gammas = params[0:p]
betas = params[p : p * 2]
qaoa_adaptive_ansatz(gammas, betas, v)
qprog = synthesize(main)
with ExecutionSession(qprog) as es:
with tqdm(
total=MAX_ITERATIONS,
desc=f"Optimization Progress for {p} layered circuit",
leave=True,
) as pbar:
def progress_bar(xk: np.ndarray) -> None:
pbar.update(1)
optimization_results = scipy.optimize.minimize(
fun=objective_func,
x0=initial_params,
method="COBYLA",
options={"maxiter": MAX_ITERATIONS},
callback=progress_bar,
)
print(
f"Completed optimization for {p} layered circuit. objective value: {optimization_results.fun}"
)
params = optimization_results.x.tolist()
last_params = params[:] # copy for final execution
# compute gradients of mixer pool elements
gamma_0 = 0.01 # (or any value below 0.1)
@qfunc
def main(
params: CArray[
CReal, p * 2 # type: ignore
], # Execution parameters (first half: gammas, second half: betas), used later by the sample method
v: Output[QArray[QBit, NUM_QUBITS]], # type: ignore
):
allocate(v)
hadamard_transform(v)
gammas = params[0:p]
betas = params[p : p * 2]
qaoa_ansatz(gammas, betas, v)
cost_layer(gamma_0, v)
print("Computing mixer gradients...")
qprog = synthesize(main)
with ExecutionSession(qprog) as es:
gradients = np.abs(
np.array([grad_mixer(mp, h, es, params) for mp in mixer_pool])
)
print(f"{gradients=}")
scaled_gradient_norm = np.linalg.norm(gradients) / len(gradients)
print(f"{scaled_gradient_norm=}")
if scaled_gradient_norm < tol:
break
g_idx = np.argmax(gradients)
print(f"Selected mixer index: {g_idx}")
ansatz_mixers.append(mixer_pool[g_idx])
p += 1
Optimization Progress for 1 layered circuit: 38%|███▊ | 23/60 [00:40<01:04, 1.76s/it]
Completed optimization for 1 layered circuit. objective value: -2.3142875000000003
Computing mixer gradients...
gradients=array([0.19706787, 0.35410145, 0.11036743, 0.22677036, 0.28319973,
0.21530298, 0.10932327, 0.36023691, 0.3174415 , 0.40178333,
0.36424009, 0.37782158, 0.51123235, 0.19628999, 0.20254084,
0.19478081, 0.66466448, 0.14280686, 0.16110129, 0.60348674,
0.2108708 , 0.52317202, 0.47636858, 0.15469712, 0.21450581,
0.17245444, 0.70727803, 0.21792666, 0.21902122, 0.6530259 ,
0.13242019, 0.49805725])
scaled_gradient_norm=np.float64(0.06402385713931617)
Selected mixer index: 26
Optimization Progress for 2 layered circuit: 53%|█████▎ | 32/60 [01:04<00:56, 2.02s/it]
Completed optimization for 2 layered circuit. objective value: -2.3104403320312503
Computing mixer gradients...
gradients=array([0.39718745, 0.02052739, 0.34920688, 0.41793179, 0.45979937,
0.39069226, 0.34398203, 0.1854479 , 0.06655791, 0.10658247,
0.05570955, 0.20301707, 0.42084478, 0.21516748, 0.15866699,
0.31427495, 0.10758645, 0.10058174, 0.1250322 , 0.10685349,
0.25143997, 0.45302239, 0.32623477, 0.06320996, 0.0389366 ,
0.22463257, 0.05764646, 0.08358364, 0.02340293, 0.08439844,
0.04803933, 0.31225317])
scaled_gradient_norm=np.float64(0.04393272928185077)
Selected mixer index: 4
Optimization Progress for 3 layered circuit: 43%|████▎ | 26/60 [01:03<01:23, 2.46s/it]
Completed optimization for 3 layered circuit. objective value: -2.1380082519531247
Computing mixer gradients...
gradients=array([0.0567441 , 0.09107907, 0.02942632, 0.08424099, 0.04921797,
0.0808364 , 0.0265468 , 0.09976584, 0.09130286, 0.05714497,
0.08487715, 0.11092622, 0.17760957, 0.04775876, 0.0665675 ,
0.03733398, 0.12239792, 0.0360907 , 0.06946804, 0.10205117,
0.04792678, 0.16492461, 0.18335371, 0.06456736, 0.10265059,
0.08526997, 0.18134656, 0.0875554 , 0.10723145, 0.16634077,
0.06946472, 0.1752532 ])
scaled_gradient_norm=np.float64(0.018268035682132592)
p
3
@qfunc
def main(
params: CArray[
CReal, p * 2 # type: ignore
], # Execution parameters (first half: gammas, second half: betas), used later by the sample method
v: Output[QArray[QBit, NUM_QUBITS]], # type: ignore
):
allocate(v)
hadamard_transform(v)
gammas = params[0:p]
betas = params[p : p * 2]
qaoa_adaptive_ansatz(gammas, betas, v)
qprog = synthesize(main)
show(qprog)
with ExecutionSession(qprog) as es:
# Sample the circuit using the optimized parameters
result = es.sample({"params": last_params})
Plotting the convergence graph:
plt.plot(cost_trace)
plt.xlabel("Iterations")
plt.ylabel("Cost")
plt.title("Cost convergence")
plt.show()
result.dataframe
| v | count | probability | bitstring | |
|---|---|---|---|---|
| 0 | [1, 0, 1, 1, 1] | 218 | 0.106445 | 11101 |
| 1 | [1, 0, 1, 1, 0] | 208 | 0.101562 | 01101 |
| 2 | [1, 1, 1, 1, 1] | 164 | 0.080078 | 11111 |
| 3 | [0, 1, 1, 1, 1] | 163 | 0.079590 | 11110 |
| 4 | [0, 1, 1, 1, 0] | 144 | 0.070312 | 01110 |
| 5 | [1, 1, 1, 1, 0] | 129 | 0.062988 | 01111 |
| 6 | [0, 1, 1, 0, 1] | 126 | 0.061523 | 10110 |
| 7 | [1, 0, 1, 0, 1] | 116 | 0.056641 | 10101 |
| 8 | [1, 1, 1, 0, 1] | 82 | 0.040039 | 10111 |
| 9 | [1, 1, 0, 1, 1] | 73 | 0.035645 | 11011 |
| 10 | [1, 0, 0, 0, 1] | 64 | 0.031250 | 10001 |
| 11 | [0, 1, 0, 1, 1] | 59 | 0.028809 | 11010 |
| 12 | [1, 1, 0, 1, 0] | 56 | 0.027344 | 01011 |
| 13 | [0, 0, 1, 1, 0] | 53 | 0.025879 | 01100 |
| 14 | [1, 1, 0, 0, 1] | 46 | 0.022461 | 10011 |
| 15 | [0, 0, 1, 1, 1] | 46 | 0.022461 | 11100 |
| 16 | [0, 1, 0, 1, 0] | 42 | 0.020508 | 01010 |
| 17 | [0, 0, 1, 0, 1] | 41 | 0.020020 | 10100 |
| 18 | [1, 0, 0, 1, 1] | 39 | 0.019043 | 11001 |
| 19 | [1, 0, 1, 0, 0] | 37 | 0.018066 | 00101 |
| 20 | [0, 1, 1, 0, 0] | 24 | 0.011719 | 00110 |
| 21 | [0, 1, 0, 0, 1] | 23 | 0.011230 | 10010 |
| 22 | [1, 1, 0, 0, 0] | 18 | 0.008789 | 00011 |
| 23 | [1, 0, 0, 1, 0] | 18 | 0.008789 | 01001 |
| 24 | [1, 0, 0, 0, 0] | 16 | 0.007812 | 00001 |
| 25 | [0, 1, 0, 0, 0] | 11 | 0.005371 | 00010 |
| 26 | [1, 1, 1, 0, 0] | 10 | 0.004883 | 00111 |
| 27 | [0, 0, 1, 0, 0] | 9 | 0.004395 | 00100 |
| 28 | [0, 0, 0, 0, 1] | 8 | 0.003906 | 10000 |
| 29 | [0, 0, 0, 1, 0] | 5 | 0.002441 | 01000 |
