The code here can be integrated as part of a larger CFD solver, e.g., as in qc-cfd repository. In particular, instead of calling a classical solver, e.g., x = sparse.linalg.spsolve(mat_raw_scr, b_raw), one can call the quantum solver qsvt_solver(mat_raw_scr, b_raw,...).

We implemented two versions for block-encoding, one based on Pauli decomposition of the matrix, and another one based on decomposing the matrix to a finite set of diagonals.

!pip install -qq -U "classiq[qsp]"
!pip install -qq "classiq[chemistry]"

import time

import matplotlib.pyplot as plt
import numpy as np
from banded_be import get_banded_diags_be
from cheb_utils import *
from classical_functions_be import get_projected_state_vector, get_svd_range
from pauli_be import get_pauli_be
from scipy import sparse

from classiq import *
from classiq.applications.qsp import qsvt_phases

np.random.seed(53)

PAULI_TRIM_REL_TOL = 0.1

The solvers were developed in the framework of exploring their performance in hybrid CFD schemes. For simplicity, it is assumed that all the properties of the matrices are known explicitly. In particular, we calculate its sigular values for identyfing the range in which we apply the inversion polynomial.

def qsvt_solver(
    mat_raw_scr,
    b_raw,
    poly_degree,
    be_method="banded",
    cheb_approx_type="numpy_interpolated",
    preferences=Preferences(),
    constraints=Constraints(),
):

    SCALE = 0.5
    b_norm = np.linalg.norm(b_raw)  # b normalization
    b_normalized = b_raw / b_norm

    # Define block encoding
    if be_method == "pauli":
        data_size, block_size, be_scaling_factor, be_qfunc = get_pauli_be(
            mat_raw_scr, PAULI_TRIM_REL_TOL
        )
        print(
            f"Pauli block encoding with block size {block_size} and scaling factor {be_scaling_factor}"
        )

    elif be_method == "banded":
        data_size, block_size, be_scaling_factor, be_qfunc = get_banded_diags_be(
            mat_raw_scr
        )
        print(
            f"Banded diagonal block encoding with block size {block_size} and scaling factor {be_scaling_factor}"
        )

    class BlockEncodedState(QStruct):
        data: QNum[data_size]
        block: QNum[block_size]

    # Get SVD range
    w_min, w_max = get_svd_range(mat_raw_scr / be_scaling_factor)
    # Get Chebyshev polynomial and the corresponding QSVT angles
    pcoefs, poly_scale = get_cheb_coeff(
        w_min, poly_degree, w_max, scale=SCALE, method=cheb_approx_type, epsilon=0.01
    )
    inv_phases = qsvt_phases(pcoefs, tol=0.001)

    # Define QSVT projector
    @qfunc
    def projector(be: BlockEncodedState, res: QBit):
        res ^= be.block == 0

    @qfunc
    def main(
        qsvt_aux: Output[QBit],
        data: Output[QNum[data_size]],
        block: Output[QNum[block_size]],
    ):
        allocate(qsvt_aux)
        allocate(block)
        prepare_amplitudes(b_normalized.tolist(), 0, data)

        be_state = BlockEncodedState()

        within_apply(
            lambda: bind([data, block], be_state),
            lambda: qsvt_inversion(
                inv_phases,
                lambda aux: projector(be_state, aux),
                lambda: be_qfunc(be_state.block, be_state.data),
                qsvt_aux,
            ),
        )

    start_time_syn = time.time()
    qprog = synthesize(main, preferences=preferences, constraints=constraints)
    print("time to syn:", time.time() - start_time_syn)

    execution_preferences = ExecutionPreferences(
        num_shots=1,
        backend_preferences=ClassiqBackendPreferences(
            backend_name=ClassiqSimulatorBackendNames.SIMULATOR_STATEVECTOR
        ),
    )

    start_time_exe = time.time()
    with ExecutionSession(qprog, execution_preferences) as es:
        es.set_measured_state_filter("block", lambda state: state == 0.0)
        es.set_measured_state_filter("qsvt_aux", lambda state: state == 0.0)
        results = es.sample()
    print("time to exe:", time.time() - start_time_exe)

    resulting_state = get_projected_state_vector(results, "data")

    normalization_factor = (be_scaling_factor * poly_scale) / b_norm

    return resulting_state / normalization_factor, qprog

# For faster results use the commented out preferences


prefs = Preferences()

# prefs = Preferences(
#     transpilation_option="none", optimization_level=0, debug_mode=False, qasm3=True
# )
poly_degree = 101

We run two examples, for the two different block encoding, but using the same polynomial degree.

import pathlib

path = (
    pathlib.Path(__file__).parent.resolve()
    if "__file__" in locals()
    else pathlib.Path(".")
)

mat_name = "nozzle_small_scr"
matfile = "matrices/" + mat_name + ".npz"
mat_raw_scr = sparse.load_npz(path / matfile)

b_raw = np.load(path / "matrices/b_nozzle_small.npy")
raw_mat_qubits = len(b_raw).bit_length() - 1  # matrix raw size

print(f"Raw matrix size: {raw_mat_qubits} qubits.")

Raw matrix size: 3 qubits.

qsol_banded, qprog_banded = qsvt_solver(
    mat_raw_scr,
    b_raw,
    poly_degree,
    be_method="banded",
    preferences=prefs,
    constraints=Constraints(optimization_parameter="width"),
)
show(qprog_banded)

Banded diagonal block encoding with block size 3 and scaling factor 3.8927056451476174
For error 0.01, and given kappa, the needed polynomial degree is: 591
Performing numpy Chebyshev interpolation, with degree 101
time to syn: 115.33122491836548
time to exe: 11.221765995025635
Quantum program link: https://platform.classiq.io/circuit/37T1LWNPeODAI0UIjCyoWzInZE3

qsol_pauli, qprog_pauli = qsvt_solver(
    mat_raw_scr,
    b_raw,
    poly_degree,
    be_method="pauli",
    preferences=prefs,
    constraints=Constraints(optimization_parameter="width"),
)
show(qprog_pauli)

number of Paulis before/after trimming 24/20
Pauli block encoding with block size 5 and scaling factor 5.557119918538639
For error 0.01, and given kappa, the needed polynomial degree is: 885
Performing numpy Chebyshev interpolation, with degree 101
time to syn: 169.5105390548706
time to exe: 17.674686193466187
Quantum program link: https://platform.classiq.io/circuit/37T1isgdOJ3sQH7PEr0IXXPrFEx

mat_raw = mat_raw_scr.toarray()
expected_sol = np.linalg.solve(mat_raw, b_raw)
plt.plot(expected_sol, "o", label="Classical")
ext_idx = np.argmax(np.abs(expected_sol))
correct_sign = np.sign(expected_sol[ext_idx]) / np.sign(qsol_pauli[ext_idx])
qsol_pauli *= correct_sign
plt.plot(qsol_pauli, ".", label=f"QSVT-inv; Pauli BE; degree {poly_degree}")

correct_sign = np.sign(expected_sol[ext_idx]) / np.sign(qsol_banded[ext_idx])
qsol_banded *= correct_sign
plt.plot(qsol_banded, ".", label=f"QSVT-inv; Banded BE; degree {poly_degree}")
plt.legend()

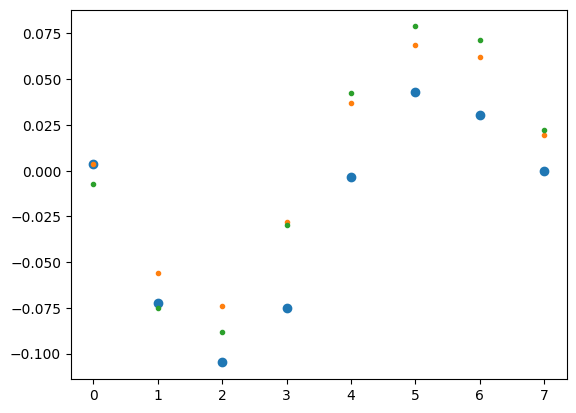

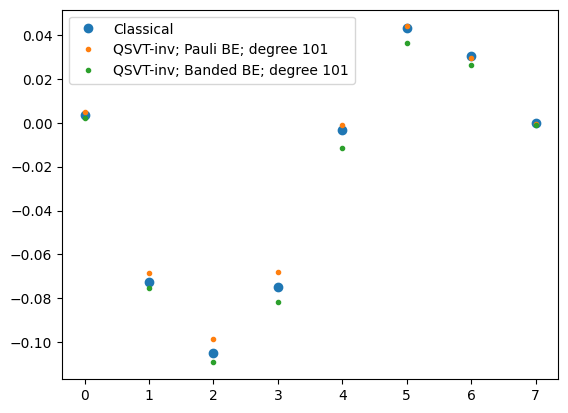

<matplotlib.legend.Legend at 0x12d5f0c10>

png

We can see that the results is better for the banded diagonal block-encoding. This is because it has a better scaling factor, and thus a better approximation for a given polynomial degree.

assert np.linalg.norm(qsol_banded - expected_sol) < 0.2
assert np.linalg.norm(qsol_pauli - expected_sol) < 0.2
