Quantum Oracles Workshop
Welcome to the Classiq Workshop for Quantum Oracles!
In this notebook, you will cover hands-on examples and exercises of the following topics:
-
Defining Quantum Oracles using arithmetics in Classiq
-
Phase Kickback and Phase encoding
-
A first example: The Deutsch-Jozsa Algorithm
-
Unstructured search: Grover's Algorithm
For each exercise, complete the code in the #TODO sections correctly. You can find the complete solutions at the end of this notebook.
Additional resources you should use:
-
The Classiq GitHub repository
-
The community Slack of Classiq - you can ask any question you have over here
Good luck!
Quantum Arithmetics: The Oracle
In quantum computing, an oracle is a method used to encode information about a function without revealing its explicit form. An oracle is also known as a black box and plays a crucial role in many quantum algorithms, such as the Deutsch-Jozsa algorithm and Grover's search algorithm. The oracle can be thought of as a tool that, when given a specific input, produces an output according to an unknown function \(f(x)\).

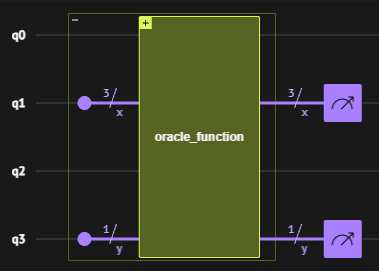

How is it possible to construct and design an oracle for a quantum algorithm? In general, an oracle is represented by a unitary operator \(U_f\). This operator acts on a quantum state to evaluate a binary function \(f(x)\). For example, in the context of Grover's and Deutsch-Jozsa algorithm, the oracle \(U_f\) takes the action \(U_f|x\rangle |y\rangle = |x\rangle |y\oplus f(x)\rangle\). The \(\oplus\) represents the XOR operation:
-
\(x \oplus y\) equals to \(0\) if \(x=y\);
-
\(x \oplus y\) equals to \(1\) if \(x\neq y\).
The quantum oracles are developed in order to entangle the \(x\) and \(y\) qubits according to a set of rules in a particular way we want to. Classiq provides a distinctive and efficient approach to working with oracles, which are defined through arithmetic expressions. Starting with a simple example, we create an oracle for a binary function \(f(x,y)\) that follows the arithmetic expression:
Quantum oracles and arithmetics: A simple example
with \(x∈\{0,1\}\) and \(y\in\{0,1,2,3\}\). We first define a quantum function that implements the arithmetic operation described above:
from classiq import *
@qfunc
def oracle(x: QNum, y: QNum, z: QBit):
z ^= 2 * x + y == 4
-
The
^=expression represents an in-place XOR operation between thezqubit on the left-hand side and the right-hand side expression, assigning the result to the qubitz. A short explanation of this concept can be found here. -
Therefore,
z ^= 2*x + y == 4means that we are doing an XOR operation that follows the rule2*x + y == 4, assigning the result toz(in-place).
Now, let's see how this looks when evaluating this oracle over all possible values of x and y:
@qfunc
def main(x: Output[QNum], y: Output[QNum], z: Output[QBit]):
# Allocating qubits for the x, y, and z variables
allocate(1, x)
allocate(2, y)
allocate(z)
hadamard_transform(x)
hadamard_transform(y)
# calling the oracle
oracle(x, y, z)
# Synthesizing your model and visualizing it
qprog_oracle = synthesize(main)
show(qprog_oracle)
Quantum program link: https://platform.classiq.io/circuit/36W8qce6Bvdm4BdlW5gIUNkm6kk
https://platform.classiq.io/circuit/36W8qce6Bvdm4BdlW5gIUNkm6kk?login=True&version=15
Quantum oracles and arithmetics: Phase Kickback
Every quantum algorithm can be decomposed into three key steps: 1) Encoding the data, 2) Manipulating the data, and 3) Extracting the result. In the current class, we are studying the first step, where the data is loaded into the quantum computer. For the second step, the phase kickback is a powerful technique in data manipulation, facilitating the extraction of desired results and allowing more freedom in data encoding techniques.
Phase kickback deals with kicking the result of a function to the phase of a quantum state so it can be smartly manipulated with constructive and destructive interferences.
The standard way to apply a classical, binary, function \(f: \{0, 1\}^n \to \{0, 1\}\) on quantum states is by using the oracle with digital encoding by performing:
The phase kickback takes the oracle \(O_f\) and performs the action
The circuit that applies the Phase Kickback to a quantum Oracle \(O\) is of the following form:
Exercise: Phase Kickback
Apply the phase Kickback to the oracle given in the first example and execute it using the statevector simulator.
# TODO Write your phase kickback primitive.
# TODO Try to write your code by first declaring an auxilliary qubit and making use of the `within-apply statement
# TODO And then try to use the more efficient method making use of the `control` and `phase` statements
from classiq.qmod.symbolic import pi
# TODO Write any functions you may need to implement the phase-kickback primitive
@qfunc
def main(x: Output[QNum], y: Output[QNum]):
# Allocating qubits for the x, y variables
allocate(1, x)
allocate(2, y)
# TODO: implement the phase-kickback procedure
qprog_phase_kickback = synthesize(main)
show(qprog_phase_kickback)
Quantum program link: https://platform.classiq.io/circuit/36W8r6tJJDeek4w5ODJMuoNzxUn
https://platform.classiq.io/circuit/36W8r6tJJDeek4w5ODJMuoNzxUn?login=True&version=15
# TODO use this code to execute your code on the statevector simulator and check that you received the correct answer
import numpy as np
backend_prefs = ClassiqBackendPreferences(
backend_name=ClassiqSimulatorBackendNames.SIMULATOR_STATEVECTOR
)
exec_prefs = ExecutionPreferences(num_shots=1, backend_preferences=backend_prefs)
with ExecutionSession(qprog_phase_kickback, execution_preferences=exec_prefs) as es:
res = es.sample()
# ---- Cleaning up results: keeping only (x,y), dropping ancillas ----
DATA_BITS = 3 # y (2 qubits) + x (1 qubit)
rows = []
for st in res.parsed_state_vector:
bstr = st.bitstring
if set(bstr[:-DATA_BITS]) == {"0"}: # ancilla must be |0⟩
y = int(bstr[-3:-1], 2)
x = int(bstr[-1], 2)
amp = st.amplitude
mag = abs(amp)
angle_pi = np.angle(amp) / np.pi # angle in units of π
note = " ← solution" if (2 * x + y == 4) else ""
rows.append((x, y, mag, angle_pi, note))
rows.sort(key=lambda r: (r[0], r[1]))
print("x y |amp| angle/π note")
print("----------------------------------")
for x, y, mag, ang, note in rows:
print(f"{x} {y} {mag:.3f} {ang:+.2f}π {note}")
x y |amp| angle/π note
----------------------------------
Quantum oracles and arithmetics: The Deutsch-Jozsa Algorithm

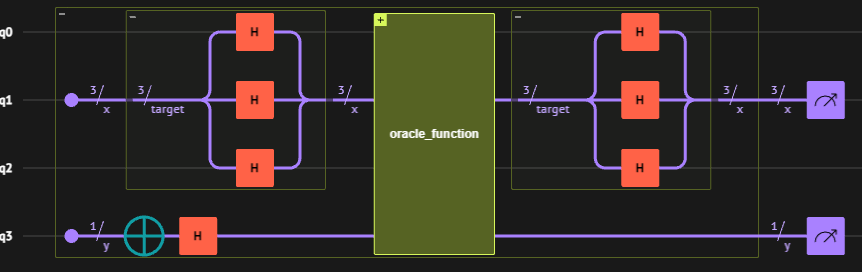

Deutch-Jozsa algorithm is a seminal quantum algorithm, well-known for its exponential speed-up over classical algorithms to identify if a binary function is either constant or balanced. Given a binary function \(f\), assumed to be either constant or balanced, the Deutsch-Jozsa algorithm requires only one evaluation to assert this, while a classical algorithm would require up to \(2^{n-1} +1\) evaluations of the oracle.
Deutsch-Jozsa Algorithm Exercise:
In this exercise, we will use the Deutsch-Jozsa algorithm to check if the following function is balanced.
How do we build the oracle for the function displayed in the table?
The function \(f(x)\) assumes its value as \(1\) only when the integer value of \(| x \rangle\) is even. This is equivalent to the condition that the LSB must be 0 to have a phase flip.
We can thus set the rule for the oracle of \(f(x)\): Everytime the integer value of the qubit \(| x \rangle\) is divisible by \(2\), \(f\) will output \(1\). In other words, the oracle for this function should flip the phases of the even integers. In this case we can cleverly construct such an oracle, but it is not always an easy task to build it.
Once you have found the arithmetic expression for the oracle, it is possible to construct this algorithm with only a few lines of code; the synthesis engine handles the hard work (and can optimize for circuit depth or width):
When implementing the Deutsch-Jozsa algorithm below, use the new phase and control statements elegant implementation method:
@qfunc
def main(x: Output[QNum]):
allocate(3, x)
# TODO: Employ the Deutsch-Jozsa algorithm, using the phase and control method (a within apply can and should be used for the Hadamard transforms)
qprog_deutsch_jozsa = synthesize(main)
show(qprog_deutsch_jozsa)
Quantum program link: https://platform.classiq.io/circuit/36W8rYSwSdnzCGT3ylg9xek8mYQ
https://platform.classiq.io/circuit/36W8rYSwSdnzCGT3ylg9xek8mYQ?login=True&version=15
# TODO: Refer to the Deutsch-Jozsa class notebook to help you write a classical post-processing part,
Quantum oracles and arithmetics: The Grover Algorithm

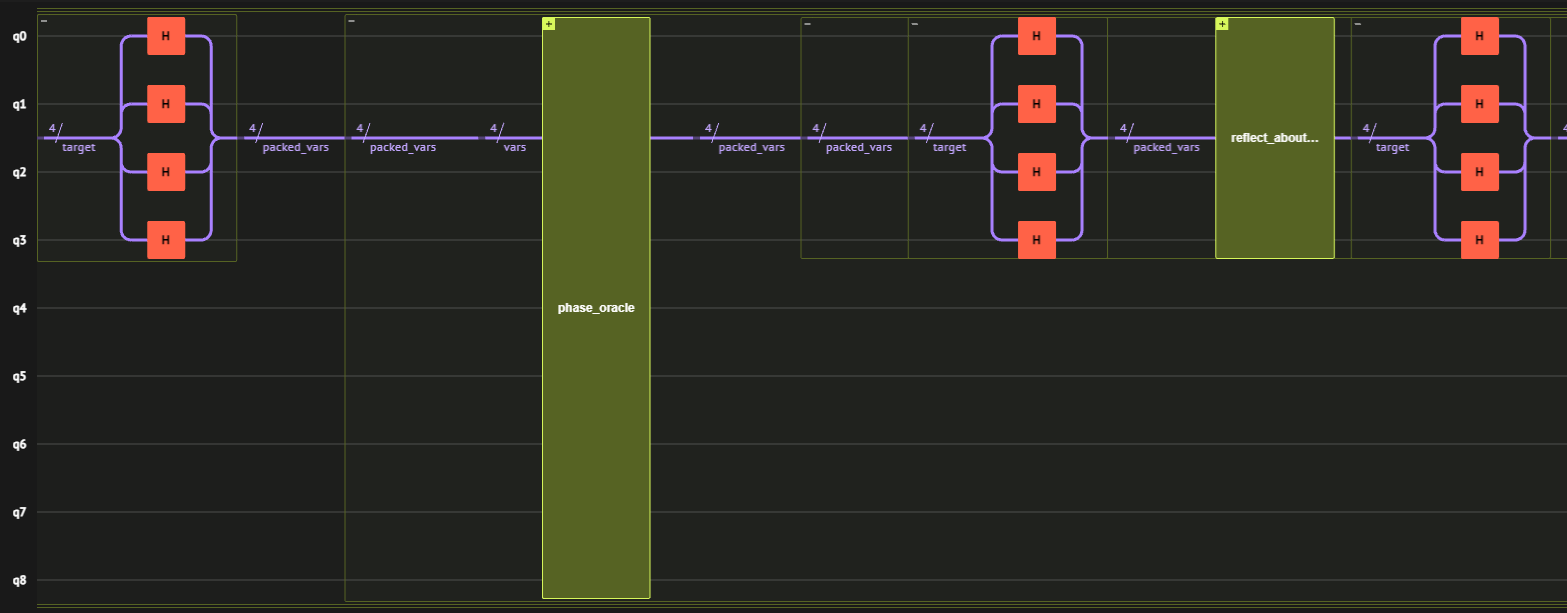

Grover's algorithm is a quantum search algorithm, well-known for its ability to search an unsorted database or solve the "unstructured search problem" quadratically faster than any classical counterpart. Given an unsorted list of \(N\) elements and a search condition, Grover's algorithm's task is to find the input that satisfies the condition. To achieve this, the algorithm uses an oracle associated to a function \(f(x)\), which evaluates to 1 if \(x\) is the desired element and 0 otherwise. Grover's algorithm performs about \(\sqrt N\) iterations, each one applying a Grover operator that flips the phase of the marked state and then amplifies its amplitude. Repeating this process gradually boosts the marked state’s amplitude until it becomes highly probable upon measurement. While a classical computer would require \(O(N)\) queries to search a database of \(N\) items, Grover's algorithm achieves this in \(O(\sqrt N)\) queries, demonstrating the advantage of quantum parallelism and the effects of quantum interference.
Grover's Algorithm Exercise:
In this exercise, we will use the Grover algorithm to solve the following equation:
For this exercise, begin by defining the oracle \({O}\). First, create a QStruct that contains the two QNum variables, x and y:
class Variables(QStruct):
x: QNum[2, False, 0]
y: QNum[2, False, 0]
@qperm
def quantum_oracle(vars: Const[Variables], z: QNum):
# TODO: Change this placeholder function to define the quantum oracle in terms of vars.x, vars.y, and z
z ^= 1
Next, incorporate the quantum oracle into the grover_search function that automatically implements the Grover operator iterations:
@qfunc
def main(vars: Output[Variables]):
allocate(vars.size, vars)
# TODO: Fill the `grover_search` function below with the phase kickback applied to the oracle you have built.
# You can do this by using the built-in function phase_oracle,
grover_search(
reps=5, # TODO: Change the number of repetitions to the correct optimal number
oracle=lambda vars: phase_oracle(
quantum_oracle, vars
), # Here we leverage the built-in phase_oracle, only having to specify the oracle while the framework takes care of the surrounding setup (you may change it)
packed_vars=vars,
)
# Printing the results to check that the algorithm
qprog_grover = synthesize(main)
show(qprog_grover)
res = execute(qprog_grover).result()
counts = res[0].value.parsed_counts
counts
Quantum program link: https://platform.classiq.io/circuit/36W8rvARvlLxoqOoo0d4nvnbnyD
https://platform.classiq.io/circuit/36W8rvARvlLxoqOoo0d4nvnbnyD?login=True&version=15
[{'vars': {'x': 3, 'y': 2}}: 159,
{'vars': {'x': 2, 'y': 2}}: 141,
{'vars': {'x': 0, 'y': 0}}: 140,
{'vars': {'x': 2, 'y': 1}}: 136,
{'vars': {'x': 0, 'y': 2}}: 135,
{'vars': {'x': 3, 'y': 1}}: 132,
{'vars': {'x': 1, 'y': 3}}: 130,
{'vars': {'x': 3, 'y': 0}}: 128,
{'vars': {'x': 0, 'y': 1}}: 126,
{'vars': {'x': 0, 'y': 3}}: 123,
{'vars': {'x': 2, 'y': 0}}: 121,
{'vars': {'x': 1, 'y': 0}}: 121,
{'vars': {'x': 1, 'y': 1}}: 119,
{'vars': {'x': 1, 'y': 2}}: 116,
{'vars': {'x': 3, 'y': 3}}: 116,
{'vars': {'x': 2, 'y': 3}}: 105]
Try to also write the Grover algorithm with the new phase and control method (not making use of the built in phase_oracle function)!
Solutions
Phase Kickback:
Elegant method (Phase and Control)
from classiq.qmod.symbolic import pi
@qfunc
def main(x: Output[QNum], y: Output[QNum]):
# Allocating qubits for the x, y, and z variables
allocate(1, x)
allocate(2, y)
# Performing Hadamard transform over all qubits
hadamard_transform(x)
hadamard_transform(y)
# Using control and phase together to efficiently flip the phases
control(2 * x + y == 4, lambda: phase(pi))
qprog_phase_kickback = synthesize(main)
show(qprog_phase_kickback)
Quantum program link: https://platform.classiq.io/circuit/36W8sVtISZDLFmmvGSNgzIaJHgC
https://platform.classiq.io/circuit/36W8sVtISZDLFmmvGSNgzIaJHgC?login=True&version=15
import numpy as np
backend_prefs = ClassiqBackendPreferences(
backend_name=ClassiqSimulatorBackendNames.SIMULATOR_STATEVECTOR
)
exec_prefs = ExecutionPreferences(num_shots=1, backend_preferences=backend_prefs)
with ExecutionSession(qprog_phase_kickback, execution_preferences=exec_prefs) as es:
res = es.sample()
# ---- Cleaning up results: keeping only (x,y), dropping ancillas ----
DATA_BITS = 3 # y (2 qubits) + x (1 qubit)
rows = []
for st in res.parsed_state_vector:
bstr = st.bitstring
if set(bstr[:-DATA_BITS]) == {"0"}: # ancilla must be |0⟩
y = int(bstr[-3:-1], 2)
x = int(bstr[-1], 2)
amp = st.amplitude
mag = abs(amp)
angle_pi = np.angle(amp) / np.pi # angle in units of π
note = " ← solution" if (2 * x + y == 4) else ""
rows.append((x, y, mag, angle_pi, note))
rows.sort(key=lambda r: (r[0], r[1]))
print("x y |amp| angle/π note")
print("----------------------------------")
for x, y, mag, ang, note in rows:
print(f"{x} {y} {mag:.3f} {ang:+.2f}π {note}")
x y |amp| angle/π note
----------------------------------
0 0 0.354 +0.12π
0 1 0.354 +0.12π
0 2 0.354 +0.12π
0 3 0.354 +0.12π
1 0 0.354 +0.12π
1 1 0.354 +0.12π
1 2 0.354 -0.88π ← solution
1 3 0.354 +0.12π
Deutsch-Jozsa (only new elegant method):
from classiq.qmod.symbolic import pi
@qfunc
def main(x: Output[QNum]):
allocate(3, x)
# Employing the Deutsch-Jozsa algorithm, using the oracle we built previouvsly.
within_apply(
lambda: hadamard_transform(x), lambda: control(x % 2 == 0, lambda: phase(pi))
)
qprog_deutsch_jozsa = synthesize(main)
show(qprog_deutsch_jozsa)
Quantum program link: https://platform.classiq.io/circuit/36W8tGMR2neVUPl3uke3oc0IcZf
https://platform.classiq.io/circuit/36W8tGMR2neVUPl3uke3oc0IcZf?login=True&version=15
# Outputting whether the function is constant or balanced:
def post_process_deutsch_jozsa(parsed_results):
if len(parsed_results) == 1:
if 0 not in parsed_results:
print("The function is balanced")
else:
print("The function is constant")
else:
print(
"cannot decide as more than one output was measured, the distribution is:",
parsed_results,
)
result = execute(qprog_deutsch_jozsa).result_value()
results_list = [sample.state["x"] for sample in result.parsed_counts]
post_process_deutsch_jozsa(results_list)
The function is balanced
Grover's Algorithm:
Regular Method:
class Variables(QStruct):
x: QNum[2, False, 0]
y: QNum[2, False, 0]
@qperm
def quantum_oracle(vars: Const[Variables], z: QNum):
z ^= vars.x - vars.y == 2
@qfunc
def main(vars: Output[Variables]):
allocate(vars.size, vars)
grover_search(
reps=2,
oracle=lambda vars: phase_oracle(quantum_oracle, vars),
packed_vars=vars,
)
qprog_grover = synthesize(main)
show(qprog_grover)
res = execute(qprog_grover).result()
counts = res[0].value.parsed_counts
counts
Quantum program link: https://platform.classiq.io/circuit/36W8u1HMOOLX47QslFlC2ZPREvc
https://platform.classiq.io/circuit/36W8u1HMOOLX47QslFlC2ZPREvc?login=True&version=15
[{'vars': {'x': 2, 'y': 0}}: 983,
{'vars': {'x': 3, 'y': 1}}: 961,
{'vars': {'x': 0, 'y': 0}}: 11,
{'vars': {'x': 3, 'y': 3}}: 11,
{'vars': {'x': 0, 'y': 1}}: 11,
{'vars': {'x': 1, 'y': 1}}: 10,
{'vars': {'x': 0, 'y': 3}}: 9,
{'vars': {'x': 0, 'y': 2}}: 8,
{'vars': {'x': 1, 'y': 3}}: 7,
{'vars': {'x': 2, 'y': 3}}: 7,
{'vars': {'x': 3, 'y': 2}}: 6,
{'vars': {'x': 1, 'y': 2}}: 6,
{'vars': {'x': 1, 'y': 0}}: 5,
{'vars': {'x': 2, 'y': 1}}: 5,
{'vars': {'x': 3, 'y': 0}}: 4,
{'vars': {'x': 2, 'y': 2}}: 4]
