Quantum walk on complex network

What this notebook does

Quantum walks are often used as building blocks for graph exploration / graph-based quantum algorithms.

This notebook simulates a discrete-time quantum walk on a complex network (graph).

The graph is a set of nodes connected by edges (we generate it with NetworkX).
The walker position is stored in a quantum register x.
A second register y acts like a coin / direction / neighbor-choice register.
Each step of the walk applies:
Coin operator (mix amplitudes in a way that depends on the current node’s neighbors)
Shift operator (moves the walker according to the coin register)

At the end we measure the position register and plot a probability distribution over nodes.

Note: This is a discrete-time walk (coin + shift), not a continuous-time walk.

Imports and dependencies

import matplotlib.pyplot as plt
import networkx as nx
import numpy as np

from classiq import *

Step 1 — Create a “complex network” (the graph)

Here we generate a small graph G. The notebook currently uses a Watts–Strogatz model, which is a classic “small-world” network model:

it has high clustering (like regular lattices),
and short path lengths (like random graphs).

You can switch to other models by uncommenting the alternatives:

Erdős–Rényi (random graph)
Barabási–Albert (scale-free graph)

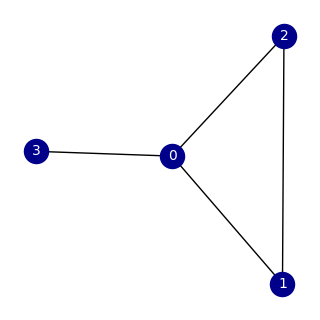

Then we draw the graph so we can visually connect the output distribution to the network structure.

G = nx.connected_watts_strogatz_graph(n=4, k=2, p=0.2, tries=100, seed=312)
# G = nx.erdos_renyi_graph(n=4, p=0.3, seed=42)
# G = nx.barabasi_albert_graph(n=8,m=2)
plt.figure(figsize=(3, 3))
nx.draw(
    G,
    with_labels=True,
    node_color="darkblue",
    edge_color="black",
    font_color="white",
    font_size=10,
)

png

Step 2 — Decide how many qubits are needed for the position register

If the graph has N nodes, we need enough qubits to encode node indices in binary.

N = len(G.nodes())
num_qubits = ceil(log2(N))

That means the quantum register x can represent 2**num_qubits = N.

N = len(G.nodes())
num_qubits = int(np.ceil(np.log2(N)))
print("number of nodes=", N, "number of required qubits=", num_qubits)

number of nodes= 4 number of required qubits= 2

Step 3 — Build “neighbor-aware” probability vectors

A quantum walk on a graph needs a way to represent “where can I go next from node \(i\)?”.

We create helper functions:

get_edges_of_node(G, i): returns the neighbors of node i.
inner_degree(G, num_qubits, i): builds a length 2**num_qubits vector where:
entries corresponding to neighbors of i are 1,
all others are 0,
then we normalize by the node degree k to get a uniform distribution over neighbors.

This vector is used to prepare the y register so it represents “allowed moves” from the current node.

def get_edges_of_node(G, i):
    return [j for j in G.neighbors(i)]


# DEGREE_LIST = np.zeros(N)
# for i in range(N):
#    DEGREE_LIST[i] = len(get_edges_of_node(G, i))


def inner_degree(G, num_qubits, i):
    l_array = np.zeros(2**num_qubits)
    neighbors_list = get_edges_of_node(G, i)
    k = len(neighbors_list)
    for j in neighbors_list:
        l_array[j] = 1
    return l_array / k

Step 4 — Define the quantum walk (state prep, coin, shift, and repeated steps)

This cell defines the core quantum logic using Classiq @qfunc.

Registers

x: position register (which node the walker is on)
y: coin / neighbor register (encodes the neighbor-choice space)

4.1 Initial state: `prepare_initial_state(x, y)`

Goal: start with a clean, interpretable state.

Prepare x in a uniform superposition over valid nodes:
If N is exactly 2**num_qubits, a Hadamard transform gives uniform superposition automatically.
Otherwise, we prepare a custom probability vector that gives equal weight to nodes 0..N-1 and zero to invalid states.
Prepare y conditioned on the current node in x: For each node i, if x == i, we prepare y using the neighbor distribution vector from inner_degree(...).

So after this, the state is conceptually:

“uniform over nodes” in x,
and for each node, y contains amplitudes only on its neighbors.

4.2 Coin operator: `my_coin(x, y)`

A discrete-time quantum walk needs a “coin flip” to mix amplitudes.

Here, the coin depends on the current node:

If x == i, apply a Grover diffuser on register y corresponding to neighbors of node i. This mixes the neighbor amplitudes in a structured way.

4.3 Shift operator: `my_shift(x, y)`

This updates the position based on the coin information.

4.4 Repeating steps: `discrete_quantum_walk(time, coin, shift, x, y)`

We apply the pair (coin, shift) repeatedly time times using power(time, ...).

That is exactly the discrete-time walk loop: (coin → shift) × t

@qfunc
def prepare_initial_state(x: QNum[num_qubits], y: QNum[num_qubits]):
    if N == 2**num_qubits:
        hadamard_transform(x)
    else:
        prob_array = np.ones(2**num_qubits) / N
        prob_array[N : 2**num_qubits] = 0
        inplace_prepare_state(prob_array.tolist(), 0.0, x)
    for i in range(N):
        control(
            x == i,
            lambda: inplace_prepare_state(
                inner_degree(G, num_qubits, i).tolist(), 0.0, y
            ),
        )


@qfunc
def my_coin(x: QNum[num_qubits], y: QNum[num_qubits]):
    for i in range(N):
        control(
            x == i,
            stmt_block=lambda: grover_diffuser(
                lambda y: inplace_prepare_state(
                    inner_degree(G, num_qubits, i).tolist(), 0.0, y
                ),
                y,
            ),
        )


@qfunc
def my_shift(x: QNum[num_qubits], y: QNum[num_qubits]):
    multiswap(x, y)


@qfunc
def discrete_quantum_walk(
    time: CInt,
    coin_qfuncs: QCallable[QNum, QNum],
    shift_qfuncs: QCallable[QNum, QNum],
    x: QNum,
    y: QNum,
):
    power(
        time,
        lambda: (
            coin_qfuncs(x, y),
            shift_qfuncs(x, y),
        ),
    )

Step 5 — Choose number of steps, build `main`, and synthesize the circuit

Number of steps

t controls how far the quantum walk evolves. More steps usually means:

wider spreading over the graph,
more interference patterns,
sometimes more “structure” in the final distribution (depending on the graph).

The `main` quantum program

main(x: Output[QNum[num_qubits]]):

Allocates x (position) and y (coin).
Prepares the initial state.
Applies the discrete-time quantum walk for t steps.
Drops y (we only care about measuring the position distribution in x).

Finally:

synthesize(main) compiles the high-level program into an executable quantum program.
show(qprog) displays the synthesized result.

# quantum walk steps
t = 3


@qfunc
def main(x: Output[QNum[num_qubits]]):
    y = QNum("y", num_qubits)
    allocate(num_qubits, x)
    allocate(num_qubits, y)
    prepare_initial_state(x, y)
    discrete_quantum_walk(t, my_coin, my_shift, x, y)
    drop(y)


qprog = synthesize(main)
show(qprog)

Quantum program link: https://platform.classiq.io/circuit/36q7qOkGDqbMNrOQoLoVHvTZRAo

Step 6 — Execute and collect results

Here we run the synthesized program and fetch the results.

The key output we care about is the measured distribution of the position register x:

each possible node index x has a probability,
these probabilities should sum to ~1 (up to sampling / execution effects).

execution_job = execute(qprog)
result = execution_job.result_value()

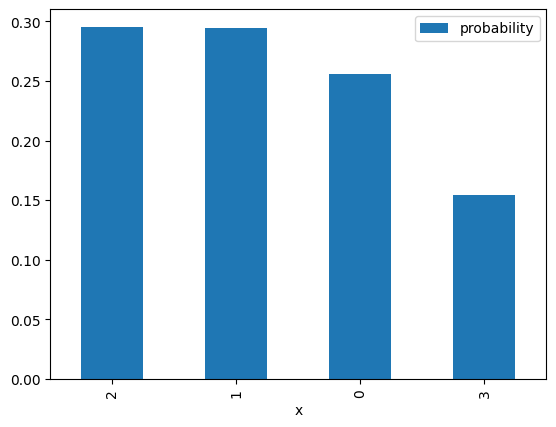

Step 7 — Visualize the probability distribution over nodes

We plot a bar chart:

x-axis: node index (the measured value of the position register x)
y-axis: probability of measuring that node

Tip for interpretation:

Compare “high-probability nodes” to the graph drawing.
Try changing the graph model or t and see how the distribution changes.

result.dataframe.plot.bar(x="x", y="probability")

<Axes: xlabel='x'>

png
