Grover Algorithm for Graph Coloring Problem
In this tutorial, we solve the problem of coloring an undirected graph so that adjacent vertices do not share the same color while satisfying the given constraints. As a toy example, we consider a four-coloring problem for the graph shown below.
import matplotlib.pyplot as plt
import networkx as nx
import numpy as np
from classiq import *
Toy problem
G = nx.Graph()
nodes = ["A", "B", "C", "D", "E", 0, 1, 2, 3]
G.add_nodes_from(nodes)
edges = [
(0, "A"),
(0, "B"),
(0, "C"),
("A", "B"),
("A", 0),
("A", 1),
("B", "C"),
("B", "E"),
("B", 2),
("C", "D"),
("C", "E"),
("D", 1),
("D", 2),
("E", 3),
]
G.add_edges_from(edges)
pos = {
"A": (0, 2),
"B": (-1, 1),
"C": (0, 1),
"D": (1, 1),
"E": (0, 0),
0: (-1, 2),
1: (1, 2),
2: (-1, 0),
3: (1, 0),
}
plt.figure(figsize=(2, 2))
nx.draw(G, pos, with_labels=True, node_size=400, node_color="black", font_color="white")
nx.draw_networkx_nodes(G, pos, nodelist=[0], node_color="red")
nx.draw_networkx_nodes(G, pos, nodelist=[1], node_color="blue")
nx.draw_networkx_nodes(G, pos, nodelist=[2], node_color="orange")
nx.draw_networkx_nodes(G, pos, nodelist=[3], node_color="green")
plt.show()
Grover algorithm
We assign red, blue, orange, and green to the unassigned black nodes above under the given constraints. Here, in order to encode the colors in a program, we replace them with integers:
-
red = 0,
-
blue = 1,
-
orange = 2,
-
green = 3.
Therefore, representing a color requires at most two qubits. We assign two qubits to each node as follows.
class PredicateVars(QStruct):
a: QNum[2, False, 0]
b: QNum[2, False, 0]
c: QNum[2, False, 0]
d: QNum[2, False, 0]
e: QNum[2, False, 0]
oracle function
Next, we construct the oracle that enforces the rule that no two adjacent nodes may share the same color. This condition can be expressed using propositional logic. Here, we denote the color of each node by a variable \(a,b,c,d,e\), where each alphabet represents the node color. For example, \(a\) refers to the color of node A.
Let us first consider node A as a concrete example. Node A is adjacent to three other nodes, so it must satisfy the following constraints:
In other words, node A must not be red or blue, and it must also have a different color from its neighbor B.
Now consider node B. Since node B is connected to multiple nodes, it has the following constraints:
Here, \(\land\) denotes AND. This means that B must not be red or orange, and it must also have a different color from its neighbors C and E.
By applying this idea to each node and summarizing their respective constraints, we can express the oracle in Qmod as follows.
def oracle_function(a, b, c, d, e):
return (
(a != 0)
& (a != 1)
& (a != b)
& (b != 0)
& (b != c)
& (b != e)
& (b != 2)
& (c != 0)
& (c != d)
& (c != e)
& (d != 1)
& (d != 2)
& (e != 3)
)
@qperm
def quantum_predicate(vars: Const[PredicateVars], res: QBit):
res ^= oracle_function(vars.a, vars.b, vars.c, vars.d, vars.e)
Bulding block of Grover
@qfunc
def main(vars: Output[PredicateVars]):
allocate(vars.size, vars)
grover_search(
reps=1,
oracle=lambda vars: phase_oracle(quantum_predicate, vars),
packed_vars=vars,
)
constraints = Constraints(
max_width=28,
)
qmod = create_model(main, constraints=constraints)
qprog = synthesize(qmod)
show(qprog)
Quantum program link: https://platform.classiq.io/circuit/36sRtQJmaObfTTt3d0rbXLidgpK
result = execute(qprog).result_value()
result.dataframe
import numpy as np
def convert_color(int_val):
if int_val == 0:
return "red"
elif int_val == 1:
return "blue"
elif int_val == 2:
return "orange"
elif int_val == 3:
return "green"
NUM_SOLUTIONS = 16
NUM_VARIABLES = 5
solution_list = np.zeros((NUM_SOLUTIONS, NUM_VARIABLES), dtype=int)
for k in range(NUM_SOLUTIONS):
parsed_result = result.parsed_counts[k].state["vars"]
a, b, c, d, e = (
int(parsed_result["a"]),
int(parsed_result["b"]),
int(parsed_result["c"]),
int(parsed_result["d"]),
int(parsed_result["e"]),
)
solution_list[k, 0] = a
solution_list[k, 1] = b
solution_list[k, 2] = c
solution_list[k, 3] = d
solution_list[k, 4] = e
print(
"a =",
a,
", b =",
b,
", c =",
c,
"d =",
d,
"e =",
e,
":",
oracle_function(a, b, c, d, e),
)
a = 3 , b = 1 , c = 3 d = 0 e = 2 : True
a = 2 , b = 1 , c = 3 d = 0 e = 0 : True
a = 2 , b = 3 , c = 1 d = 0 e = 2 : True
a = 2 , b = 1 , c = 2 d = 0 e = 0 : True
a = 2 , b = 3 , c = 2 d = 3 e = 0 : True
a = 2 , b = 3 , c = 2 d = 0 e = 0 : True
a = 2 , b = 3 , c = 2 d = 3 e = 1 : True
a = 2 , b = 3 , c = 2 d = 0 e = 1 : True
a = 2 , b = 3 , c = 1 d = 3 e = 2 : True
a = 3 , b = 1 , c = 2 d = 0 e = 0 : True
a = 2 , b = 1 , c = 3 d = 0 e = 2 : True
a = 2 , b = 3 , c = 1 d = 3 e = 0 : True
a = 2 , b = 1 , c = 2 d = 3 e = 0 : True
a = 3 , b = 1 , c = 2 d = 3 e = 0 : True
a = 2 , b = 3 , c = 1 d = 0 e = 0 : True
a = 3 , b = 1 , c = 3 d = 0 e = 0 : True

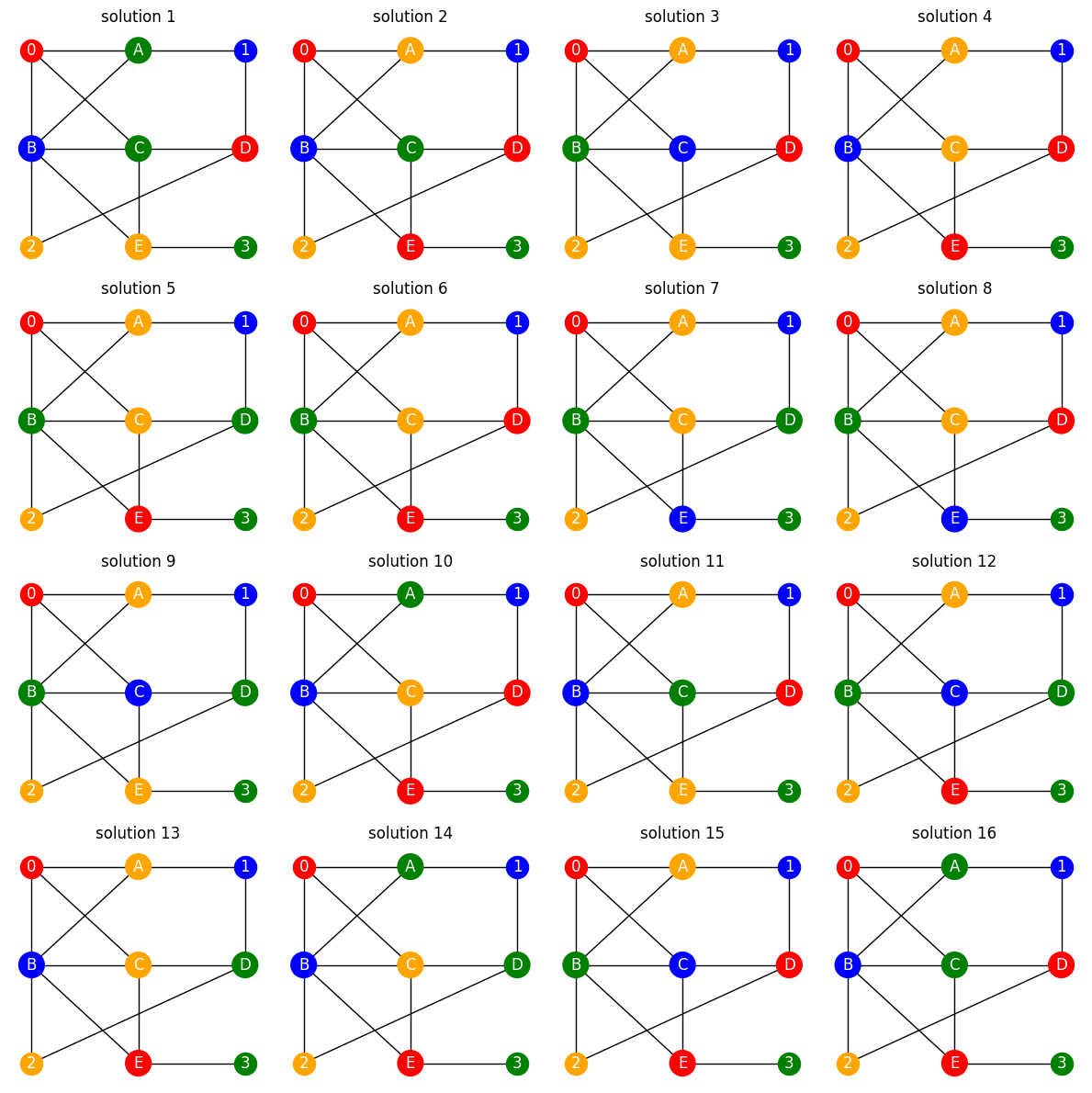

post processing
# gerate the graph of feasible soultions
graphs = []
for i in range(NUM_SOLUTIONS):
graphs.append(G)
fig, axes = plt.subplots(4, 4, figsize=(12, 12))
for i, ax in enumerate(axes.flat):
nx.draw(
G,
pos,
ax=ax,
with_labels=True,
node_size=400,
nodelist=["A", "B", "C", "D", "E"],
node_color=[
convert_color(solution_list[i, 0]),
convert_color(solution_list[i, 1]),
convert_color(solution_list[i, 2]),
convert_color(solution_list[i, 3]),
convert_color(solution_list[i, 4]),
],
font_color="white",
)
nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[0], node_color="red")
nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[1], node_color="blue")
nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[2], node_color="orange")
nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[3], node_color="green")
ax.set_title(f"solution {i+1}")
plt.tight_layout()
plt.show()
