Network Traffic Optimization
The following notebook demonstrates a solution to the network traffic optimization problem, applying the QAOA algorithm.
Input: Weighted directed graph and a set of demands.
Goal: Satisfy the demands, while minimizing the latency, without violating the two constraints.
-
Capacity per edge (unit capacity): \(\sum_d Z(d,e) \leq 1\)
-
Flow conservation for each demand and node
import math
import random
from itertools import product
import matplotlib.pyplot as plt
import networkx as nx
import numpy as np
import pandas as pd
from scipy.optimize import minimize
from tqdm import tqdm
from classiq import *
from classiq.execution import ExecutionPreferences, ExecutionSession
# Upload the latest version of Classiq
#!pip install -U classiq
Create the graph and demands
We define the graph by introducing six vertices (\(A-F\)), V, and connecting edges, E.
Three demands are introduced, each with start and terminal nodes; our goal is to find the minimal-latency disjoint routes that connect the start and terminal nodes of all the demands.
Disjoint routes do not share a node at each time-step.
V = ["A", "B", "C", "D", "E", "F"]
E_with_lat = [
("A", "B", 2),
("B", "E", 2),
("A", "C", 3),
("C", "E", 1),
("B", "D", 1),
("D", "F", 2),
("C", "D", 2),
("E", "F", 1),
]
E = [(u, v) for (u, v, _) in E_with_lat]
lat_vec = np.array([w for (_, _, w) in E_with_lat], dtype=float)
lat = {(u, v): w for (u, v, w) in E_with_lat}
edge_ids = [f"e{i+1}" for i in range(len(E))]
graph = nx.DiGraph()
graph.add_nodes_from(V)
graph.add_weighted_edges_from(E_with_lat)
E = graph.edges()
demands = [
{"name": "d1", "s": "A", "t": "E"},
{"name": "d2", "s": "B", "t": "F"},
{"name": "d3", "s": "C", "t": "F"},
]
D = len(demands)
m = len(E)
Solution
from scipy.optimize import Bounds, LinearConstraint, milp
Z = np.zeros((D, m))
# The mixer Hamiltonian is effectively X/2 and has eigenvalues -0.5 and +0.5. So the difference between minimum and maximum eigenvalues is exactly 1.
# This can be rescaled by a global scaling parameter.
GlobalScalingParameter = 1
# The constraint Hamiltonian has the property that a minimal constraint violation is 1 and no constraint violation is 0.
# We wish to normalise the constraint Hamiltonian relative to the total cost Hamiltonian such that the constraint violation will be 1~2 x larger than the maximal difference between total cost values.
RelativeConstraintNormalisation = 1
# The cost Hamiltonian should be similar in eigenvalue difference to the mixer Hamiltonian and should be normalised to about 1.
# To find the exact normalization requires solving this NP hard problem, so we always use an approximation.
# Since this is approximate, there is a relative scaling parameter we can tweak
RelativeCostNormalisation = 1 / 5
TotalCostNormalisation = GlobalScalingParameter * RelativeCostNormalisation
TotalConstraintNormalisation = RelativeConstraintNormalisation * TotalCostNormalisation
# Normalize latencies
min_solution_guess = (
8 # can be calculated with Dijkstra when removing the single assignment constraint
)
max_solution_guess = 11 # any guess that fits the constraints will work
lat_normalized = {}
for e, w in lat.items():
lat_normalized[e] = (
w * TotalCostNormalisation / (max_solution_guess - min_solution_guess)
)
c = np.tile(lat_vec, D)
# Variable bounds: 0 <= Z[d,e] <= 1 (binary)
lb = np.zeros(D * m)
ub = np.ones(D * m)
integrality = np.ones(D * m, dtype=int)
# Helper: map (d,e) -> flat index
def fidx(d_idx, e_idx):
return d_idx * m + e_idx
lin_constraints = []
# (1) Capacity per edge (unit capacity): sum_d Z[d,e] <= 1
A_cap = np.zeros((m, D * m))
for e_idx in range(m):
for d_idx in range(D):
A_cap[e_idx, fidx(d_idx, e_idx)] = 1.0
cap_lb = -np.inf * np.ones(m)
cap_ub = np.ones(m)
lin_constraints.append(LinearConstraint(A_cap, cap_lb, cap_ub))
# (2) Flow conservation for each demand and node:
# For each demand d and node v: sum_out Z[d,e] - sum_in Z[d,e] = b_{d,v}
def incidence_row_for(d_idx, v):
row = np.zeros(D * m)
for e_idx, (u, v2) in enumerate(E):
if u == v: # outgoing
row[fidx(d_idx, e_idx)] += 1.0
if v2 == v: # incoming
row[fidx(d_idx, e_idx)] -= 1.0
return row
A_flow_rows = []
b_list = []
for d_idx, d in enumerate(demands):
for v in V:
b = 0.0
if v == d["s"]:
b = 1.0
elif v == d["t"]:
b = -1.0
A_flow_rows.append(incidence_row_for(d_idx, v))
b_list.append(b)
A_flow = np.vstack(A_flow_rows)
b_vec = np.array(b_list)
lin_constraints.append(LinearConstraint(A_flow, b_vec, b_vec))
# ---------------------------
# Solve MILP
# ---------------------------
res = milp(
c=c,
integrality=integrality,
bounds=Bounds(lb, ub),
constraints=lin_constraints,
options={"disp": False},
)
x = np.round(res.x).astype(int)
# Convert back to 2D Z[d,e]
Z = x.reshape(D, m)
# ---------------------------
# Decode / present results
# ---------------------------
# Table: Z with demand names and edge IDs
Z_df = pd.DataFrame(
Z, index=[f"{d['name']}({d['s']}→{d['t']})" for d in demands], columns=edge_ids
)
# Table: chosen edges per demand + latency sums
rows = []
for d_idx, d in enumerate(demands):
chosen_edges = [(u, v) for e_idx, (u, v) in enumerate(E) if Z[d_idx, e_idx] == 1]
chosen_labels = [f"{u}→{v}" for (u, v) in chosen_edges]
latency_sum = sum(lat[e] for e in chosen_edges)
rows.append(
{
"Demand": f"{d['name']} ({d['s']}→{d['t']})",
"Chosen edges": ", ".join(chosen_labels) if chosen_labels else "(none)",
"Latency sum": latency_sum,
}
)
df_chosen = pd.DataFrame(rows)
# Try to reconstruct s→t sequence (simple walk)
def reconstruct_path(chosen_edges_list, s, t):
nxt = {}
for u, v in chosen_edges_list:
nxt[u] = v
path = [s]
visited = set([s])
while path[-1] != t and path[-1] in nxt:
nxt_node = nxt[path[-1]]
if nxt_node in visited:
break
path.append(nxt_node)
visited.add(nxt_node)
return path
seq_rows = []
for d_idx, d in enumerate(demands):
chosen = [(u, v) for e_idx, (u, v) in enumerate(E) if Z[d_idx, e_idx] == 1]
seq = reconstruct_path(chosen, d["s"], d["t"])
seq_rows.append(
{
"Demand": f"{d['name']} ({d['s']}→{d['t']})",
"Sequence": "→".join(seq),
"Is complete s→t?": (
len(seq) >= 2 and seq[0] == d["s"] and seq[-1] == d["t"]
),
}
)
df_sequences = pd.DataFrame(seq_rows)
# Objective value
objective = float(c @ x)
# Display
print("Z (2D) solution matrix — rows=demand, cols=edge\n", Z_df)
print("Chosen edges & per-demand latency\n", df_chosen)
print("Reconstructed s→t sequences (validity check)\n", df_sequences)
# ---------- 4) Visualize graph ----------
pos = {
"A": (0, 0.6),
"B": (1, 1.1),
"C": (1, 0.1),
"D": (2, 0.6),
"E": (2, 1.1),
"F": (3, 0.6),
}
plt.figure(figsize=(8, 3.6))
nx.draw(graph, pos, with_labels=True, node_size=1000)
edge_labels = {(u, v): lat[(u, v)] for (u, v) in E}
nx.draw_networkx_edge_labels(graph, pos, edge_labels=edge_labels)
plt.title("Directed graph with 6 nodes and 8 edges (edge labels = latency)")
# plt.tight_layout()
plt.show()
Z (2D) solution matrix — rows=demand, cols=edge
e1 e2 e3 e4 e5 e6 e7 e8
d1(A→E) 1 0 1 0 0 0 0 0
d2(B→F) 0 0 0 1 0 0 1 0
d3(C→F) 0 0 0 0 1 0 0 1
Chosen edges & per-demand latency
Demand Chosen edges Latency sum
0 d1 (A→E) A→B, B→E 4
1 d2 (B→F) B→D, D→F 3
2 d3 (C→F) C→E, E→F 2
Reconstructed s→t sequences (validity check)
Demand Sequence Is complete s→t?
0 d1 (A→E) A→B→E True
1 d2 (B→F) B→D→F True
2 d3 (C→F) C→E→F True

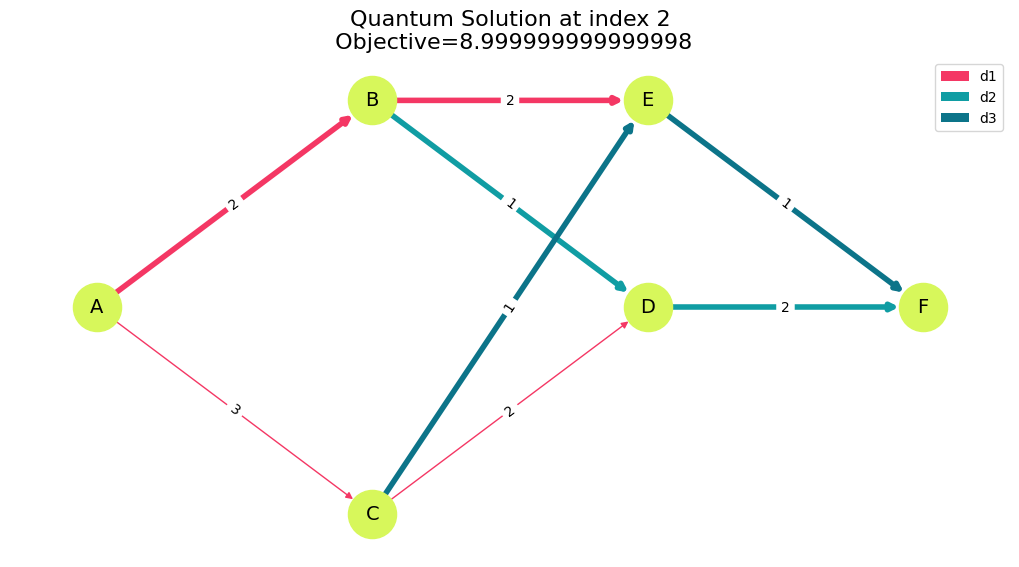

Solution with Classiq by appling the QAOA algorithm
import matplotlib.pyplot as plt
def print_solution_graph(
assigned_z, title="Optimal routing solution — edges colored by demand"
):
# Assign a distinct color per demand
colors_for_demands = ["red", "blue", "green"]
edge_colors = []
edge_widths = []
# Build a mapping from edge -> demand index (if chosen)
edge_to_demand = {}
for d_idx, d in enumerate(demands):
for e_idx, (u, v) in enumerate(graph.edges()):
if assigned_z[d_idx, e_idx] == 1:
edge_to_demand[(u, v)] = d_idx
# Create color list for all edges in E
for u, v in graph.edges():
if (u, v) in edge_to_demand:
demand_idx = edge_to_demand[(u, v)]
edge_colors.append(colors_for_demands[demand_idx])
edge_widths.append(3.0)
else:
edge_colors.append("lightgray")
edge_widths.append(1.0)
# Plot the graph
pos = {
"A": (0, 0.6),
"B": (1, 1.1),
"C": (1, 0.1),
"D": (2, 0.6),
"E": (2, 1.1),
"F": (3, 0.6),
}
plt.figure(figsize=(8, 3.6))
nx.draw(
graph,
pos,
with_labels=True,
node_size=1000,
edge_color=edge_colors,
width=edge_widths,
)
nx.draw_networkx_edge_labels(
graph, pos, edge_labels={(u, v): lat[(u, v)] for (u, v) in E}
)
plt.title(title)
plt.show()
print_solution_graph(Z, "Optimal routing solution — edges colored by demand")
# Objective: sum_d sum_e lat_e * Z[d,e]
def objective_func(assigned_z):
return sum(
(lat_normalized[e] * assigned_z[fidx(d_idx, e_idx)])
for d_idx, d in enumerate(demands)
for e_idx, e in enumerate(graph.edges())
)
def index_of_edge(u, v):
for e_idx, edge in enumerate(graph.edges()):
if edge[0] == u and edge[1] == v:
return e_idx
raise AssertionError("Edge not found")
def constraint_flow_conservation(assigned_z):
total_flow = 0
for d_idx, d in enumerate(demands):
for v in V:
out_sum = sum(
assigned_z[fidx(d_idx, index_of_edge(v, v_out))]
for v_out in graph.successors(v)
)
in_sum = sum(
assigned_z[fidx(d_idx, index_of_edge(v_in, v))]
for v_in in graph.predecessors(v)
)
source_correction = destination_correction = 0
if d["s"] == v:
source_correction = 1
if d["t"] == v:
destination_correction = 1
node_demand_flow = (
in_sum - out_sum + source_correction - destination_correction
)
total_flow += node_demand_flow**2
return TotalConstraintNormalisation * total_flow
def constraint_single_assignment(assigned_z):
def inverse(bit):
return 1 - bit
more_than_a_single_assignment = 0
for e_idx, e in enumerate(graph.edges()):
assignments_of_e = [
assigned_z[fidx(d_idx, e_idx)] for d_idx, d in enumerate(demands)
]
all_assignments = math.prod(assignments_of_e)
two_assignments = 0
for idx, current_assignment in enumerate(assignments_of_e):
rest_of_assignments = [
other_e
for other_idx, other_e in enumerate(assignments_of_e)
if idx != other_idx
]
rest_of_assignments_off = math.prod(rest_of_assignments)
two_assignments += inverse(current_assignment) * rest_of_assignments_off
more_than_a_single_assignment += all_assignments + two_assignments
return TotalConstraintNormalisation * more_than_a_single_assignment
# def constraint_single_assignment(assigned_z):
# up_to_single_assignment = 0
#
# for e_idx, e in enumerate(graph.edges()):
# sum_across_demands = sum(assigned_z[fidx(d_idx, e_idx)] for d_idx, _ in enumerate(demands))
# up_to_single_assignment += ((sum_across_demands - 0.5) / 1.5) ** 2
# return up_to_single_assignment
def cost_hamiltonian(assigned_Z):
objective_weight = 1
flow_conservation_weight = 1
single_assignment_weight = 1
return (
objective_weight * objective_func(assigned_Z)
+ flow_conservation_weight * constraint_flow_conservation(assigned_Z)
+ single_assignment_weight * constraint_single_assignment(assigned_Z)
)
NUM_LAYERS = 5
@qfunc
def mixer_layer(beta: CReal, qba: QArray[QBit]):
apply_to_all(lambda q: RX(GlobalScalingParameter * beta, q), qba),
@qfunc
def main(
params: CArray[CReal, 2 * NUM_LAYERS],
z: Output[QArray[QBit, m * D]],
) -> None:
allocate(z)
hadamard_transform(z)
repeat(
count=NUM_LAYERS,
iteration=lambda i: (
phase(phase_expr=cost_hamiltonian(z), theta=params[2 * i]),
mixer_layer(params[2 * i + 1], z),
),
)
qprog = synthesize(main)
# circuit width
# qprog.data.width
# circuit depth
# qprog.transpiled_circuit.depth
NUM_SHOTS = 10000
es = ExecutionSession(
qprog, execution_preferences=ExecutionPreferences(num_shots=NUM_SHOTS)
)
def initial_qaoa_params(NUM_LAYERS) -> np.ndarray:
initial_gammas = math.pi * np.linspace(
1 / (2 * NUM_LAYERS), 1 - 1 / (2 * NUM_LAYERS), NUM_LAYERS
)
initial_betas = math.pi * np.linspace(
1 - 1 / (2 * NUM_LAYERS), 1 / (2 * NUM_LAYERS), NUM_LAYERS
)
initial_params = []
for i in range(NUM_LAYERS):
initial_params.append(initial_gammas[i])
initial_params.append(initial_betas[i])
return np.array(initial_params)
initial_params = initial_qaoa_params(NUM_LAYERS)
cost_func = lambda state: cost_hamiltonian(state["z"])
# estimate_cost_func = lambda params: es.estimate_cost(cost_func, {"params": params.tolist()})
def estimate_cost_func(params):
objective_val = es.estimate_cost(cost_func, {"params": params.tolist()})
objective_values.append(objective_val)
# print(objective_val)
return objective_val
# Record the steps of the optimization
intermediate_params = []
objective_values = []
# Define the callback function to store the intermediate steps
def callback(xk):
intermediate_params.append(xk)
objective_values.append(es.estimate_cost(cost_func, {"params": xk.tolist()}))
MAX_ITERATIONS = 10
with tqdm(total=MAX_ITERATIONS, desc="Optimization Progress", leave=True) as pbar:
def progress_bar(xk: np.ndarray) -> None:
pbar.update(1) # increment progress bar
optimization_res = minimize(
estimate_cost_func,
x0=initial_params,
method="COBYLA",
# callback=callback,
options={"maxiter": MAX_ITERATIONS},
callback=progress_bar,
)
Optimization Progress: 0%| | 0/10 [00:00<?, ?it/s]/Users/roiedann/user-venv/lib/python3.11/site-packages/scipy/_lib/pyprima/common/preproc.py:68: UserWarning: COBYLA: Invalid MAXFUN; it should be at least num_vars + 2; it is set to 12
warn(f'{solver}: Invalid MAXFUN; it should be at least {min_maxfun_str}; it is set to {maxfun}')
Optimization Progress: 0%| | 0/10 [03:36<?, ?it/s]
Printing the optimized QAOA parameters
res = es.sample({"params": optimization_res.x.tolist()})
print(f"Optimized parameters: {optimization_res.x.tolist()}")
Optimized parameters: [0.3141592653589793, 2.827433388230814, 0.942477796076938, 2.199114857512855, 1.5707963267948966, 1.5707963267948966, 2.199114857512855, 0.9424777960769377, 2.827433388230814, 0.3141592653589793]
def check_validity(assigned_z: list[int]) -> bool:
if constraint_flow_conservation(assigned_z) != 0:
return False
if constraint_single_assignment(assigned_z) != 0:
return False
return True
Results
Print solutions, check their validity and signify the number of valid solution and thier associate index.
sorted_counts = sorted(res.parsed_counts, key=lambda pc: pc.shots, reverse=True)
count = 0
def print_res(sampled):
color = "92m"
assigned_z = sampled.state["z"]
if not check_validity(assigned_z):
color = "91m"
print(
f"\033[{color}solution={assigned_z} probability={sampled.shots/NUM_SHOTS} cost={cost_hamiltonian(assigned_z)}\033[0m, objective={objective_func(assigned_z)/TotalCostNormalisation * (max_solution_guess-min_solution_guess)}"
)
valid_solutions = []
for sampled in sorted_counts[:15]:
print_res(sampled)
for idx, sampled in enumerate(sorted_counts):
if check_validity(sampled.state["z"]):
valid_solutions.append(idx)
count += sampled.shots / NUM_SHOTS
print(f"Valid solution at index {idx}")
print(count)
[92msolution=[1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.0052 cost=0.6[0m, objective=8.999999999999998
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.0047 cost=0.7333333333333334[0m, objective=5.0
[91msolution=[1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.0044 cost=0.8[0m, objective=5.999999999999999
[92msolution=[0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0] probability=0.0032 cost=0.7333333333333333[0m, objective=10.999999999999998
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0] probability=0.0032 cost=1.0[0m, objective=3.0
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0] probability=0.0032 cost=1.0[0m, objective=3.0
[91msolution=[0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0] probability=0.003 cost=0.8666666666666667[0m, objective=6.999999999999999
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.003 cost=0.9333333333333333[0m, objective=2.0
[91msolution=[0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.0028 cost=0.8[0m, objective=8.999999999999998
[91msolution=[1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.0025 cost=0.9333333333333333[0m, objective=8.0
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] probability=0.0024 cost=1.2000000000000002[0m, objective=0.0
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1] probability=0.0023 cost=1.0666666666666667[0m, objective=4.0
[91msolution=[0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] probability=0.0022 cost=1.0666666666666669[0m, objective=4.0
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0] probability=0.0022 cost=1.0666666666666667[0m, objective=4.0
[91msolution=[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0] probability=0.0022 cost=1.0666666666666667[0m, objective=4.0
Valid solution at index 0
Valid solution at index 3
0.0084
Convert the 1D information to a 2D, suitable for plotting.
def convert_1d_to_2d(array_1d):
array_2d = np.zeros((D, m))
for d_idx in range(D):
for e_idx in range(m):
array_2d[d_idx][e_idx] = array_1d[fidx(d_idx, e_idx)]
return array_2d
solution_0 = sorted_counts[2].state["z"]
print(convert_1d_to_2d(solution_0))
print(f"{check_validity(solution_0)=}")
print(f"{constraint_single_assignment(solution_0)=}")
print(f"{constraint_flow_conservation(solution_0)=}")
print(
f"{objective_func(solution_0)/TotalCostNormalisation * (max_solution_guess-min_solution_guess)=}"
)
[[1. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 1.]]
check_validity(solution_0)=False
constraint_single_assignment(solution_0)=0.0
constraint_flow_conservation(solution_0)=0.4
objective_func(solution_0)/TotalCostNormalisation * (max_solution_guess-min_solution_guess)=5.999999999999999
Printing the valid solutions
for i in valid_solutions:
solution_i = sorted_counts[i].state["z"]
if i == 0:
title = "Solution - edges colored by demand"
else:
title = "Optimal Solution - edges colored by demand"
print_solution_graph(convert_1d_to_2d(solution_i), title)
print(convert_1d_to_2d(solution_i))
print(f"{check_validity(solution_i)=}")
print(f"{constraint_single_assignment(solution_i)=}")
print(
f"{objective_func(solution_i)/TotalCostNormalisation * (max_solution_guess-min_solution_guess)=}"
)
[[1. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 1.]]
check_validity(solution_i)=True
constraint_single_assignment(solution_i)=0.0
objective_func(solution_i)/TotalCostNormalisation * (max_solution_guess-min_solution_guess)=8.999999999999998
[[0. 1. 0. 0. 1. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 1. 1. 0.]]
check_validity(solution_i)=True
constraint_single_assignment(solution_i)=0.0
objective_func(solution_i)/TotalCostNormalisation * (max_solution_guess-min_solution_guess)=10.999999999999998
