This tutorial demonstrates an approximated quantum function: a state preparation. Depending on the given functional error, the synthesis engine automatically chooses implementation with fewer resources. The demonstration is on a random state vector, of size 262^6.
import numpy as np

NUM_QUBITS = 6
np.random.seed(12)
amplitudes = 1 - 2 * np.random.rand(2**NUM_QUBITS)
amplitudes = (amplitudes / np.linalg.norm(amplitudes)).tolist()


bounds = np.linspace(0.0, 0.3, 10)
print("The upper bounds:", bounds)
Output:

The upper bounds: [

0.         0.03333333 0.06666667 0.1        0.13333333 0.16666667
   0.2        0.23333333 0.26666667 0.3       ]



from classiq import *

preferences = Preferences(
    custom_hardware_settings=CustomHardwareSettings(basis_gates=["cx", "u"]),
    random_seed=1235,
    optimization_timeout_seconds=100,
    transpilation_option="custom",
)


depths = []
cx_counts = []
qprogs = []

for b in bounds:

    @qfunc
    def main(out: Output[QArray]) -> None:
        prepare_amplitudes(amplitudes=amplitudes, bound=b, out=out)

    qprog = synthesize(main, preferences=preferences)
    qprogs.append(qprog)

    depths.append(qprog.transpiled_circuit.depth)
    cx_counts.append(qprog.transpiled_circuit.count_ops["cx"])


print("classiq depths:", depths)
print("cx-counts depths:", cx_counts)
Output:
classiq depths: [114, 8662, 7853, 7622, 7392, 6932, 6702, 6472, 6241, 6010]
  cx-counts depths: [62, 5722, 5171, 5011, 4851, 4531, 4371, 4211, 4051, 3891]

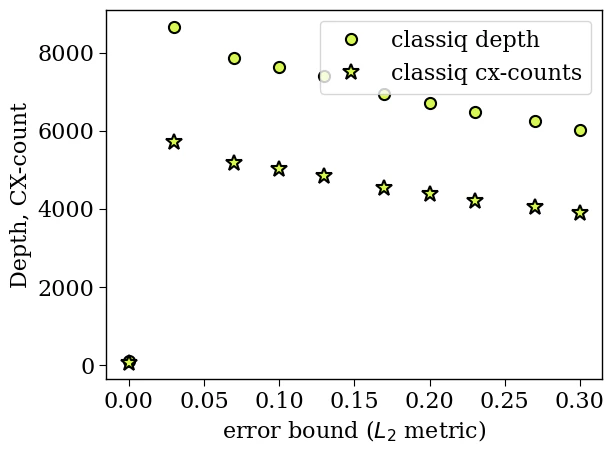

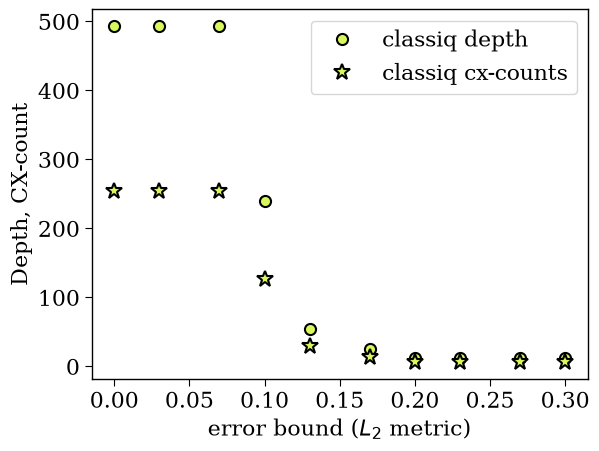

import matplotlib.pyplot as plt

classiq_color = "#D7F75B"
plt.rcParams["font.family"] = "serif"
plt.rc("savefig", dpi=300)

plt.rcParams["axes.linewidth"] = 1
plt.rcParams["xtick.major.size"] = 5
plt.rcParams["xtick.minor.size"] = 5
plt.rcParams["ytick.major.size"] = 5
plt.rcParams["ytick.minor.size"] = 5


plt.plot(
    np.round(bounds, 2),
    depths,
    "o",
    label="classiq depth",
    markerfacecolor=classiq_color,
    markeredgecolor="k",
    markersize=8,
    markeredgewidth=1.5,
)
plt.plot(
    np.round(bounds, 2),
    cx_counts,
    "*",
    label="classiq cx-counts",
    markerfacecolor=classiq_color,
    markeredgecolor="k",
    markersize=12,
    markeredgewidth=1.5,
)


plt.legend(fontsize=16, loc="upper right")


plt.ylabel("Depth, CX-count", fontsize=16)
plt.xlabel("error bound ($L_2$ metric)", fontsize=16)
plt.yticks(fontsize=16)
plt.xticks(fontsize=16)
Output:
(array([-0.05,

0.  ,  0.05,  0.1 ,  0.15,  0.2 ,  0.25,  0.3 ,  0.35]),
   [Text(-0.05, 0, '−0.05'),
    Text(0.0, 0, '0.00'),
    Text(0.05, 0, '0.05'),
    Text(0.10000000000000002, 0, '0.10'),
    Text(0.15000000000000002, 0, '0.15'),
    Text(0.2, 0, '0.20'),
    Text(0.25000000000000006, 0, '0.25'),
    Text(0.30000000000000004, 0, '0.30'),
    Text(0.35000000000000003, 0, '0.35')])
output
