Grover Algorithm for Graph Coloring Problem

View on GitHub

Open this notebook in GitHub to run it yourself

In this tutorial, we solve the problem of coloring an undirected graph so that adjacent vertices do not share the same color while satisfying the given constraints. As a toy example, we consider a four-coloring problem for the graph shown below.

import matplotlib.pyplot as plt
import networkx as nx
import numpy as np

from classiq import *

Toy Problem

G = nx.Graph()

nodes = ["A", "B", "C", "D", "E", 0, 1, 2, 3]
G.add_nodes_from(nodes)

edges = [
    (0, "A"),
    (0, "B"),
    (0, "C"),
    ("A", "B"),
    ("A", 0),
    ("A", 1),
    ("B", "C"),
    ("B", "E"),
    ("B", 2),
    ("C", "D"),
    ("C", "E"),
    ("D", 1),
    ("D", 2),
    ("E", 3),
]
G.add_edges_from(edges)

pos = {
    "A": (0, 2),
    "B": (-1, 1),
    "C": (0, 1),
    "D": (1, 1),
    "E": (0, 0),
    0: (-1, 2),
    1: (1, 2),
    2: (-1, 0),
    3: (1, 0),
}


plt.figure(figsize=(2, 2))
nx.draw(G, pos, with_labels=True, node_size=400, node_color="black", font_color="white")
nx.draw_networkx_nodes(G, pos, nodelist=[0], node_color="red")
nx.draw_networkx_nodes(G, pos, nodelist=[1], node_color="blue")
nx.draw_networkx_nodes(G, pos, nodelist=[2], node_color="orange")
nx.draw_networkx_nodes(G, pos, nodelist=[3], node_color="green")
plt.show()

Grover Algorithm

We assign red, blue, orange, and green to the unassigned black nodes above under the given constraints. Here, in order to encode the colors in a program, we replace them with integers:

red = 0,
blue = 1,
orange = 2,
green =

Therefore, representing a color requires at most two qubits. We assign two qubits to each node as follows.

class PredicateVars(QStruct):
    a: QNum[2, False, 0]
    b: QNum[2, False, 0]
    c: QNum[2, False, 0]
    d: QNum[2, False, 0]
    e: QNum[2, False, 0]

Oracle Function

Next, we construct the oracle that enforces the rule that no two adjacent nodes may share the same color. This condition can be expressed using propositional logic. Here, we denote the color of each node by a variable

a,b,c,d,e

, where each alphabet represents the node color. For example,

a

refers to the color of node A. Let us first consider node A as a concrete example. Node A is adjacent to three other nodes, so it must satisfy the following constraints:

(a \ne \text{red}) \land (a \ne b) \land (a \ne \text{blue})

In other words, node A must not be red or blue, and it must also have a different color from its neighbor B. Now consider node B. Since node B is connected to multiple nodes, it has the following constraints:

(b \ne \text{red}) \land (b \ne c) \land (b \ne e) \land (b \ne \text{orange})

Here,

\land

denotes AND. This means that B must not be red or orange, and it must also have a different color from its neighbors C and E. By applying this idea to each node and summarizing their respective constraints, we can express the oracle in Qmod as follows.

def oracle_function(a, b, c, d, e):
    return (
        (a != 0)
        & (a != 1)
        & (a != b)
        & (b != 0)
        & (b != c)
        & (b != e)
        & (b != 2)
        & (c != 0)
        & (c != d)
        & (c != e)
        & (d != 1)
        & (d != 2)
        & (e != 3)
    )


@qperm
def quantum_predicate(vars: Const[PredicateVars], res: QBit):
    res ^= oracle_function(vars.a, vars.b, vars.c, vars.d, vars.e)

Bulding Block of Grover

@qfunc
def main(vars: Output[PredicateVars]):
    allocate(vars.size, vars)
    grover_search(
        reps=1,
        oracle=lambda vars: phase_oracle(quantum_predicate, vars),
        packed_vars=vars,
    )

MAX_WIDTH = 24
constraints = Constraints(
    max_width=MAX_WIDTH,
)

qprog = synthesize(main, constraints=constraints)
show(qprog)

Output:

Quantum program link: https://platform.classiq.io/circuit/3HpKJziAzBa0CrL1jQTuXaRPbCq


df = sample(qprog)
df

Output:

Submitting job to simulator
  Job: https://platform.classiq.io/jobs/3c750f66-641f-489c-8a30-e48ce23b1508


	vars.a	vars.b	vars.c	vars.d	vars.e	counts	probability	bitstring
0	2	1	2	0	0	21	0.010254	0000100110
1	3	1	2	0	0	21	0.010254	0000100111
2	2	3	2	3	1	21	0.010254	0111101110
3	2	3	2	3	0	20	0.009766	0011101110
4	2	3	2	0	1	20	0.009766	0100101110
…	…	…	…	…	…	…	…	…
831	3	1	3	3	3	1	0.000488	1111110111
832	1	2	3	3	3	1	0.000488	1111111001
833	2	2	3	3	3	1	0.000488	1111111010
834	3	2	3	3	3	1	0.000488	1111111011
835	2	3	3	3	3	1	0.000488	1111111110

836 rows × 8 columns

import numpy as np


def convert_color(int_val):
    if int_val == 0:
        return "red"
    elif int_val == 1:
        return "blue"
    elif int_val == 2:
        return "orange"
    elif int_val == 3:
        return "green"


NUM_SOLUTIONS = 16
NUM_VARIABLES = 5
solution_list = np.zeros((NUM_SOLUTIONS, NUM_VARIABLES), dtype=int)
for k, row in df.head(NUM_SOLUTIONS).iterrows():
    a = int(row["vars.a"])
    b = int(row["vars.b"])
    c = int(row["vars.c"])
    d = int(row["vars.d"])
    e = int(row["vars.e"])
    solution_list[k, 0] = a
    solution_list[k, 1] = b
    solution_list[k, 2] = c
    solution_list[k, 3] = d
    solution_list[k, 4] = e
    print(
        "a =",
        a,
        ", b =",
        b,
        ", c =",
        c,
        "d =",
        d,
        "e =",
        e,
        ":",
        oracle_function(a, b, c, d, e),
    )

Output:

a = 2 , b = 1 , c = 2 d = 0 e = 0 : True
  a = 3 , b = 1 , c = 2 d = 0 e = 0 : True
  a = 2 , b = 3 , c = 2 d = 3 e = 1 : True
  a = 2 , b = 3 , c = 2 d = 3 e = 0 : True
  a = 2 , b = 3 , c = 2 d = 0 e = 1 : True
  a = 2 , b = 3 , c = 1 d = 0 e = 0 : True
  a = 2 , b = 3 , c = 1 d = 0 e = 2 : True
  a = 3 , b = 1 , c = 3 d = 0 e = 2 : True
  a = 3 , b = 1 , c = 2 d = 3 e = 0 : True
  a = 2 , b = 1 , c = 3 d = 0 e = 0 : True
  a = 2 , b = 3 , c = 2 d = 0 e = 0 : True
  a = 2 , b = 3 , c = 1 d = 3 e = 0 : True
  a = 2 , b = 1 , c = 2 d = 3 e = 0 : True
  a = 2 , b = 3 , c = 1 d = 3 e = 2 : True
  a = 3 , b = 1 , c = 3 d = 0 e = 0 : True
  a = 2 , b = 1 , c = 3 d = 0 e = 2 : True

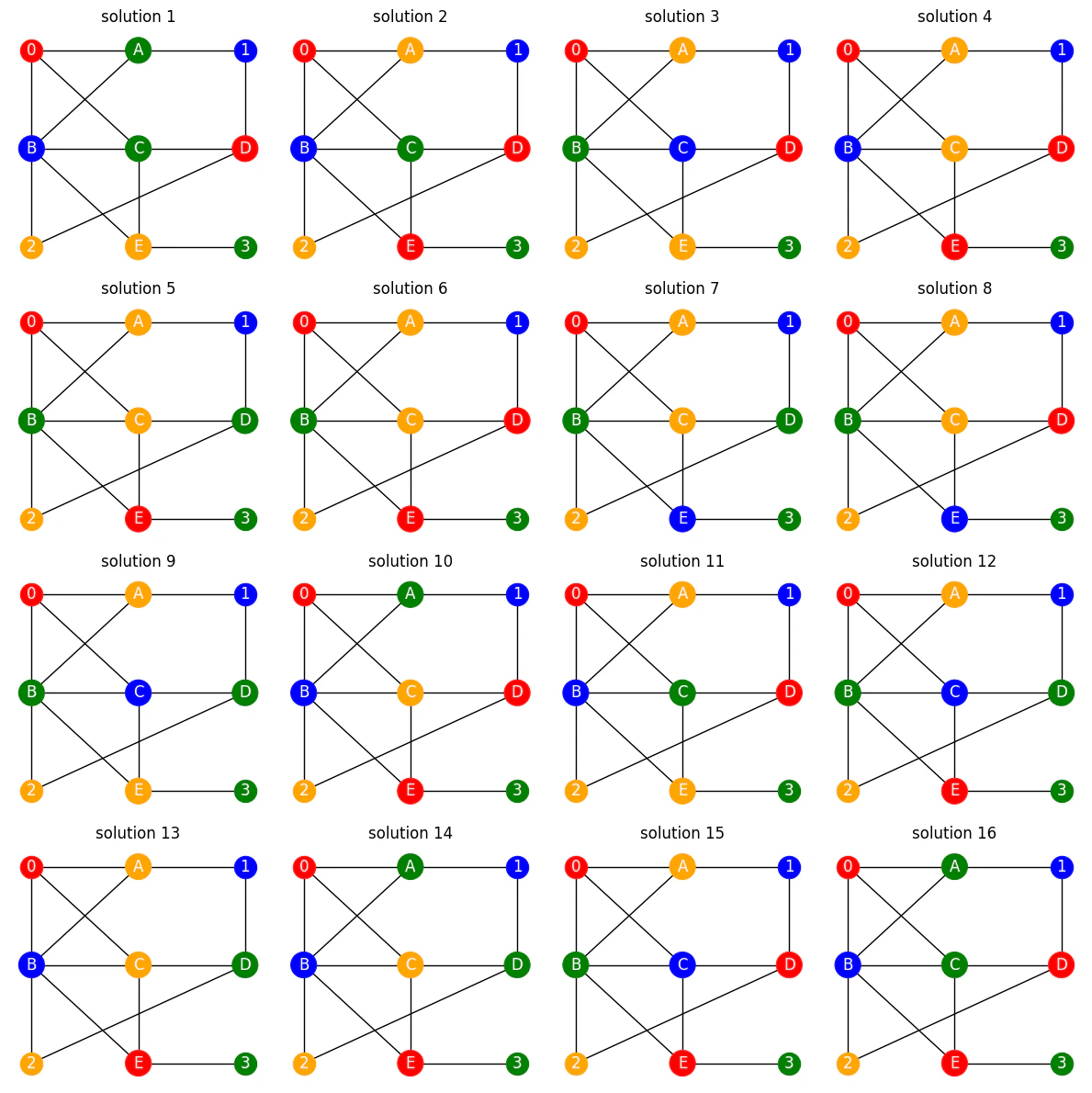

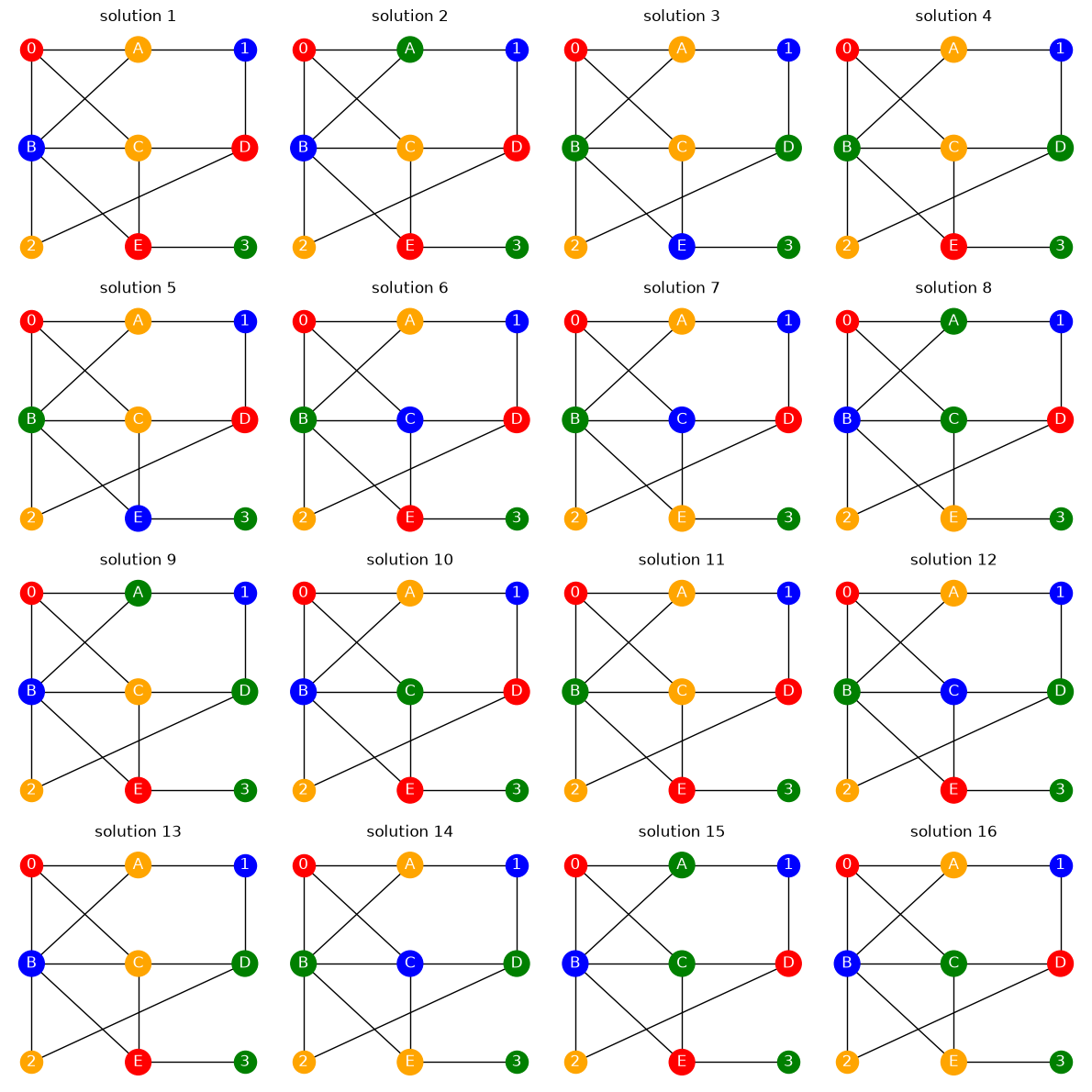

Post Processing

# gerate the graph of feasible soultions
graphs = []
for i in range(NUM_SOLUTIONS):
    graphs.append(G)


fig, axes = plt.subplots(4, 4, figsize=(12, 12))
for i, ax in enumerate(axes.flat):
    nx.draw(
        G,
        pos,
        ax=ax,
        with_labels=True,
        node_size=400,
        nodelist=["A", "B", "C", "D", "E"],
        node_color=[
            convert_color(solution_list[i, 0]),
            convert_color(solution_list[i, 1]),
            convert_color(solution_list[i, 2]),
            convert_color(solution_list[i, 3]),
            convert_color(solution_list[i, 4]),
        ],
        font_color="white",
    )
    nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[0], node_color="red")
    nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[1], node_color="blue")
    nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[2], node_color="orange")
    nx.draw_networkx_nodes(G, pos, ax=ax, nodelist=[3], node_color="green")
    ax.set_title(f"solution {i+1}")

plt.tight_layout()
plt.show()
