Grover’s Search Algorithm, introduced by Lov Grover in 1996 [1], is one of the canonical quantum algorithms. It provides a quadratic speedup for searching an unstructured database and is often considered alongside Shor’s algorithm as a cornerstone of quantum computing. The search algorithm has applications in various fields, such as in cybersecurity.

Input: A Boolean function (oracle) $f: \{0,1\}^n \rightarrow \{0,1\}$ marking “solutions” among $N = 2^n$ possible items.

Promise: At least one marked element exists in the search space.

Output: With high probability, the algorithm outputs a marked element $x$ (i.e., $f(x) = 1$ ).

Complexity: The algorithm requires $O(\sqrt{N})$ oracle queries to obtain the result, while the query complexity for classical search is $O(N)$ .
Keywords: Search and optimization, Unstructured search, Quadratic speedup, Amplitude amplification, Graph problems, SAT problems, Oracle/Query complexity.

Grover’s Search algorithm starts with preparing the search space

|s\rangle

, and then repeats over a combination of two reflection operations:

U_f|x\rangle = (-1)^{f(x)}|x\rangle \qquad \text{usually called an "Oracle", adds a minus phase to marked states, and}

U_s = 2|s\rangle\langle s|-1 \qquad \text{usually called a "Diffuser", reflects around the full search space.}

The number of times we need to repeat the combination of these two reflections (sometimes called a “Grover Operator”) depends on the number of solutions: for

k

solutions in a search space of size

N

, we shall perform

r\sim \pi \sqrt{N/k}

iterations. In practice, however, the number of solutions is often unknown. In that case, one can perform a quantum counting algorithm prior to the search, or run the search algorithm repeatedly, with an increasing number of repetitions

r_i\sim \frac{\pi}{4} \sqrt{2^i}

for

i=0,1,\dots

. Both approaches do not affect the complexity of the search algorithm. In this notebook we take the second approach. For a given problem, Grover’s algorithm depends on two functions, one for preparing the search space and another for applying the oracle, as well as on the number of repetitions. Below we address two canonical search problems, a 3-SAT problem and a Max-Cut problem on a graph. In this notebook we work with the grover_operator function, and define a classical postprocess function for iterating over different

r

values and obtianing the marked states. Using the phase_oracle quantum function from the Classiq open-library together with the Qmod language for high-level problem definitions helps avoid low-level implementation details that are typically required on other platforms.

Classical Postprocess Function

Below we define a function that runs a quantum program of the Grover’s search algorithm, for an increasing number of repetitions, until a marked state is found.

import numpy as np

from classiq import *
from classiq.qmod.symbolic import pi


def repeat_grover_until_success(
    grover_search_qprog, classical_formula, num_shots=1000, threshold=0.45, max_iter=4
):
    """
    Runs a grover_search_qprog with different powers, given by a CInt parameter `r`.
    """
    i = 0
    r_previous = None
    while i < max_iter:
        r = int(np.ceil(np.pi / 4 * np.sqrt(2**i)))
        if r == r_previous:
            # skip duplicate r
            i += 1
            continue

        print(f"running Grover with {r} repetitions")
        df_grover = sample(
            grover_search_qprog, parameters={"r": r}, num_shots=num_shots
        )

        quantum_cols = [
            c
            for c in df_grover.columns
            if c not in ("counts", "probability", "bitstring")
        ]
        for _, row in df_grover.iterrows():
            if (
                classical_formula(**{col: row[col] for col in quantum_cols})
                and row["probability"] > threshold
            ):
                print(
                    f"Success! a solution was found with probability larger than {threshold}, using {r} repetitions"
                )
                return df_grover, r

        r_previous = r
        i += 1
    print(
        f"Could not find a solution, try to in increase max_iter or decrease the threshold, returning last run."
    )
    return df_grover, r

Example: 3-SAT Problem

The 3-SAT problem [2] is a famous

\text{NP-Complete}

problem, a solution of which allows solving any problem in the complexity class

\text{NP}

. We treat two different 3-SAT problems, a small one and a larger one. For illustration, we define a function for printing the truth table of SAT problems.

import itertools


def print_truth_table(num_variables, boolean_func):
    variables = [f"x{i}" for i in range(num_variables)]
    combinations = list(itertools.product([0, 1], repeat=num_variables))

    header = "  ".join([f"{var:<5}" for var in variables]) + " | Result"
    print(header)
    print("-" * len(header))

    for combination in combinations:
        result = boolean_func(list(combination)) != 0  # pass as array
        values_str = "  ".join([f"{val:<5}" for val in combination])
        print(f"{values_str} | {result:<5}")

We start with a small problem:

Small 3-SAT Formula

We specify a 3-SAT formula in the so-called Conjunctive Normal Form (CNF), that requires a solution:

(x_1 \lor x_2 \lor x_3) \land (\neg x_1 \lor x_2 \lor x_3) \land (\neg x_1 \lor \neg x_2 \lor \neg x_3) \land (\neg x_1 \lor \neg x_2 \lor x_3) \land (x_1 \lor x_2 \lor \neg x_3) \land (\neg x_1 \lor x_2 \lor \neg x_3)

NUM_VARIABLES = 3


def small_3sat_formula(x):
    return (
        (x[0] | x[1] | x[2])
        & (~x[0] | x[1] | x[2])
        & (~x[0] | ~x[1] | ~x[2])
        & (~x[0] | ~x[1] | x[2])
        & (x[0] | x[1] | ~x[2])
        & (~x[0] | x[1] | ~x[2])
    )

We can see that the formula has two possible solutions:

print_truth_table(NUM_VARIABLES, small_3sat_formula)

Output:

x0     x1     x2    | Result
  ----------------------------
    0      0     | 0
    0      1     | 0
    1      0     | 1
    1      1     | 1
    0      0     | 0
    0      1     | 0
    1      0     | 0
    1      1     | 0


We define the Grover search model for finding the solution. To specify the model, we use the standard phase_oracle that transforms ‘digital’ oracle; i.e.,

|x\rangle|0\rangle \rightarrow |x\rangle|f(x)\rangle

to a phase oracle

|x\rangle \rightarrow (-1)^{f(x)}|x\rangle

. The predicate that we pass to the phase oracle is simply given by the 3-CNF formula defined above.

@qperm
def sat_oracle(x: Const[QArray], res: QBit):
    res ^= small_3sat_formula(x)


@qfunc
def main(r: CInt, x: Output[QArray[NUM_VARIABLES]]):
    allocate(x)
    hadamard_transform(x)

    power(
        r,
        lambda: grover_operator(
            lambda vars: phase_oracle(sat_oracle, vars), hadamard_transform, x
        ),
    )


qprog_small_3sat = synthesize(
    main, constraints=Constraints(optimization_parameter="width")
)
one_rep_qprog_small_3sat = assign_parameters(qprog_small_3sat, {"r": 1})

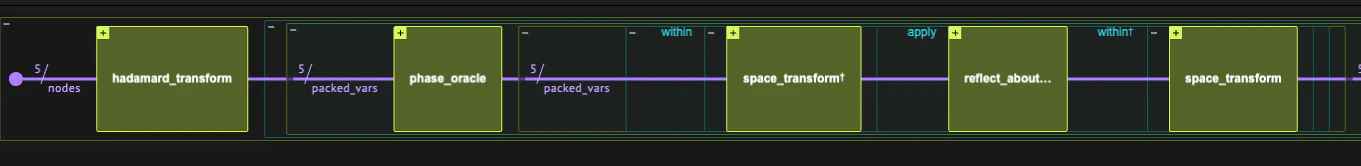

show(qprog_small_3sat)

Output:

Quantum program link: https://platform.classiq.io/circuit/3HroPXibkWaJHlTc2VhFMTod2rv


We execute our repeat until success function:

res_3_sat_small, r = repeat_grover_until_success(qprog_small_3sat, small_3sat_formula)

Output:


Submitting job to simulator

Output:

running Grover with 1 repetitions

Output:


Job: https://platform.classiq.io/jobs/59597186-58e3-498c-b786-dd8a1af05d9c

Output:

Success! a solution was found with probability larger than 0.45, using 1 repetitions


We can see that a single iteration was needed to find solutions with high probability:

n_solutions = 3
df = res_3_sat_small
df_new = df.head(n_solutions).copy()
first_col = df.columns[0]
df_new["f(x)"] = df_new[first_col].apply(small_3sat_formula)
print("The quantum search result:")
df_new

Output:


The quantum search result:

	x	counts	probability	bitstring	f(x)
0	[0, 1, 1]	513	0.513	110	1
1	[0, 1, 0]	487	0.487	010	1

Large 3-SAT Formula

We continue with a larger example:

def large_3sat_formula(x):
    return (
        (x[1] | x[2] | x[3])
        & (~x[0] | x[1] | x[2])
        & (~x[0] | x[1] | ~x[2])
        & (~x[0] | ~x[1] | x[2])
        & (x[0] | ~x[1] | ~x[2])
        & (x[0] | ~x[1] | x[2])
        & (~x[0] | ~x[1] | ~x[3])
        & (~x[0] | ~x[1] | x[3])
        & (~x[1] | ~x[2] | ~x[3])
        & (x[1] | ~x[2] | x[3])
        & (x[0] | ~x[2] | x[3])
        & (x[0] | ~x[1] | ~x[3])
        & (~x[0] | ~x[1] | ~x[2])
    )


NUM_VARIABLES_LARGE = 4
print_truth_table(NUM_VARIABLES_LARGE, large_3sat_formula)

Output:

x0     x1     x2     x3    | Result
  -----------------------------------
    0      0      0     | 0
    0      0      1     | 1
    0      1      0     | 0
    0      1      1     | 1
    1      0      0     | 0
    1      0      1     | 0
    1      1      0     | 0
    1      1      1     | 0
    0      0      0     | 0
    0      0      1     | 0
    0      1      0     | 0
    0      1      1     | 0
    1      0      0     | 0
    1      0      1     | 0
    1      1      0     | 0
    1      1      1     | 0


The procedure is identical to the small use-case, just changing small_3sat_formula to large_3sat_formula.

@qperm
def sat_oracle(x: Const[QArray], df_grover: QBit):
    df_grover ^= large_3sat_formula(x)


@qfunc
def main(r: CInt, x: Output[QArray[NUM_VARIABLES_LARGE]]):
    allocate(x)
    hadamard_transform(x)

    power(
        r,
        lambda: grover_operator(
            lambda vars: phase_oracle(sat_oracle, vars), hadamard_transform, x
        ),
    )


qprog_large_3sat = synthesize(
    main, constraints=Constraints(optimization_parameter="width")
)
show(qprog_large_3sat)
res_3_sat_large, r = repeat_grover_until_success(qprog_large_3sat, large_3sat_formula)
one_rep_qprog_large_3sat = assign_parameters(qprog_large_3sat, {"r": 1})

Output:


Submitting job to simulator

Output:

Quantum program link: https://platform.classiq.io/circuit/3HroQe8Fn2yLsuWgQ3hdBBzVF1F
  running Grover with 1 repetitions


Output:

Job: https://platform.classiq.io/jobs/9a35b258-2017-468c-a97e-b99865d1b90c
  Submitting job to simulator


Output:

running Grover with 2 repetitions

Output:


Job: https://platform.classiq.io/jobs/2f8e3d9b-e50d-41d4-997b-ff15918eb503

Output:

Success! a solution was found with probability larger than 0.45, using 2 repetitions


We can print the five most probable solutions:

n_solutions = 5
df = res_3_sat_large
df_new = df.head(n_solutions).copy()
first_col = df.columns[0]
df_new["f(x)"] = df_new[first_col].apply(large_3sat_formula)
df_new

	x	counts	probability	bitstring	f(x)
0	[0, 0, 0, 1]	481	0.481	1000	1
1	[0, 0, 1, 1]	467	0.467	1100	1
2	[1, 1, 1, 1]	7	0.007	1111	0
3	[0, 0, 1, 0]	5	0.005	0100	0
4	[0, 1, 1, 0]	5	0.005	0110	0

We can see that the amplitude of the two “marked” solutions is amplified.

Example: Graph Cut Search Problem

The “Maximum Cut Problem” (MaxCut) [3] is an example of a combinatorial optimization problem. It refers to finding a partition of a graph into two sets, such that the number of edges between the two sets is the maximum. The MaxCut problem is defined as follows: Given a graph

G=(V,E)

with

|V|=n

nodes and

E

edges, a cut is defined as a partition of the graph into two complementary subsets of nodes. The gaol is to find a cut where the number of edges between the two subsets is the maximum. We can represent a cut, and the number of its connecting edges as follows:

$x\in \{0,1\}^n$ is a binary vector of size $n$ that represents a cut: assigning 0 and 1 to nodes in the first and second subsets, respectively.
$C(x)=\sum_{(i,j)}x_i (1-x_j)+x_j (1-x_i)=\sum_{(i,j)}x_i \oplus x_j$ gives the number of connecting edges for a given cut.

The MaxCut problem cannot be cast directly into a Grover’s search algorithm, as we task to find the maximum of a function, rather than some “marked” solutions. One approach is to apply Grover’s algorithms for formulas of the form

C(x)\geq T

, for some fixed value of

T

: We initialize a threshold

T

, then run Grover’s algorithm with an oracle that marks cuts with

C(x)\geq T

to amplify promising candidates. If a better cut is found, we update

T

and repeat until no improvement is likely (or a preset budget is reached). In this notebook we show a solution for a single instance of this procedure, i.e., taking one example with some value for

T

. We initiate a specific graph whose maximum cut is 5:

import networkx as nx

# Create graph
G = nx.Graph()
G.add_nodes_from([0, 1, 2, 3, 4])
G.add_edges_from([(0, 1), (0, 2), (1, 2), (1, 3), (2, 4), (3, 4)])
pos = nx.planar_layout(G)

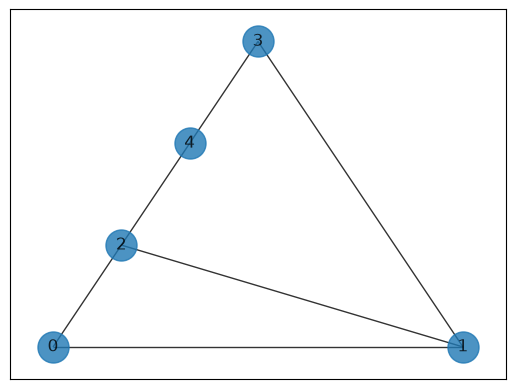

nx.draw_networkx(G, pos=pos, with_labels=True, alpha=0.8, node_size=500)

Constructing a Grover’s search algorithm is done in similar to the 3-SAT examples, we only require to define a predicate formula. In this example we set the cut size (the value of

T

) to

CUT_SIZE = 4

# cut formulas
def is_cross_cut_edge(x1: int, x2: int) -> int:
    return x1 ^ x2

def cut(x):
    return sum(is_cross_cut_edge(x[node1], x[node2]) for (node1, node2) in G.edges)

def cut_predicate(cut_size, x):
    return cut(x) >= cut_size

@qperm
def cut_oracle(cut_size: CInt, nodes: Const[QArray], res: QBit):
    res ^= cut_predicate(cut_size, nodes)


@qfunc
def main(r: CInt, nodes: Output[QArray[len(G.nodes)]]):
    allocate(nodes)
    hadamard_transform(nodes)

    power(
        r,
        lambda: grover_operator(
            lambda vars: phase_oracle(
                lambda vars, res: cut_oracle(CUT_SIZE, vars, res), vars
            ),
            hadamard_transform,
            nodes,
        ),
    )


qprog_max_cut = synthesize(
    main, constraints=Constraints(optimization_parameter="width")
)
show(qprog_max_cut)
one_rep_qprog_max_cut = assign_parameters(qprog_max_cut, {"r": 1})

Output:

Quantum program link: https://platform.classiq.io/circuit/3HroStpPFxlOReIJvl3eoX18Ets


# In this example we reduce the threshold, since typically, more than one solution is expected
res_max_cut, r = repeat_grover_until_success(
    qprog_max_cut, lambda nodes: cut_predicate(CUT_SIZE, nodes), threshold=0.1
)

Output:


Submitting job to simulator

Output:

running Grover with 1 repetitions

Output:


Job: https://platform.classiq.io/jobs/189ebb49-7fbb-4731-a4ac-03c3e52326f8

Output:

Success! a solution was found with probability larger than 0.1, using 1 repetitions

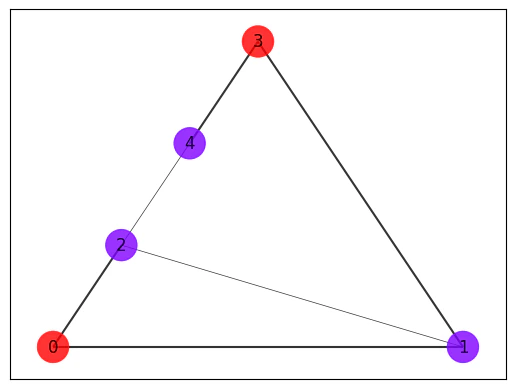

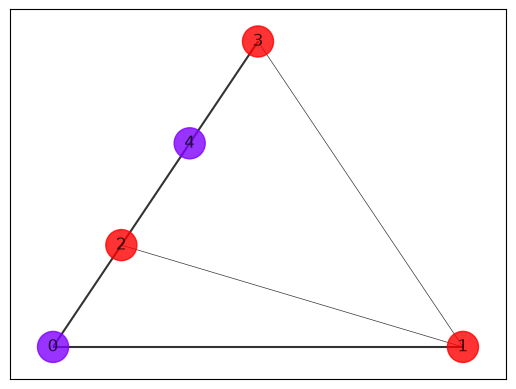

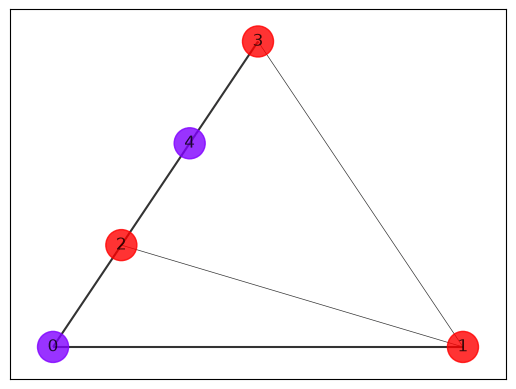

Upon printing the result, we see that our execution of Grover’s algorithm successfully found the satisfying assignments for the input formula:

n_solutions = 32
df = res_max_cut
df_new = df.head(n_solutions).copy()
first_col = df.columns[0]
df_new["f(x)"] = df_new[first_col].apply(lambda x: cut_predicate(CUT_SIZE, x))
df_new

	nodes	counts	probability	bitstring	f(x)
0	[0, 1, 1, 1, 0]	110	0.110	01110	True
1	[0, 0, 1, 1, 0]	107	0.107	01100	True
2	[1, 0, 1, 1, 0]	99	0.099	01101	True
3	[0, 1, 0, 0, 1]	98	0.098	10010	True
4	[0, 1, 1, 0, 0]	97	0.097	00110	True
5	[0, 1, 1, 0, 1]	97	0.097	10110	True
6	[1, 1, 0, 0, 1]	96	0.096	10011	True
7	[1, 0, 0, 0, 1]	91	0.091	10001	True
8	[1, 0, 0, 1, 1]	87	0.087	11001	True
9	[1, 0, 0, 1, 0]	77	0.077	01001	True
10	[0, 1, 0, 0, 0]	4	0.004	00010	False
11	[0, 0, 1, 0, 1]	4	0.004	10100	False
12	[1, 1, 1, 1, 1]	4	0.004	11111	False
13	[1, 1, 1, 0, 0]	3	0.003	00111	False
14	[1, 1, 0, 1, 0]	3	0.003	01011	False
15	[0, 1, 0, 1, 1]	3	0.003	11010	False
16	[1, 0, 0, 0, 0]	2	0.002	00001	False
17	[1, 1, 0, 0, 0]	2	0.002	00011	False
18	[0, 0, 1, 0, 0]	2	0.002	00100	False
19	[0, 0, 0, 1, 0]	2	0.002	01000	False
20	[1, 1, 1, 1, 0]	2	0.002	01111	False
21	[1, 0, 1, 1, 1]	2	0.002	11101	False
22	[0, 1, 1, 1, 1]	2	0.002	11110	False
23	[0, 0, 0, 0, 0]	1	0.001	00000	False
24	[1, 0, 1, 0, 0]	1	0.001	00101	False
25	[1, 0, 1, 0, 1]	1	0.001	10101	False
26	[1, 1, 1, 0, 1]	1	0.001	10111	False
27	[0, 0, 0, 1, 1]	1	0.001	11000	False
28	[1, 1, 0, 1, 1]	1	0.001	11011	False

The satisfying assignments are ~100 times more probable than the unsatisfying assignments. We print the corresponding graph for one of them:

result_parsed = df_new["nodes"][0]

import matplotlib.pyplot as plt

edge_widths = [
    is_cross_cut_edge(
        int(result_parsed[i]),
        int(result_parsed[j]),
    )
    + 0.5
    for i, j in G.edges
]
node_colors = [int(c) for c in result_parsed]
nx.draw_networkx(
    G,
    pos=pos,
    with_labels=True,
    alpha=0.8,
    node_size=500,
    node_color=node_colors,
    width=edge_widths,
    cmap=plt.cm.rainbow,
)

References

[1]: L. K. Grover, “A fast quantum mechanical algorithm for database search”, Proceedings of the 28th Annual ACM Symposium on Theory of Computing (STOC ‘96), pp. 212-219, 1996. [2]: The 3-SAT problem [3]: The Maximum Cut problem

Algorithms

Applications

Tutorials

Grover's Search Algorithm

View on GitHub

Classical Postprocess Function

Example: 3-SAT Problem

Small 3-SAT Formula

Large 3-SAT Formula

Example: Graph Cut Search Problem

References

View on GitHub

​Classical Postprocess Function

​Example: 3-SAT Problem

​

​Small 3-SAT Formula

​

​Large 3-SAT Formula

​Example: Graph Cut Search Problem

​References

Classical Postprocess Function

Example: 3-SAT Problem

Small 3-SAT Formula

Large 3-SAT Formula

Example: Graph Cut Search Problem

References
